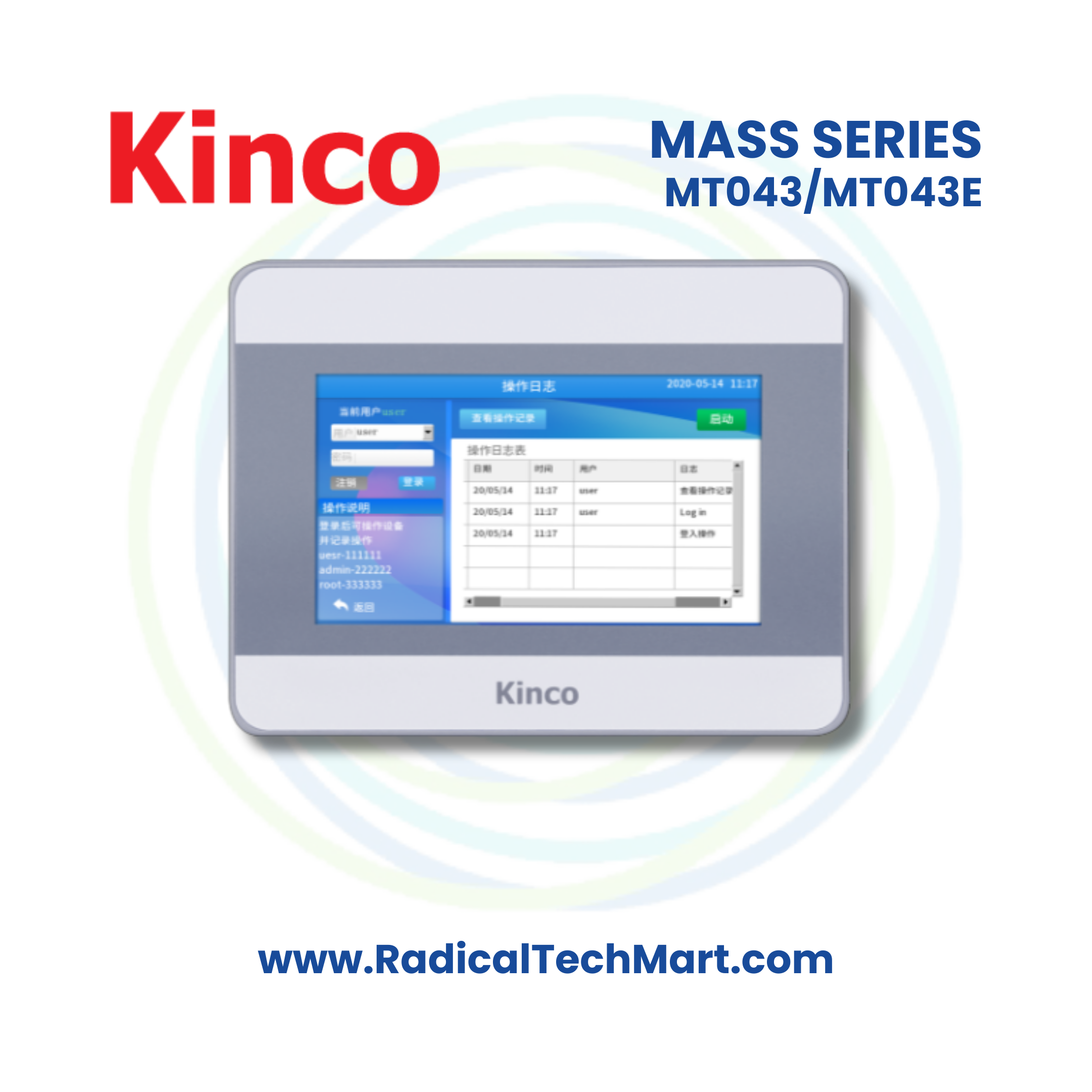

MT Series 4.3" HMI
- 4.3",HD display 256K color;
- The new generation of Kinco Dtools configuration software is powerful and easy to use;
- ARM RISC 32Bit 792MHz;
- Installation buckle seal design, waterproof, oil proof.
Non-returnable
Out of stock Out of stock
₹0.00 ₹0.00
₹0.00 ₹0.00
₹0.00 ₹0.00
Model Number
Select Model Number
Customize
Add Note
Add Note
Share :
Product Details
Performance Specification
- Display Size: 4.3" TFT
- Resolution: 480 × 272 px
- Display Color: 256K colors
- Visual Angle: 70/70/50/70 (left/right/up/down)
- Backlight: LED
- Luminance: 450 cd/m²
- LCD Life: 50,000 hours
- Touch Panel: 4-wire precision resistance network (surface hardness: 4H)
- CPU: ARM RISC 32-bit, 792 MHz
- Memory: 128 MB Flash Memory + 64 MB Memory
- RTC: Built-in

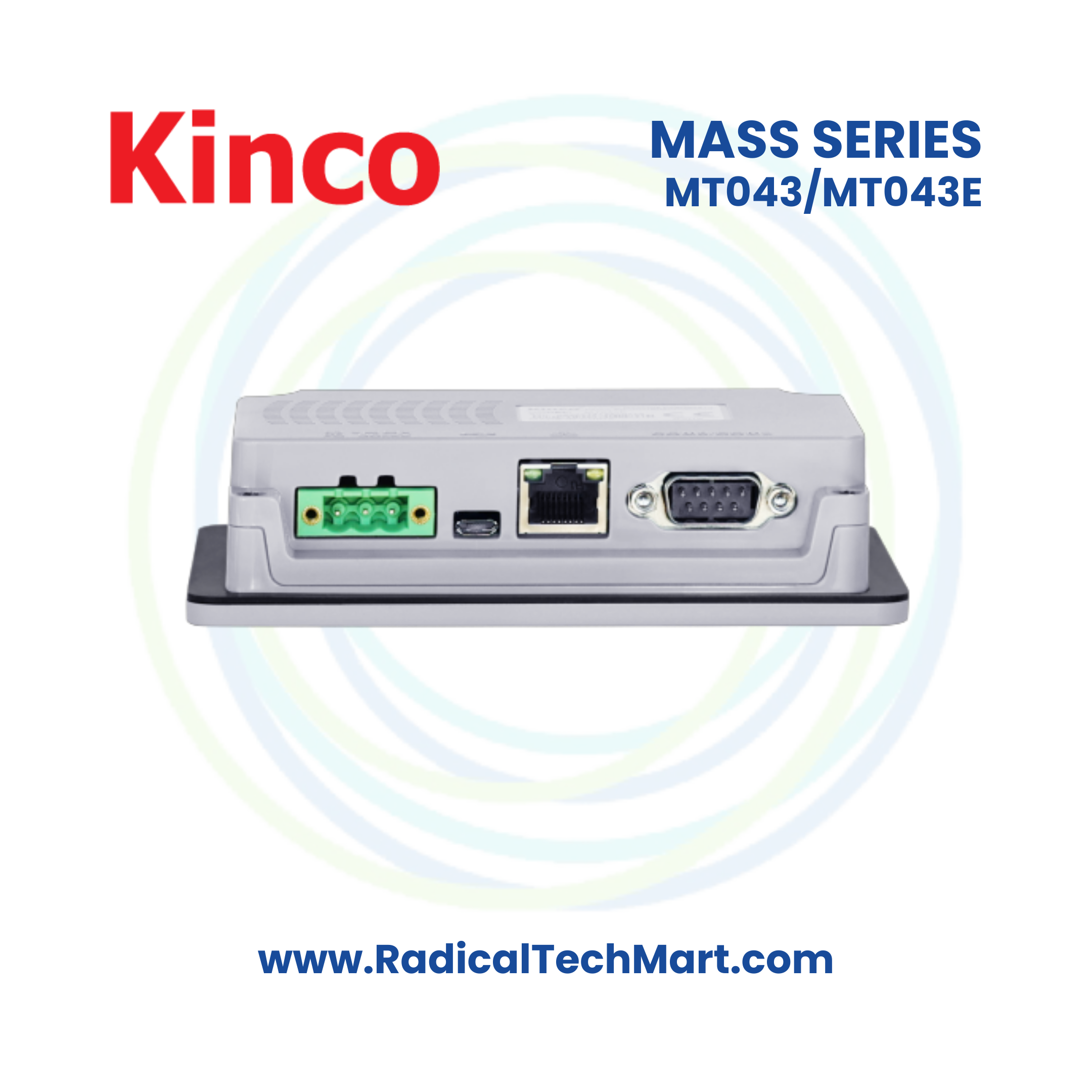

- External Storage: 1 USB Host
- Printer Port: USB Host / Serial port
- Ethernet: 10/100M adaptable Ethernet interface
- Program Download: USB Slave (Micro USB) / Serial port
- Communication:
- COM0: RS232 / RS485 / RS422
- COM2: RS232

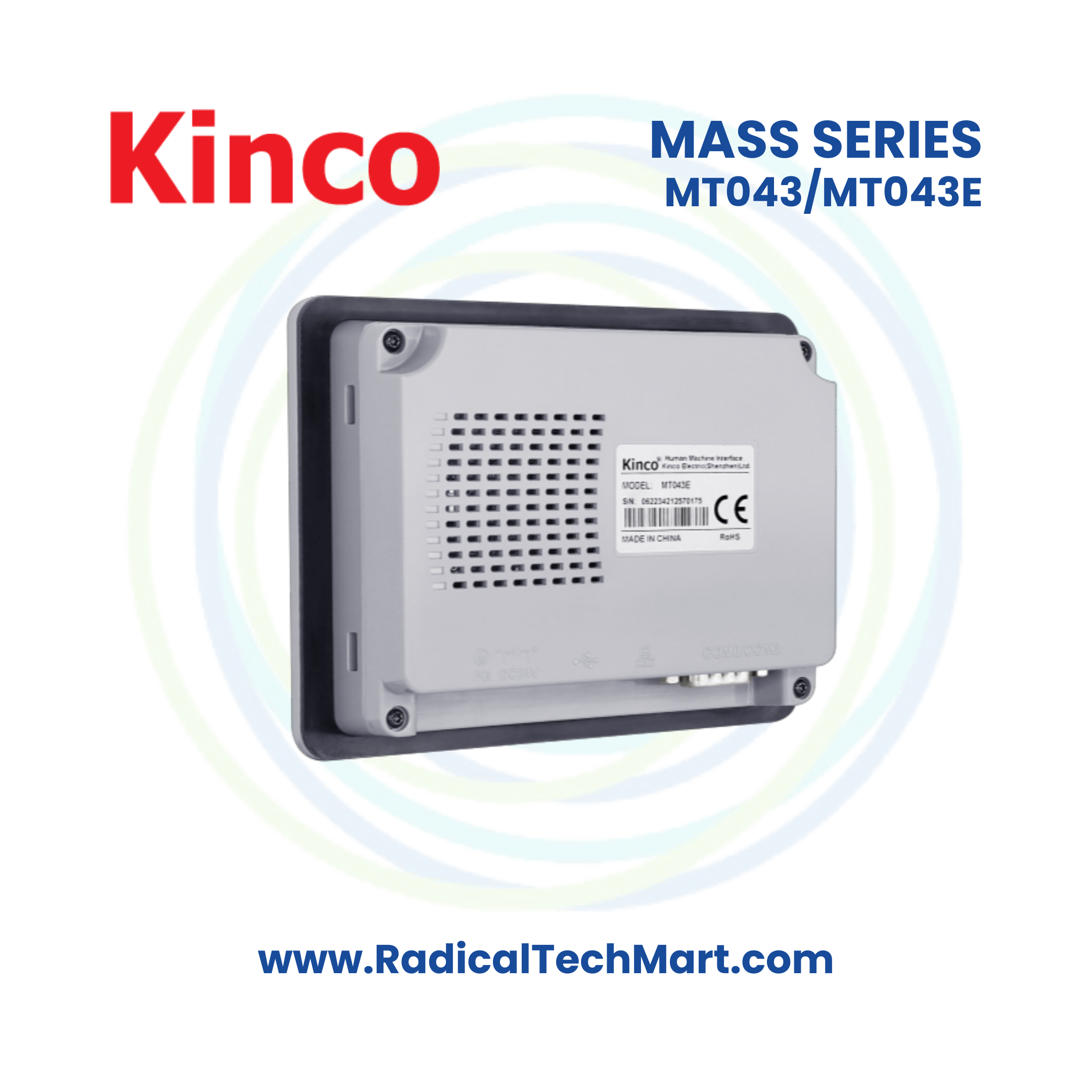

Structure Specification
- Shell Material: Engineering plastics
- Shape Size: 132 × 102 × 33 mm
- Cutout Size: 119 × 93 mm
- Weight: 0.21 Kg
Environmental Specification
- Working Temperature: 0~50°C
- Working Humidity: 10~90% RH (non-condensing)
- Storage Temperature: -20~60°C
- Storage Humidity: 10~90% RH (non-condensing)
- Sine Vibration Test: 10~500Hz, 30 m/s², X, Y, Z direction/hour
- Cooling Mode: Natural air cooling
Electrical Specification
- Input Range: DC 10.8V~DC 28V
- Power: 2W @ DC 24V
- Allowable Loss of Power: < 3ms
- Insulation Resistance: Greater than 50MΩ @ 500V DC
- Hi-pot Test: 500V AC for 1 minute
Product Certification
- Panel Protection Grade: Conforming to IP65 certification (4208-93)
- CE Certification:
- EN61000-6-4:2007+A1:2011
- EN61000-6-2:2005
Software
- Configuration Software: Kinco DTools V4.1 and above version
