Multispan AV-A Series Digital Ampere Meter | Built-in 30A CT | LED Display | 230V AC

🔹 Product Summary:

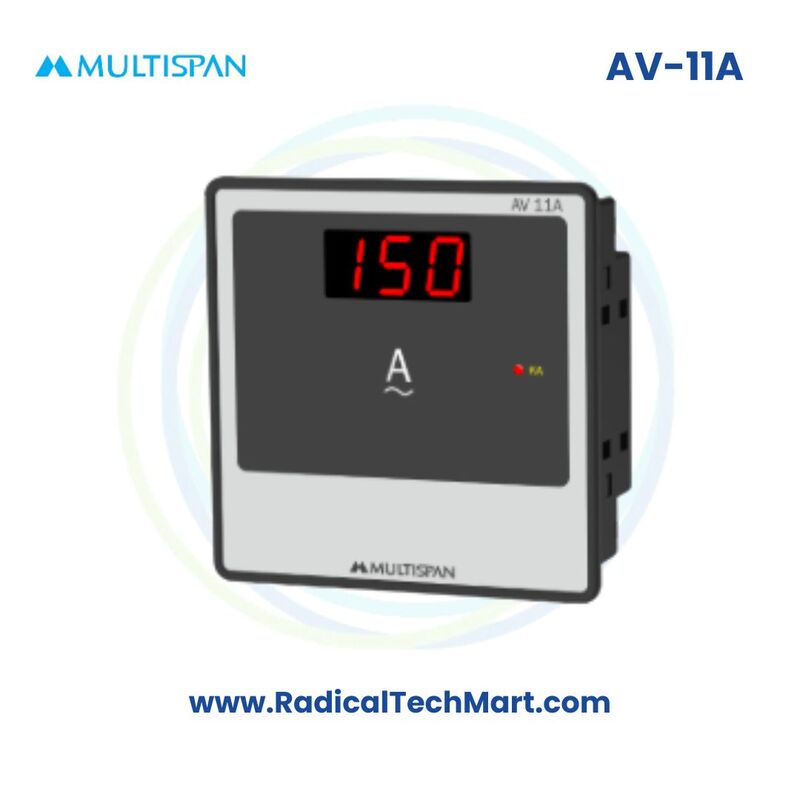

The Multispan AV-A Series — including AV-11A, AV-21A, AV-31A, and AV-41A — is a compact range of digital single-phase ampere meters designed to directly measure AC current up to 30A without external CT wiring. Featuring a clear 3-digit LED display, Class 0.5 accuracy, and a rugged enclosure, these meters offer seamless integration into modern control panels across industrial, commercial, and utility applications.

🔹 Key Features:

• Built-in 30A Current Transformer (CT) — no external CT needed

• Display: 3-digit 7-segment RED LED, 0.56” height

• Accuracy: Class 0.5

• Input Voltage: 230V AC ±10%, 50/60 Hz

• Burden: < 0.2 VA

• Operating Conditions:

  • Temperature: 0–55°C

  • Humidity: ≤ 95% RH non-condensing

• Front Panel Protection: IP65 (on request)

• Enclosure Material: ABS body with PC front

• Mounting: Panel mount with rear clamp

• Panel Sizes:

  • AV-11A: 96 × 96 × 63 mm (Cutout: 92 × 92 mm)

  • AV-21A: 75 × 75 × 36 mm (Cutout: 68 × 68 mm)

  • AV-31A: 48 × 96 × 46 mm (Cutout: 45 × 92 mm)

  • AV-41A: 52 × 52 × 45 mm (Cutout: 45 × 45 mm)

🔹 Applications:

• Generator sets & motor control panels

• HVAC and UPS systems

• Load current monitoring

• Transformer control panels

• Industrial automation systems

• OEM panel manufacturing

🔹 Product Benefits:

• No external CT required — simple wiring

• Space-saving compact design

• IP65 front (on request) ensures installation durability

• Ideal for real-time AC current display up to 30A

• Quick installation with panel cutout flexibility

• Reliable accuracy with minimal power consumption

❓ FAQs:

Q1. Does this meter need an external CT?
No, it includes a built-in 30A CT.

Q2. Can it measure above 30A?
No, it’s designed for direct measurement up to 30A only.

Q3. What is the main difference among AV-11A, 21A, 31A, and 41A?
The only difference is physical size and panel cutout — the electrical features are identical.

Q4. Is it compatible with standard 230V panels?
Yes, it operates on 230V AC ±10% and fits most control systems.

Q5. Does it support IP65 protection?
Yes, IP65 front protection is available upon request.
