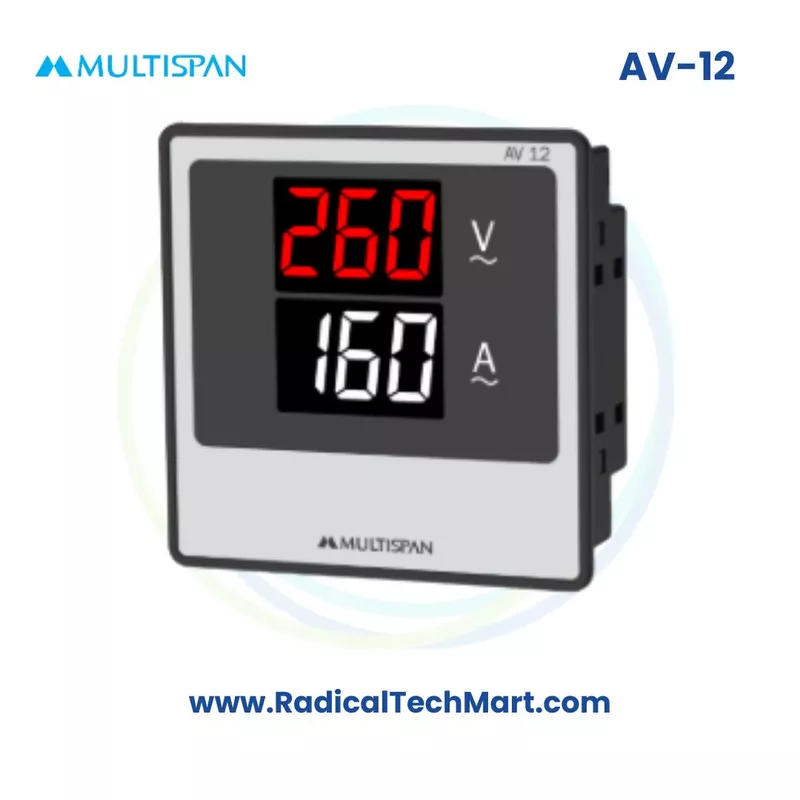

The Multispan AV Series AV-12, AV-22 and AV-33 are compact dual-display volt–amp meters for single-phase panels. With direct 30A AC current input (built-in CT) and 30–500V AC voltage measurement, they provide real-time monitoring of load voltage and current without external CTs, making them ideal for OEM and industrial control panels.
Key Features
Direct 30A Monitoring: Built-in CT for 30.0A AC direct input, no external CT required
Wide Voltage Range: Measures 30–500V AC for standard single-phase systems
Dual Display: Separate Amp and Volt red LED displays for simultaneous monitoring
High Accuracy:Class 0.5 measurement accuracy
Universal Auxiliary Supply: Operates on 100–270V AC/DC, 50/60 Hz
Low VA Burden: Power consumption < 3VA
Space-Saving Design: Replaces separate voltmeter and ammeter in compact panels
Multiple Panel Sizes: Models AV-12, AV-22 and AV-33 cover common cutouts
Rugged Enclosure: PC front with ABS body, optional IP65 front protection
Industrial Rated: Operates from 0–55°C, up to 95% RH (non-condensing)
Technical Specifications (Table)
| Parameter | Specification |
|---|---|
| Series Models | AV-12, AV-22, AV-33 |
| Measurement Type | AC Voltage & AC Current (dual display) |
| Current Input | 30.0A AC direct (built-in CT) |
| Voltage Range | 30–500V AC |
| Display | Dual red LED (Amp + Volt), 3-digit/4-digit |
| Accuracy Class | Class 0.5 |
| Auxiliary Supply | 100–270V AC/DC, 50/60 Hz |
| Power Consumption | < 3VA |
| Operating Temperature | 0–55°C |
| Humidity | Up to 95% RH, non-condensing |
| Front Protection | Optional IP65 |
| Enclosure | PC front with ABS body |
| Mounting | Panel mount with rear clamps |
| AV-12 Size | 96 × 96 mm (Cutout: 92 × 92 mm) |
| AV-22 Size | 72 × 72 mm (Cutout: 68 × 68 mm) |
| AV-33 Size | 48 × 96 mm (Cutout: 45 × 92 mm) |
Applications
Genset, motor and HVAC control panels
Machine and OEM control panels
Power distribution and feeder boards
Small MCC and pump starter panels
Educational/training kits for electrical labs
What’s in the Box?
1 × Multispan AV Series Dual Volt–Amp Meter (AV-12 / AV-22 / AV-33 as ordered)
Panel mounting clamps/brackets
Basic wiring and installation leaflet
Warranty/product information
FAQ
Q1. Does this meter require an external CT for current measurement?
No. It has a built-in 30A CT for direct current input up to 30.0A AC.
Q2. Can it show voltage and current at the same time?
Yes, it has separate LED displays for ampere and volt, both visible simultaneously.
Q3. What is the supported voltage range?
It measures 30–500V AC, suitable for standard single-phase applications.
Q4. Are there functional differences between AV-12, AV-22, and AV-33?
No. Functions are identical; only panel size and cutout differ to suit various panel layouts.
Q5. Is it suitable for 230V AC control panels?
Yes, it supports 100–270V AC/DC auxiliary and measures 230V AC within the 30–500V range.
Q6. Can it be used in humid industrial environments?
Yes, it operates up to 95% RH (non-condensing); with the optional IP65 front, it is suitable for typical industrial panel rooms.
