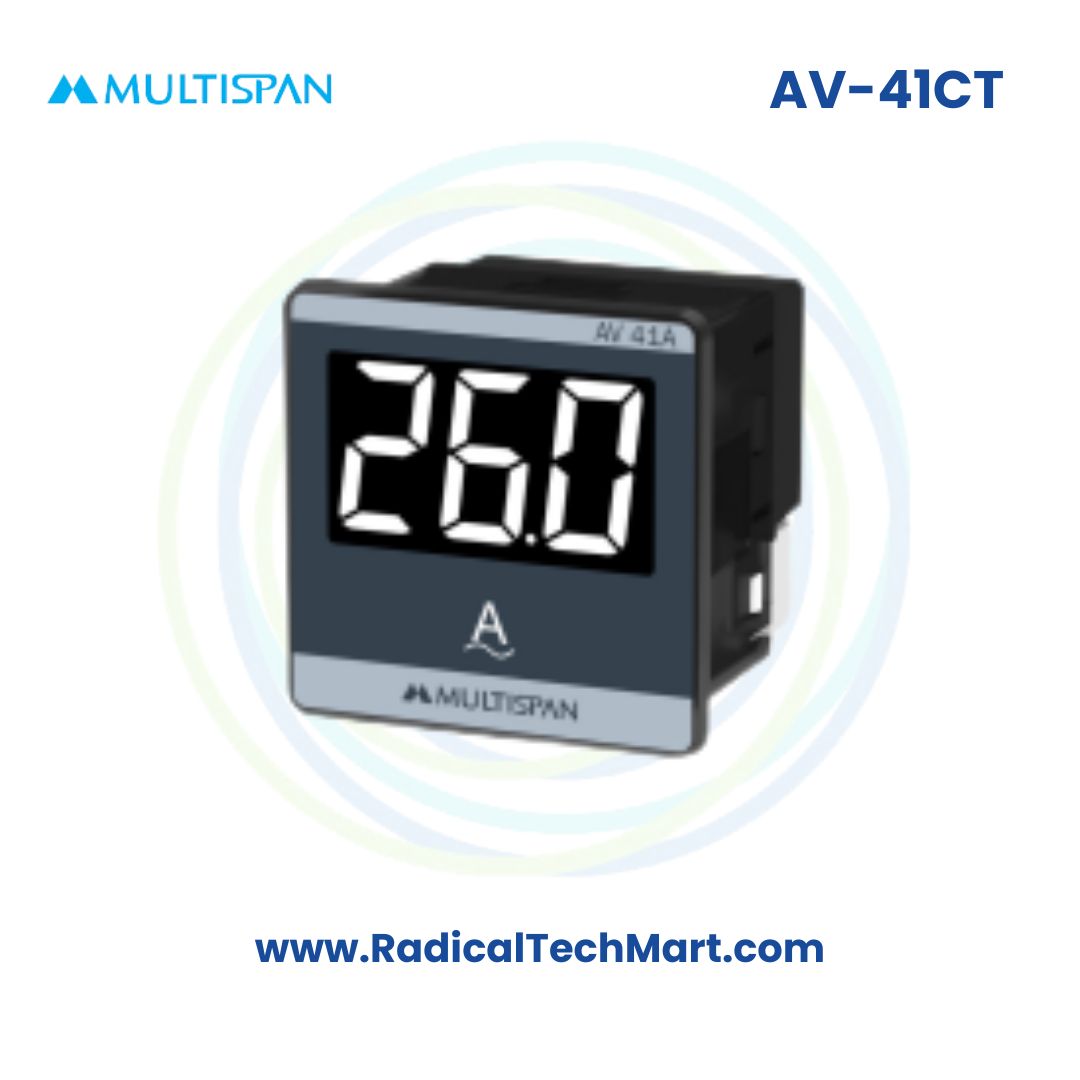

Multispan AV Series Digital Ampere Meter | Programmable CT | Single Phase | Panel Mount

🔹 Product Summary:

The Multispan AV Series (AV-14, AV-24, AV-34) is a compact, precise, and reliable solution for single-phase current monitoring in control panels, distribution boards, and industrial systems. These meters offer programmable CT support (1A/5A secondary, up to 4000A primary), a bright 4-digit LED display, and Class 0.5 accuracy, ensuring excellent visibility and performance in demanding environments. Available in three compact panel sizes, the AV Series is a preferred choice for OEMs and panel builders.

🔹 Key Features:

• Current Range:

  • Direct Input: 0.1A to 5A AC

  • Via CT: Up to 4000A (Primary), 1A/5A (Secondary)

• Display: 4-digit red LED (0.56”)

• Accuracy: Class 0.5

• CT Programming: Easy set via front keys (UP/DOWN)

• Auxiliary Supply: 100–270V AC/DC

• Power Consumption:

  • AV-14 & AV-24: 3VA

  • AV-34: 2VA

• Front Protection: IP65

• Panel Sizes:

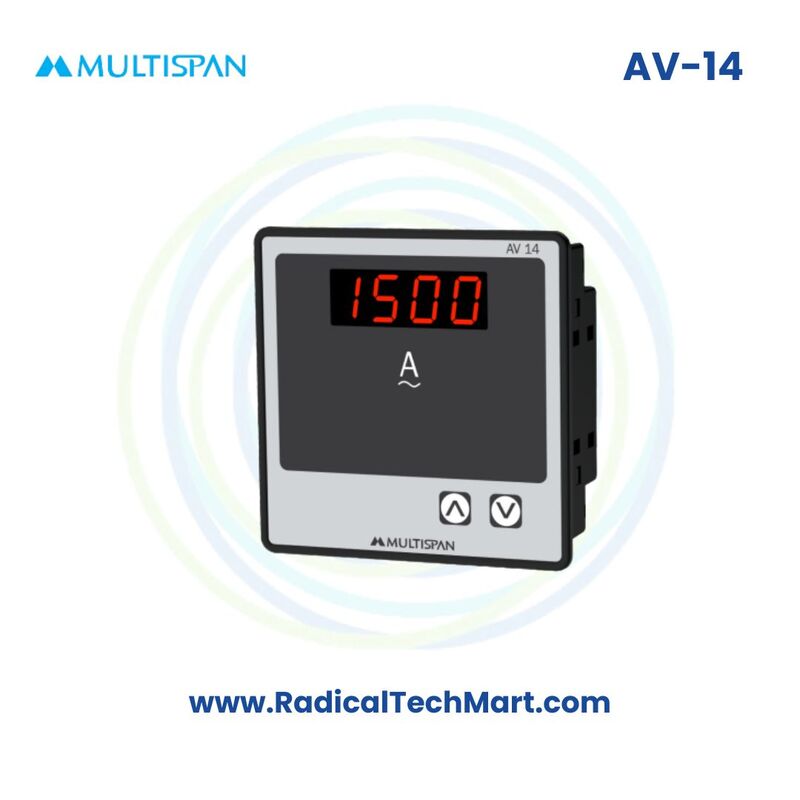

  • AV-14: 101 × 101 × 43 mm (Cutout: 92 × 92 mm)

  • AV-24: 75 × 75 × 36 mm (Cutout: 68 × 68 mm)

  • AV-34: 51.5 × 98 × 26 mm (Cutout: 46 × 92 mm)

• Enclosure: ABS body with PC front

• Mounting: Panel mount with rear clamps

• Operating Conditions: 0–55°C, up to 95% RH

🔹 Applications:

• Control and distribution panels

• Transformers and load centers

• Generator and motor panels

• Electrical training kits and test rigs

• Energy monitoring systems (EMS)

🔹 Product Benefits:

• Wide programmable CT range (up to 4000A)

• Multiple compact sizes for flexible installation

• Highly accurate readings with minimal power consumption

• IP65 protection ensures durability in industrial environments

• Quick setup with keypad CT configuration

• Ideal for OEMs and system integrators

❓ FAQs:

Q1. Does it support both 1A and 5A CTs?
Yes, the meter accepts both 1A and 5A secondary CT inputs.

Q2. How do I program the CT ratio?
Press and hold the UP & DOWN keys for 5 seconds to enter CT programming mode.

Q3. Is it suitable for 230V AC panels?
Yes, it supports 100–270V AC/DC auxiliary supply.

Q4. What's the difference between AV-14, AV-24, and AV-34?
Only the panel cutout and physical dimensions differ — functionality is identical.

Q5. Can this meter retain settings after power failure?
Yes, it retains programmed CT settings even after power loss.
