Multispan BC Series Batch Counter with Totaliser | Dual Display | Relay + Buzzer Output | Panel Mount

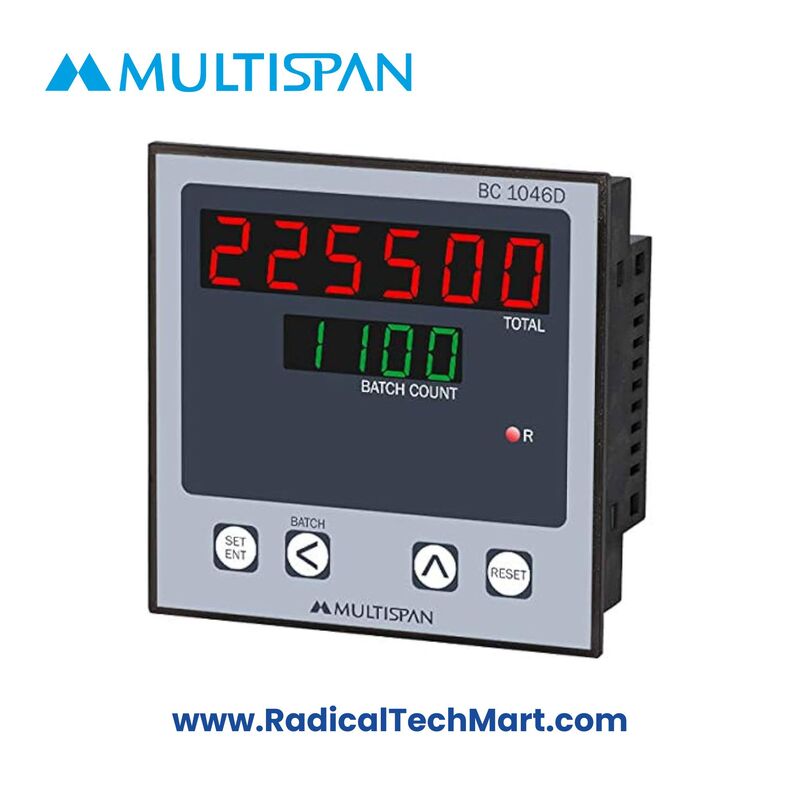

Multispan BC Series Digital Batch Counter – BC-1046D / BC-2046 / BC-445
Compact dual-display digital batch counters with PNP/NPN input, relay + buzzer output, high-speed counting capability, and non-volatile memory for industrial automation.
The Multispan BC Series—BC-1046D, BC-2046, and BC-445—are advanced digital batch counters designed for industrial automation. With dual LED displays for total and batch counts, selectable PNP/NPN input, high-speed RPM handling, and built-in relay and buzzer outputs, they ensure accurate and efficient counting in production environments.
Key Features
Dual Display System:
6-digit red LED for total count
4-digit green LED for batch count
Input Flexibility: Supports PNP/NPN proximity sensors or micro switches
Integrated Outputs:
Relay output (NO-C-NC, 5A at 230V AC)
Buzzer for batch completion alert
Speed Modes:
SLOW: Up to 500 RPM
MEDIUM: Up to 5000 RPM
FAST: Up to 15000 RPM
Non-Volatile Memory: Retains total count after power loss
Relay ON Time: Adjustable for process control
Wide Power Supply: 100–270V AC
IP65 Front Protection: Suitable for dusty and humid environments
Panel Sizes Available:
BC-1046D: 96 × 96 mm
BC-2046: 72 × 72 mm
BC-445: 48 × 48 mm
Technical Specifications (Table)
| Parameter | Specification |
|---|---|
| Models | BC-1046D, BC-2046, BC-445 |
| Input Types | PNP/NPN Proximity or Micro Switch |
| Total Display | 6-digit Red LED |
| Batch Display | 4-digit Green LED |
| Output | Relay NO-C-NC (5A @ 230V AC) + Buzzer |
| Speed Modes | Slow (500 RPM), Medium (5000 RPM), Fast (15000 RPM) |
| Memory | Non-volatile (retains total count) |
| Supply Voltage | 100–270V AC, 50/60 Hz |
| Protection | IP65 (Front) |
| Panel Size (mm) | 96x96 / 72x72 / 48x48 |
| Mounting | Panel Mount |
| Relay ON Time | Adjustable |
Applications
Packaging and filling machines
Textile winding/cutting machinery
Printing & labeling automation
Conveyor batch operations
Industrial production line monitoring
OEM machinery with counting functions
What’s in the Box?
1 × Multispan BC Series Batch Counter (model selected)
Panel mounting clamps
Wiring and configuration guide
Warranty card
FAQ
Q1. What sensors can I use with the BC Series?
It supports PNP/NPN proximity sensors and micro switches, selectable from the menu.
Q2. What is the purpose of the dual display?
The upper display shows the total count, while the lower display shows the current batch count.
Q3. Can the relay output be used to stop a machine on batch completion?
Yes, the relay and buzzer activate when the batch limit is reached.
Q4. Does the counter support high-speed operations?
Yes, motors up to 15,000 RPM are available for fast applications.
Q5. Will it remember the count after a power cut?
Yes, it includes non-volatile memory that retains the total count.
