Multispan CYL-22U Cyclic Timer | 12V–240V AC/DC | 0.1 Sec to 10 Hr | DIN Rail
Multispan CYL-22U Cyclic ON/OFF Timer – Universal Supply, 0.1 sec to 10 hr
A DIN-rail programmable cyclic timer with universal 12–240V AC/DC supply, adjustable ON/OFF durations, and dual C/O relay output for automation and repetitive switching applications.
Customize
Share :

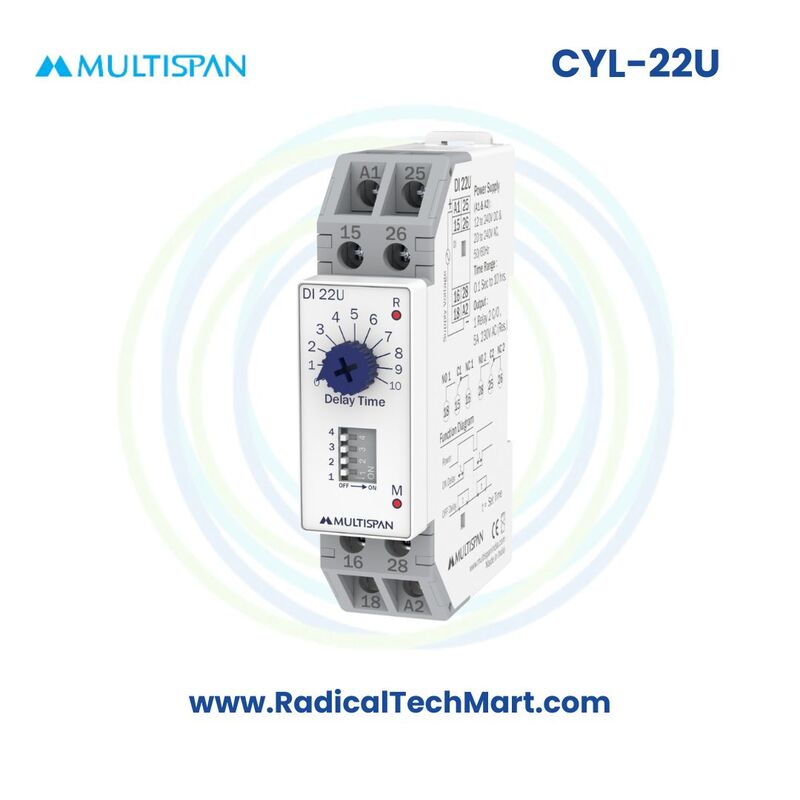

The Multispan CYL-22U is a compact cyclic ON/OFF timer designed for repetitive automation tasks such as pump cycling, motor control, lighting automation, dosing systems, and relay-based logic operations. With an ultra-wide operating voltage range (12V–240V AC/DC), it provides flexible timing control from 0.1 seconds to 10 hours through front-panel knobs and DIP-switch configuration.
Key Features
Universal Power Input: Works with 12–240V DC & 20–240V AC
Wide Time Range: Adjustable from 0.1 sec to 10 hours
Dual Mode Operation:
Cyclic ON (starts ON)
Cyclic OFF (starts OFF)
Timing Controls:
ON-time knob
OFF-time knob
DIP switches for range and mode
Relay Output: 1 Relay, 2 C/O contacts, 5A at 230V AC
LED Indications: Power ON & Relay status
Mounting: 35mm DIN Rail
Compact ABS Enclosure
Dimensions: 90 × 47 × 66.35 mm
Technical Specifications (Table)
| Parameter | Specification |
|---|---|
| Model | Multispan CYL-22U |
| Power Supply | 12–240V DC & 20–240V AC |
| Timing Range | 0.1 sec to 10 hrs (DIP selectable) |
| Output | 1 Relay, 2 C/O |
| Contact Rating | 5A at 230V AC resistive |
| Modes | Cyclic ON / Cyclic OFF |
| Controls | ON-time knob, OFF-time knob, DIP switch |
| Indicators | Power LED, Relay LED |
| Mounting | DIN rail (35mm) |
| Enclosure | ABS body |
| Dimensions | 90 × 47 × 66.35 mm |
| Frequency | 50/60 Hz |
Applications
Industrial automation sequences
Pump cycling & alternation
Lighting control and timed switching
Motor & compressor interval start/stop
Irrigation and dosing systems
Packaging machinery
Repetitive ON/OFF relay operations
What’s in the Box?
1 × Multispan CYL-22U Cyclic Timer
DIN rail mounting clip (integrated)
Instruction sheet
Warranty card
FAQ
Q1. How do I select the time range?
Using the built-in DIP switch, then use the ON and OFF knobs to set durations.
Q2. Can the timer start in OFF mode first?
Yes, selecting Cyclic OFF mode via DIP switch makes the cycle start with OFF.
Q3. What type of output does it provide?
A 2 changeover (2C/O) relay rated at 5A, 230V AC.
Q4. Does CYL-22U support both AC and DC power?
Yes, the universal supply supports 12–240V DC and 20–240V AC.
Q5. Is DIN rail mounting supported?
Yes, it fits standard 35 mm DIN rail systems.
