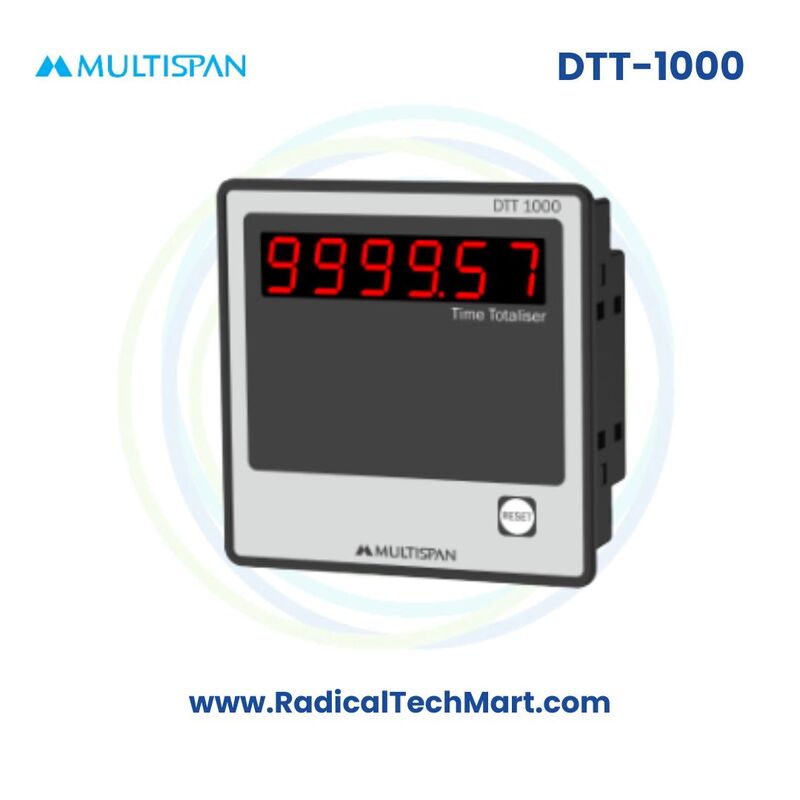

Multispan DTT Series Time Totalizers – Digital Hour Meters (DTT-1000 / 2000 / 3000 / 5000 / 56G)
A compact digital hour meter series with a 6-digit LED display, 230V enable input, and multiple panel sizes for precise machine runtime monitoring and maintenance scheduling.
The Multispan DTT Series is a range of compact and reliable digital time totalizers designed for measuring machine operating hours with high accuracy. Displaying time in HH.MM.SS format, these hour meters support a 230V AC enable input and are available in multiple panel sizes to suit diverse industrial applications.
Key Features
Wide Time Range: 0–9999 hours, 59 minutes
6-Digit LED Display: Bright, clear 7-segment red LED
Display Format: HH.MM.SS for precise runtime analysis
Input Type: 230V AC enable pulse (factory set)
Power Supply: 230V AC, 50/60 Hz
Multiple Panel Sizes: 96×96, 72×72, 48×96, 36×72, 36×62 mm
Non-Resettable: Ensures secure runtime logging for audits & maintenance
Panel Mounting: Clamp-type for easy installation
Industrial Durability: Stable performance in automation environments
Technical Specifications (Table)
| Parameter | Specification |
|---|---|
| Series Models | DTT-1000, DTT-2000, DTT-3000, DTT-5000, DTT-56G |
| Time Range | 0–9999 hours, 59 minutes |
| Display Format | HH.MM.SS (Hr:Min:Sec) |
| Display Type | 6-digit, 7-segment red LED |
| Input Type | 230V AC enable pulse |
| Power Supply | 230V AC, 50/60 Hz |
| Mounting | Panel mount, clamp type |
| Models & Sizes | 1000: 96×96 mm / 2000: 72×72 mm / 3000: 48×96 mm / 5000: 36×72 mm / 56G: 36×62 mm |
| Reset | Not available (default non-resettable) |
| Applications | Runtime logging, maintenance scheduling, machine monitoring |
Applications
Machine runtime monitoring
Generator/Compressor usage logging
Preventive maintenance planning
Shift-time tracking
Automation panel runtime indication
OEM machinery operation counters
What’s in the Box?
1 × Multispan DTT Series Time Totalizer (Model as ordered)
Panel mounting clamps
Instruction leaflet
Warranty/support card
FAQ
Q1. What is the input type for the DTT Series?
They operate on a 230V AC enable pulse to count runtime.
Q2. What is the display range?
It can display up to 9999 hours and 59 minutes.
Q3. Are these models resettable?
No, the DTT Series is generally non-resettable to ensure data integrity.
Q4. Do all models use the same power supply?
Yes, all operate on 230V AC.
Q5. What is the difference between the models?
Only panel size and depth differ—functionality is the same.
Q6. Can they be used for maintenance scheduling?
Yes, they are widely used for maintenance cycle tracking and machine usage audits.
