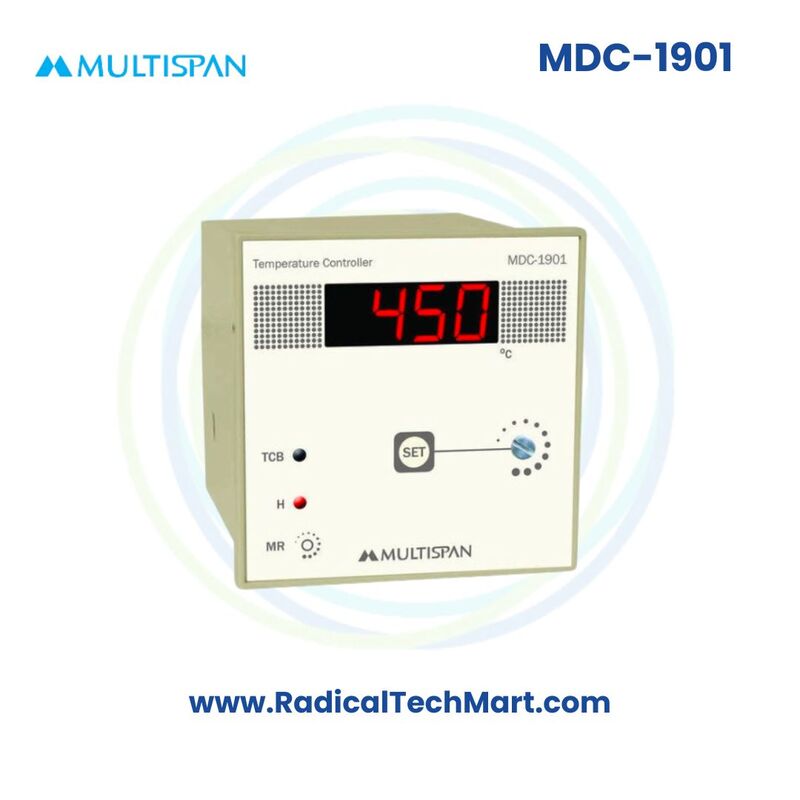

Multispan MDC Series Temperature Controller – MDC-1901 / MDC-2901, Push-to-Set, ON-OFF/TP
User-friendly push-to-set temperature controllers with factory-set J/K/PT-100 input, ON-OFF or TP control, 1 relay output, and compact 96×96 or 72×72 panel mounting options for industrial heating applications.
Customize
Share :
The Multispan MDC Series (MDC-1901 & MDC-2901) offers simple and reliable temperature control for industrial and OEM applications. Designed with a push-to-set interface, factory-set sensor compatibility, and ON-OFF/Time Proportional (TP) control, these controllers are ideal for basic heating or cooling operations in compact or standard panel cutouts.
Key Features
Factory-set input compatibility: J/K thermocouples or PT-100 RTD
Control modes: ON-OFF or Time Proportional (TP)
One relay output (potential-free) for direct control
Operating voltage: 230V AC
Push-to-set design for quick, intuitive value setting
Two available panel sizes:
MDC-1901: 96 × 96 mm
MDC-2901: 72 × 72 mm
Compact enclosure ideal for OEM applications
Low power consumption design
Durable construction for continuous industrial duty
Technical Specifications (Table)
| Parameter | MDC-1901 | MDC-2901 |
|---|---|---|
| Input Type | J/K Thermocouple or PT-100 RTD (factory set) | Same |
| Control Modes | ON-OFF or TP | ON-OFF or TP |
| Output | 1 Relay (potential-free) | 1 Relay (potential-free) |
| Power Supply | 230V AC | 230V AC |
| Panel Size | 96 × 96 × 100 mm | 72 × 72 × 120 mm |
| Panel Cutout | 92 × 92 mm | 68 × 68 mm |
| Interface | Push-to-set keys | Push-to-set keys |
| Mounting | Panel mount | Panel mount |
| Sensor Resolution | 1°C (TC/RTD, typical) | Same |
| Applications | Heating/cooling | Heating/cooling |
Applications
Industrial packaging machines
Laboratory heating units
Industrial ovens, boilers and furnaces
Temperature monitoring panels
Pharma & food process equipment
OEM machinery requiring simple temperature control
What’s in the Box?
1 × Multispan MDC-1901 or MDC-2901 controller
Panel mounting clamps
Wiring diagram (rear label)
Basic user instruction leaflet
FAQ
Q1. What sensors are supported?
J-type or K-type thermocouples and PT-100 RTD (factory configured).
Q2. What control modes are available?
ON-OFF and Time Proportional (TP), depending on the factory setting.
Q3. How many outputs does the controller have?
It includes 1 relay output for basic heating or cooling control.
Q4. What is the difference between MDC-1901 and MDC-2901?
Only the panel size and depth differ—functionality is identical.
Q5. Is this suitable for heating and cooling?
Yes. The relay can be configured for either heating or cooling actions.
Q6. Does it support PID?
No. The MDC Series supports ON-OFF and TP modes only.
