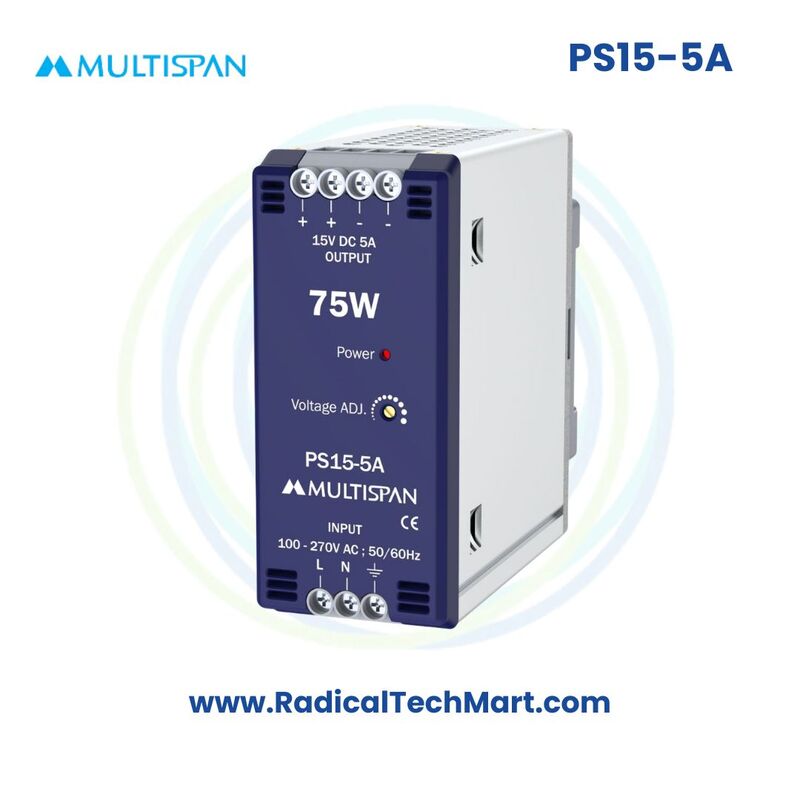

Multispan PS15 Series SMPS | 15V DC | 5A & 8A Output | DIN Rail | 75W Power Supply

Product Summary:

The Multispan PS15 Series offers reliable 15V DC Switch Mode Power Supplies (SMPS) with 5A and 8A output options. Designed for industrial automation, panel integration, and embedded systems, these units provide stable output voltage, compact DIN rail mounting, and critical electrical protections for consistent performance across environments.

🔹 Key Features:

• Input Voltage: 100V–270V AC ±10%

• Output Voltage: 15V DC

• Output Current Options:

  • 5A (PS15-5A)

  • 8A (PS15-8A)

• Output Power: 75W

• Mounting: DIN rail

• Material:

  • PS15-8A: Plastic body

  • PS15-5A: Aluminum enclosure with ABS front

• Cooling: Natural convection (fanless)

• Power Indicator: LED ON display

• Protections:

  • Overload (110–120%, hiccup mode)

  • Short Circuit (auto recovery)

  • Over Voltage (latch-off)

  • Over Temperature (auto reset)

• Ripple & Noise: <1% of Vout

• Line & Load Regulation: ±1%


🔹 Applications:

• Industrial automation panels

• Robotics and servo controllers

• Embedded electronics

• Special purpose machines (SPM)

• Elevator control systems

• Communication modules requiring 15V DC


🔹 Product Benefits:

• Choice of Output Capacity: Select 5A or 8A based on your load requirement

• DIN Rail Mounting: Saves space and simplifies panel layout

• Stabilized 15V Output: Ensures reliable operation of connected devices

• Multiple Built-in Protections: Safeguards against electrical faults

• Quiet Fanless Design: Low maintenance and noise-free

• Wide Input Compatibility: Operates smoothly across fluctuating supply voltages


❓ FAQs:

Q1. What is the difference between PS15-5A and PS15-8A?
PS15-5A provides 5A output with an aluminum body, while PS15-8A offers 8A with a plastic enclosure—both delivering 15V at 75W.

Q2. Can these be used in industrial panels?
Yes, both models are designed for DIN rail installation inside control and automation panels.

Q3. Are there built-in safety features?
Yes, they include overload, short circuit, over-voltage, and over-temperature protections.

Q4. Is 75W sufficient for most industrial needs?
Yes, these models are ideal for powering logic boards, relays, sensors, and embedded controls within a 75W power envelope.

Q5. Are these power supplies silent in operation?
Yes, cooling is handled via natural air convection—no fans, no noise.
