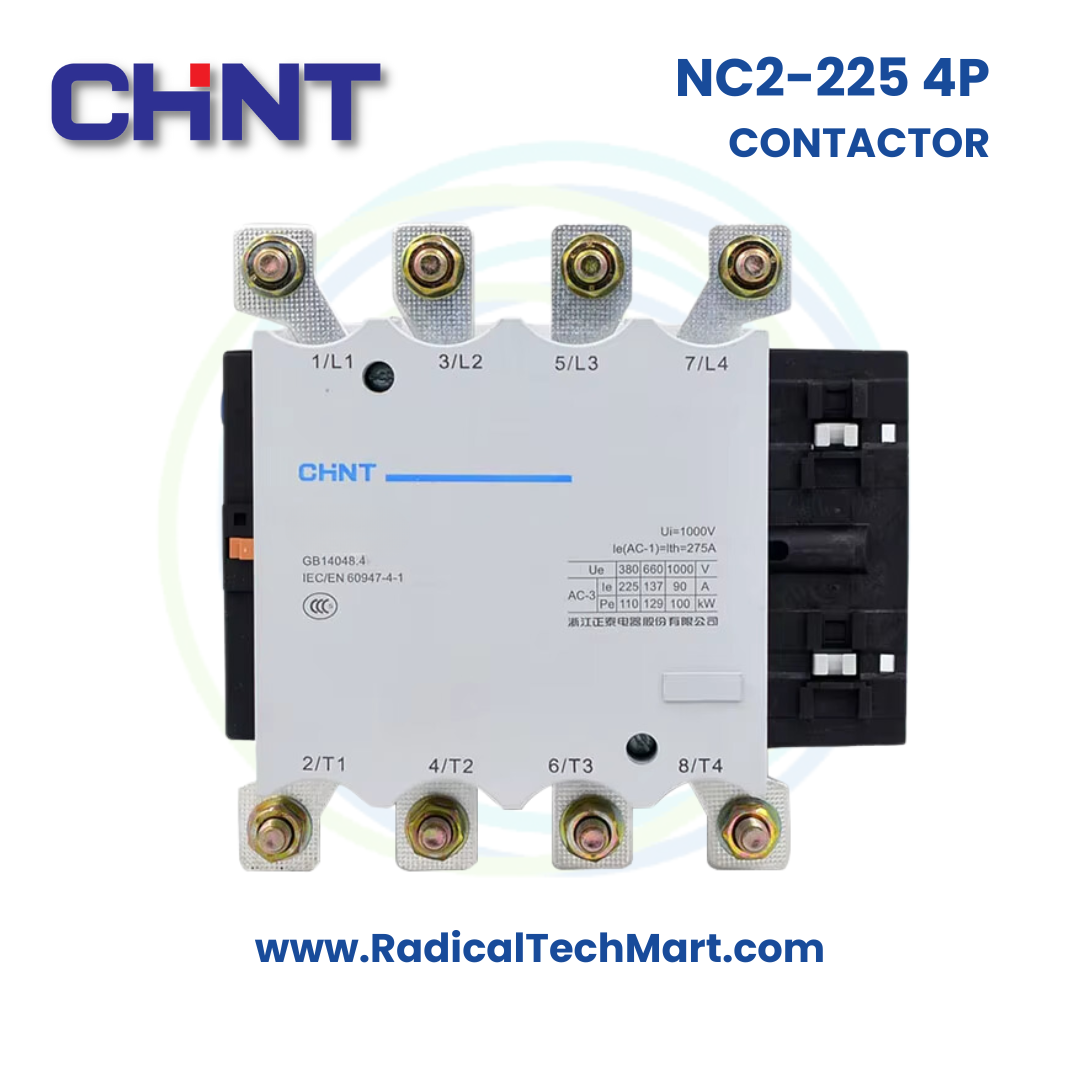

NC2-225 4P Contactor

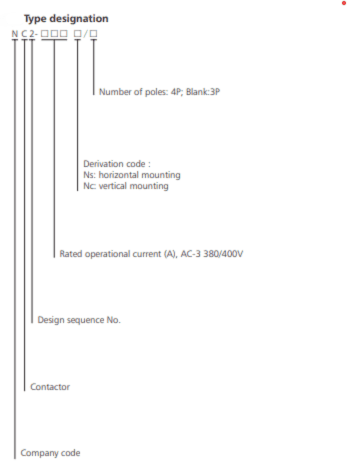

Chint NC2-225/4 4P Power Contactor, 225A, AC Coil
Chint NC2-225/4 is a heavy-duty 4-pole power contactor designed for remote making and breaking of electrical circuits in industrial automation. With a 225A AC-3 (400V) rating, up to 250A in AC-1 duty, and operational voltage up to 690V, it is suitable for reliable switching of motors, heating, and lighting loads in MCCs and control panels.
Key Features (Bulleted)
4-pole (4P) power contactor for three-phase and auxiliary load control
Rated operational current: 225A at AC-3 (400V), up to 250A at AC-1
Rated operational voltage (Ue) up to 690V AC
AC operational coil with multiple voltage options (110–127V, 220–240V, 380–415V AC)
4 NO main contacts for straightforward power circuit wiring
Suitable for motor starting/stopping (AC-3) and non-inductive loads (AC-1)
Long mechanical life: approx. 2–3 million operations
Standard compliance with IEC/EN 60947-4-1
Mounting flexibility: vertical or horizontal, DIN rail or panel mount (±5° inclination tolerance)
Robust design for continuous duty in industrial environments

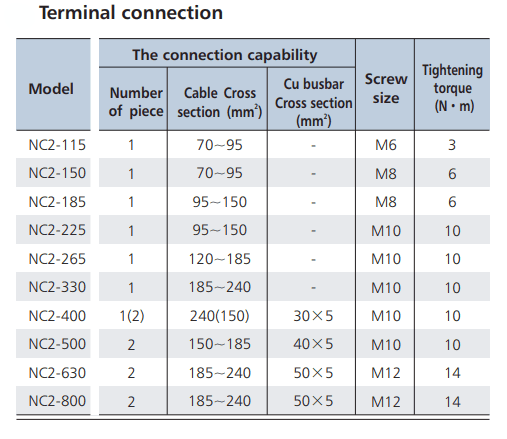

Technical Specifications (Table)
| Parameter | Value |
|---|---|
| Model | NC2-225/4 |
| Brand | Chint |
| Product Type | Power Contactor |
| Number of Poles | 4 Poles (4P) |
| Main Contacts | 4 NO |
| Rated Operational Current (AC-3, 400V) | 225 A |
| Rated Operational Current (AC-1) | Up to 250 A |
| Rated Operational Voltage (Ue) | Up to 690 V AC |
| Coil Type | AC operational |
| Coil Voltage Options | 110–127V AC, 220–240V AC, 380–415V AC |
| Operating Frequency | 50/60 Hz |
| Utilization Category | AC-3 / AC-1 |
| Mechanical Life | Approx. 2–3 million operations |
| Electrical Life (AC-3) | Typically 0.8–1.2 million operations (application dependent) |
| Mounting Options | Vertical / Horizontal, DIN rail or panel mount, ±5° |
| Standard Compliance | IEC/EN 60947-4-1 |
| Application | Motor, heating, lighting, and power distribution loads |
| Approx. Dimensions (L × W × H) | ~22 × 18 × 20 cm (body only, approx.) |
| Approx. Weight | ~5.5–6.0 kg (approx.) |
Applications (Bulleted)
Motor control centres (MCC) and heavy-duty motor starters
Pump, compressor and blower control panels
Industrial heating and lighting control circuits
Power distribution panels for high-current loads
Process automation panels in manufacturing plants
Large HVAC and utility systems
What’s in the Box?
1 × Chint NC2-225/4 4P Power Contactor, 225A, AC Coil (coil voltage as ordered)
Manufacturer’s basic instruction/datasheet (if supplied by OEM)
Product label and protective packaging
FAQ
Q1. What is the current rating of the Chint NC2-225/4 contactor?
A1. The NC2-225/4 is rated at 225A in AC-3 duty at 400V and up to 250A in AC-1 duty for non-inductive or slightly inductive loads.
Q2. Which coil voltages are available for this model?
A2. The contactor is available with AC coils in 110–127V, 220–240V, and 380–415V ranges. You should specify the required coil voltage when placing the order.
Q3. Can this contactor be used for 3-phase motor control?
A3. Yes. With a 225A AC-3 rating and 4-pole design, it is suitable for heavy-duty three-phase motor starting and stopping, provided it is correctly selected and coordinated with protection devices.
Q4. What standards does the NC2-225/4 comply with?
A4. It meets IEC/EN 60947-4-1 standards for low-voltage switchgear and controlgear.
Q5. How can this contactor be mounted in the panel?
A5. The NC2-225/4 can be mounted vertically or horizontally on a DIN rail or directly on the panel plate, with an inclination tolerance of ±5°, allowing flexible panel layouts.
Q6. What is the expected service life?
A6. Mechanical life is typically 2–3 million operations, with electrical life under AC-3 duty around 0.8–1.2 million operations, depending on load and operating conditions.
