NXC Contactor Series (09 to 22 A)

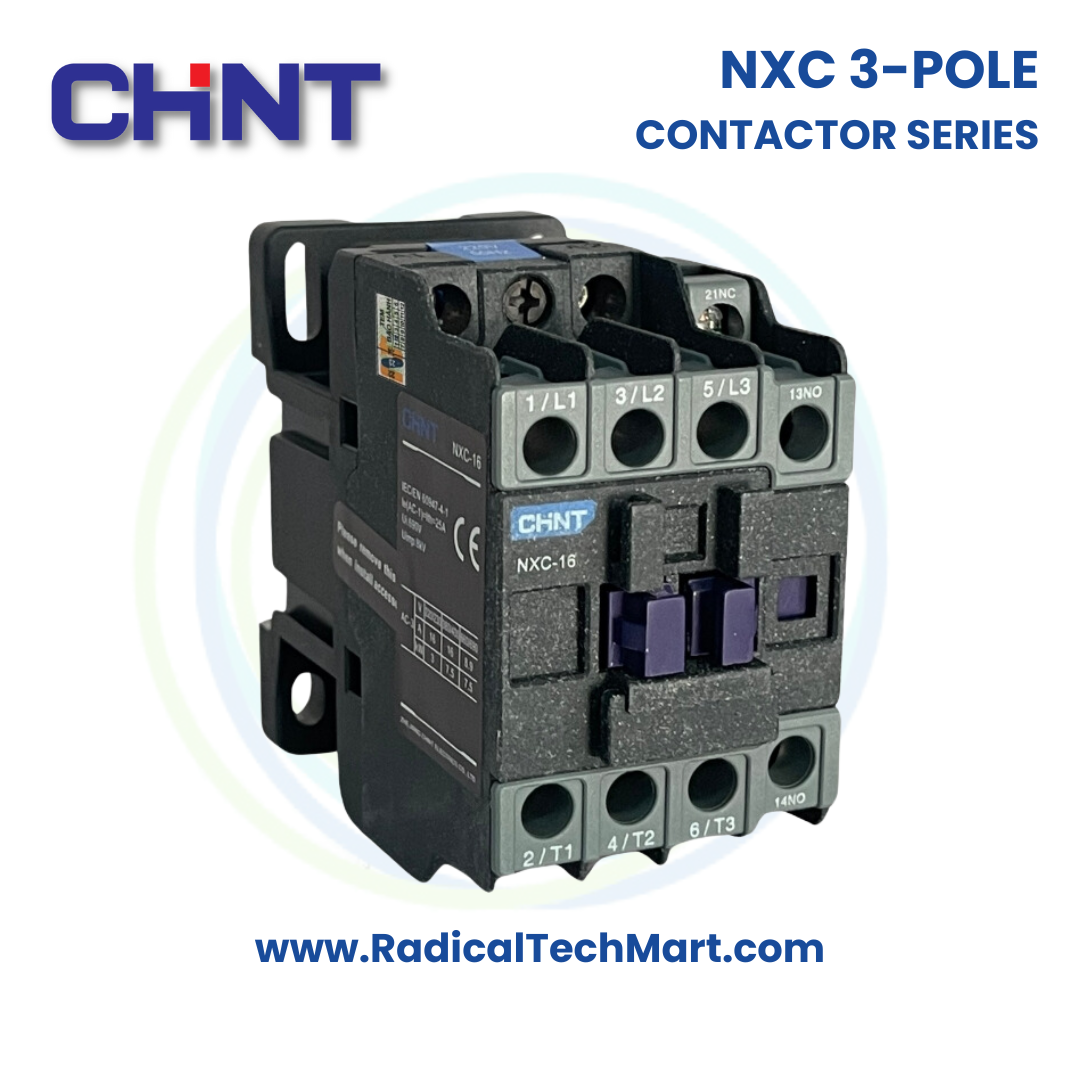

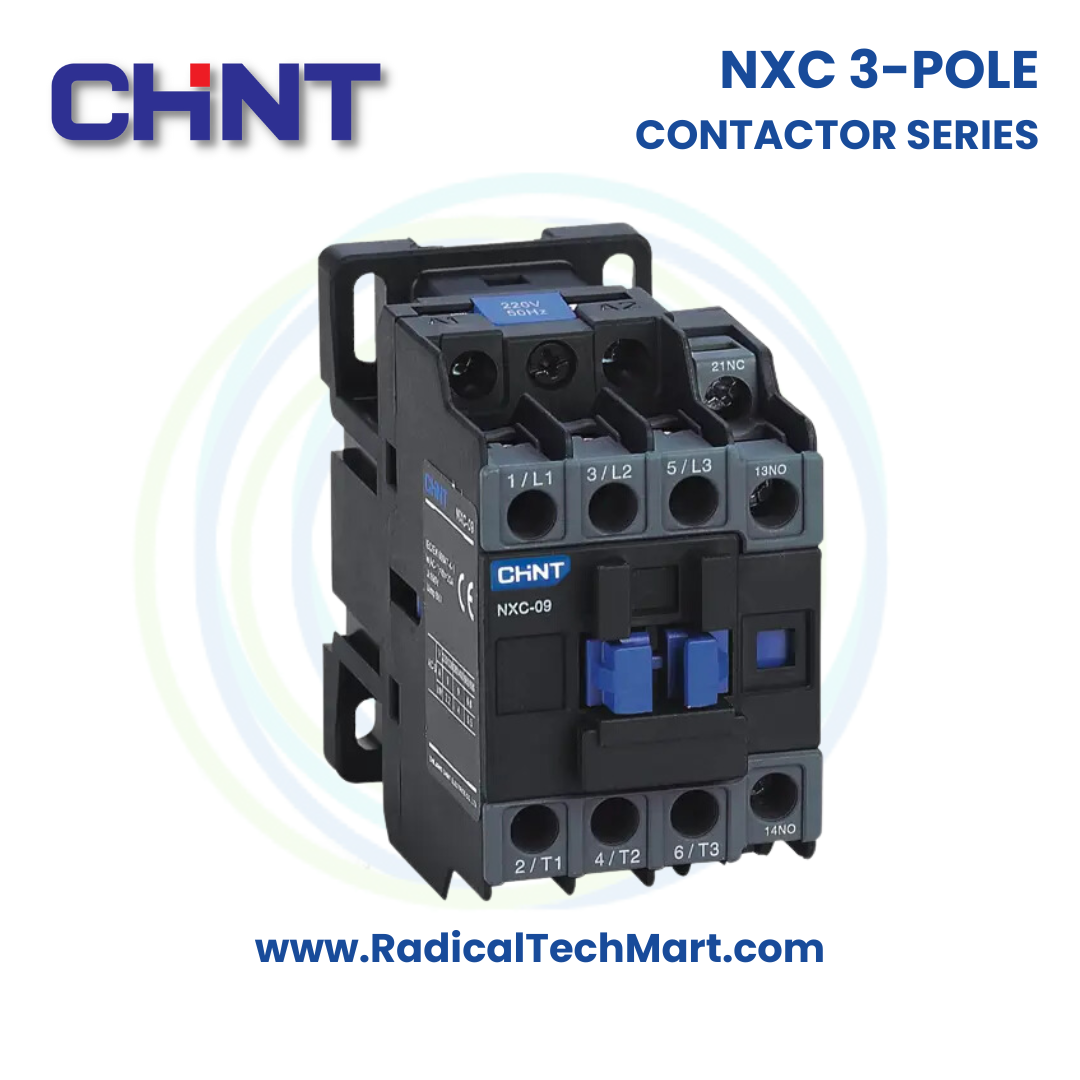

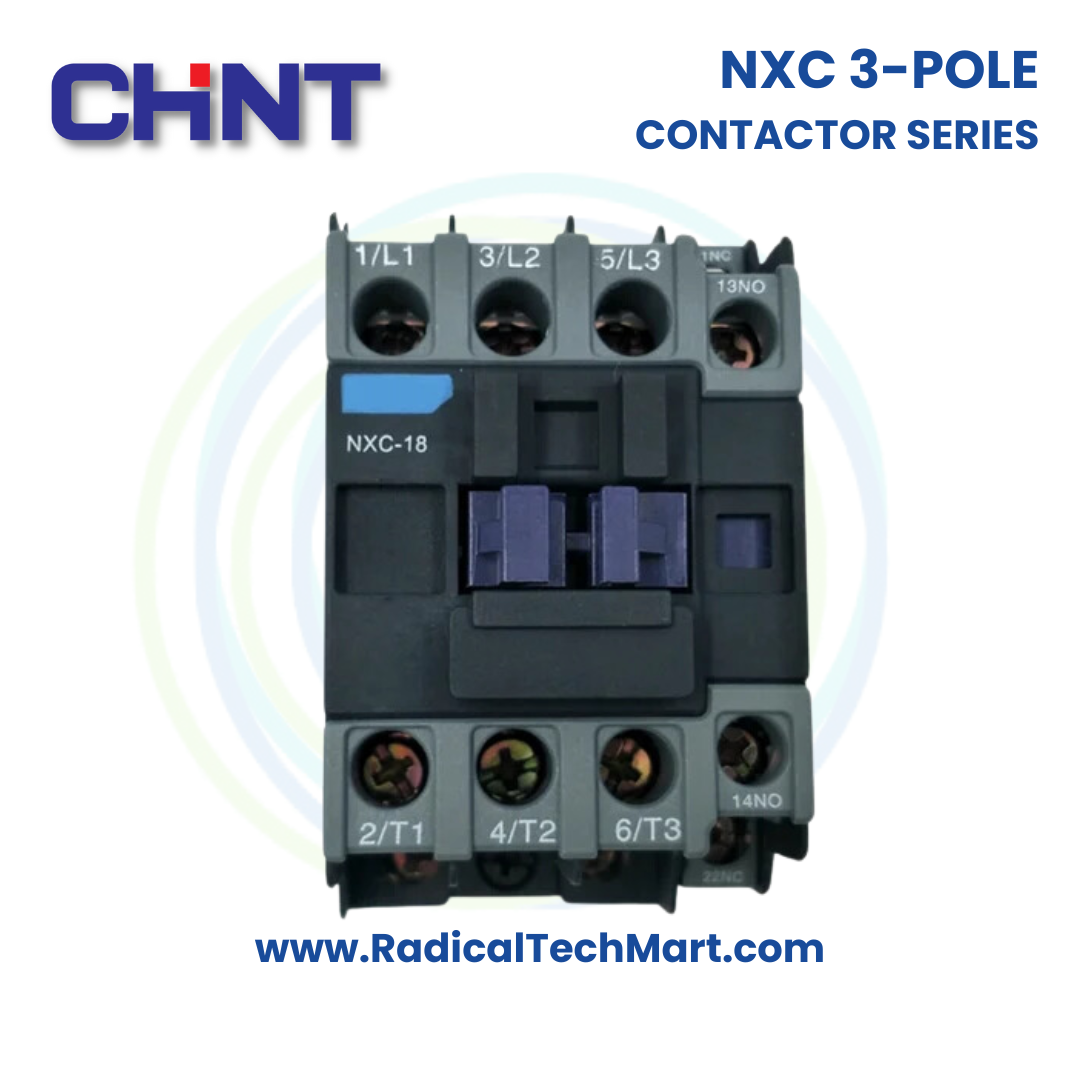

Chint NXC Contactor Series (09–22 A, 3P/4P, AC Coil)
Modular AC contactors for 9–22 A motor loads with multiple coil voltages, 3-pole/4-pole options, and integrated auxiliary contacts for reliable motor control and remote switching.
Customize
Share :
The Chint NXC Contactor Series (09–22 A) is a compact, IEC-compliant range of AC contactors for motor and general-purpose loads. Available in 3-pole and 4-pole versions with multiple AC coil voltages, NXC contactors are suited for remote switching, frequent motor starting, and control applications in industrial and commercial panels.
Key Features
Wide Current Range: Rated operational current from 9 A to 22 A for small to medium AC motors
Multiple Coil Voltages: Coil options in common AC voltages such as 24V, 48V, 110V, 220V, 380V, 415V
3P / 4P Options: Available in 3-pole and 4-pole configurations for different circuit requirements
Integrated Aux Contacts: Options with 1NO + 1NC or 2NO + 2NC auxiliary contacts for signalling and interlocking
IEC-Compliant: Designed to meet IEC/EN 60947-1, 60947-4-1, 60947-5-1 standards
Flexible Mounting: Supports DIN rail and screw mounting for ease of panel integration
Wide Ambient Range: Operates in ambient temperatures from -5°C to +40°C (limits -35°C to +70°C)
Robust Construction: Industrial-grade housing for long service life in motor control centres and distribution panels
Technical Specifications (Table – Series Level)
| Parameter | Specification |
|---|---|
| Series | Chint NXC Contactor Series |
| Models (Typical) | NXC-09, NXC-12, NXC-16, NXC-18, NXC-22 |
| Rated Operational Current | 9 A, 12 A, 16 A, 18 A, 22 A |
| Number of Poles | 3P or 4P |
| Coil Voltage Options | AC: 24V, 48V, 110V, 220V, 380V, 415V (model-dependent) |
| Auxiliary Contacts | 1NO + 1NC or 2NO + 2NC (depending on variant) |
| Application | Remote making/breaking, frequent motor starting, control |
| Standards | IEC/EN 60947-1, 60947-4-1, IEC/EN 60947-5-1 |
| Mounting | DIN rail and screw mounting |
| Ambient Temp – Normal | -5°C to +40°C |
| Ambient Temp – Limits | -35°C to +70°C |
| Typical Use Category | AC-3 / AC-1 (as per detailed model data) |
| Installation | Enclosed in control panel / MCC |
Applications
Motor control centres (MCC panels)
Pump, blower and compressor starters
HVAC and chiller control panels
General-purpose 3-phase load switching
Distribution and feeder panels
OEM machine control and automation panels
What’s in the Box?
1 × Chint NXC Contactor (model as ordered: NXC-09 / 12 / 16 / 18 / 22; 3P/4P)
Integrated auxiliary contact block (as per model)
Mounting and wiring instruction leaflet
Warranty/quality tag from manufacturer or distributor
FAQ
Q1. How do I choose between NXC-09, 12, 16, 18, and 22?
Select the model based on the motor's full-load current and application duty. For most AC-3 motor loads, choose the contactor with a rated current equal to or higher than the motor FLA.
Q2. What coil voltages are available?
The NXC series is available with AC coils such as 24V, 48V, 110V, 220V, 380V, and 415V. You should match the coil voltage to the control supply used in your panel.
Q3. Are both 3-pole and 4-pole versions available?
Yes, the series includes 3P and 4P options. 3-pole is common for 3-phase motors; 4-pole is useful for neutral switching or special control circuits.
Q4. What auxiliary contacts are provided?
Most models are available with 1NO + 1NC or 2NO + 2NC auxiliaries. These are used for signaling, interlocking, or logic control.
Q5. Can these contactors be mounted on a DIN rail?
Yes, NXC contactors are designed for DIN rail and screw mounting, making them suitable for standard control panels.
Q6. Are they suitable for harsh ambient conditions?
They operate in a normal range of -5°C to +40°C and can withstand extended limits from -35°C to +70°C when installed as per manufacturer instructions.
