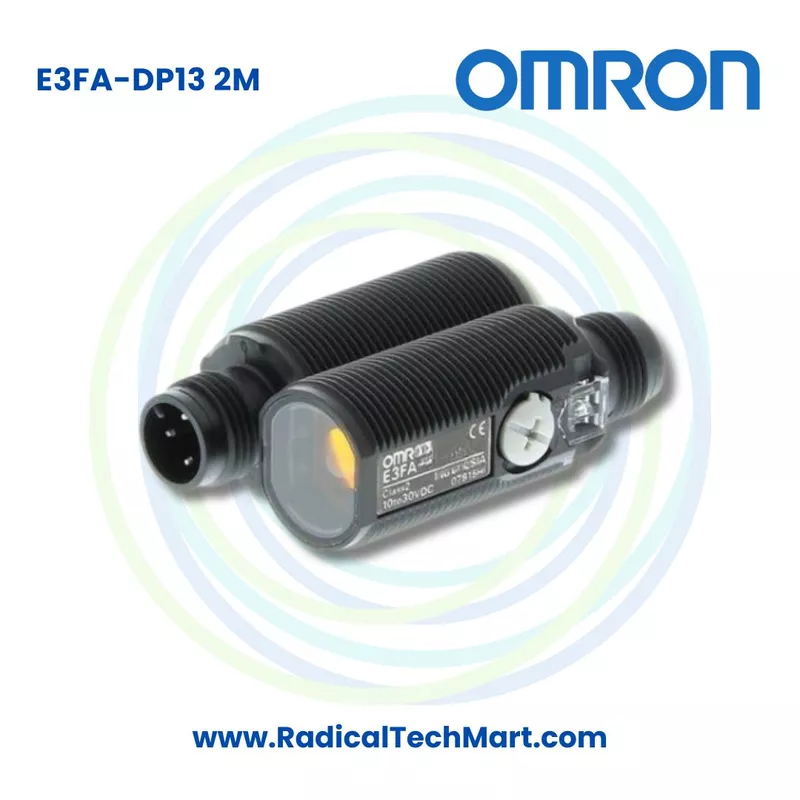

Omron E3FA-DP13 2M Diffuse Photoelectric Sensor
The Omron E3FA-DP13 2M is an M18 cylindrical diffuse reflective photoelectric sensor designed for reliable object detection in industrial automation applications. It offers a 1 m sensing distance, PNP open collector output, 624 nm red LED light source, Light ON and Dark ON selection, 10 to 30 VDC supply, 0.5 ms response time, 2 m pre wired cable, IP67 protection and IP69K protection.
Click here for Manual.
Customize
Share :
A. Product Overview
The Omron E3FA-DP13 2M belongs to the E3FA series of cylindrical photoelectric sensors. Omron designed the E3FA family for standard industrial applications requiring simple installation, easy adjustment, reliable sensing, high light immunity and robust environmental protection.
The model designation identifies the sensor as follows:
E3FA: Cylindrical straight type with plastic housing
D: Diffuse reflective sensing method
P: PNP output
1: Pre wired cable connection
3: Sensing range and light source variation
2M: 2 metre cable length
Omron lists the E3FA-DP13 2M as a PNP diffuse reflective photoelectric sensor with a 1 m sensing distance and pre wired cable.
Key Specifications
| Specification | Details |
|---|---|
| Brand | Omron |
| Model | E3FA-DP13 2M |
| Sensor Type | Photoelectric sensor |
| Sensing Method | Diffuse reflective |
| Housing Type | Cylindrical straight type |
| Housing Size | M18 |
| Housing Material | ABS plastic |
| Sensing Distance | 1 m |
| Reference Target | White paper, 300 x 300 mm |
| Output | PNP open collector |
| Power Supply | 10 to 30 VDC |
| Load Current | 100 mA maximum |
| Light Source | Red LED |
| Wavelength | 624 nm |
| Response Time | 0.5 ms |
| Operation Mode | Light ON and Dark ON selectable |
| Sensitivity Adjustment | One turn adjuster |
| Operation Indicator | Orange |
| Stability Indicator | Green |
| Cable Length | 2 m |
| Protection Rating | IP67 and IP69K |
| Operating Temperature | Minus 25°C to 55°C |
These specifications are listed by Omron for the diffuse reflective E3FA-DP13 configuration.
B. Working Principle
The Omron E3FA-DP13 2M works using the diffuse reflective photoelectric sensing principle.
The sensor emits red light toward the target object. When an object enters the detection area, part of the emitted light is reflected from the object's surface back toward the receiver inside the sensor.
The internal electronics monitor the returned light level. When the reflected light reaches the switching threshold, the sensor changes its PNP output state.
This design does not normally require a separate reflector or separate receiver because the transmitter and receiver are integrated into the same sensor housing.
For the E3FA-DP13 2M, Omron specifies a 624 nm red LED, a 1 m sensing distance with a 300 x 300 mm white paper target, and selectable Light ON or Dark ON operation.
C. Why Is the Omron E3FA-DP13 2M Used?
The E3FA-DP13 2M is used when industrial machinery needs to detect an object without physically touching it.
Typical applications include:
- Detecting products on conveyor systems
- Product counting on manufacturing lines
- Packaging machine object detection
- Carton and box detection
- Component presence detection
- Material handling systems
- Assembly line automation
- Food and beverage machinery
- Logistics and warehouse equipment
- Textile manufacturing machinery
- Ceramic and brick production equipment
- Automated production lines
- PLC based automation systems
- Machine position and object presence sensing
Omron specifically indicates that the E3FA family is used across industries including food and beverage, textiles, ceramics, brick production and logistics.
The sensor also offers high EMC protection, high light immunity and a robust waterproof housing, helping it maintain reliable detection in industrial environments.
D. Suitable Buyers
The Omron E3FA-DP13 2M is suitable for:
Industrial automation companies:
For object detection, counting and machine automation projects.
Machine manufacturers and OEMs:
For integrating photoelectric sensing into production machinery.
Packaging machine manufacturers:
For detecting cartons, containers, products and packaging material.
PLC system integrators:
For applications requiring a PNP sensor input to PLC systems.
Panel builders:
For automation panels connected to compatible PNP field devices.
Manufacturing plants:
For production lines, conveyors, assembly lines and material handling systems.
Food and beverage manufacturers:
For automated detection applications where the sensor specifications are suitable for the machine environment.
Logistics companies:
For carton, parcel and product detection in conveyor systems.
Maintenance departments:
For replacement of compatible Omron E3FA diffuse reflective sensors.
Industrial automation distributors:
For supplying Omron photoelectric sensors to OEMs, system integrators and industrial users.
Frequently Asked Questions
1. What is the Omron E3FA-DP13 2M?
The Omron E3FA-DP13 2M is an M18 cylindrical diffuse reflective photoelectric sensor with PNP output, 1 m sensing range and a 2 m pre wired cable.
2. What is the sensing distance of E3FA-DP13 2M?
The rated sensing distance is 1 metre, based on a 300 x 300 mm white paper target.
3. Is the E3FA-DP13 2M PNP or NPN?
It is a PNP output model. In Omron's model numbering system, P identifies the PNP configuration.
4. What type of sensor is E3FA-DP13 2M?
It is a diffuse reflective photoelectric sensor. The transmitter and receiver are integrated into the same sensor body.
5. Does E3FA-DP13 2M require a reflector?
No separate reflector is specified for this diffuse reflective model. The sensor detects light reflected directly from the target object.
6. What light source does the sensor use?
The sensor uses a 624 nm red LED light source.
7. What voltage does the E3FA-DP13 2M require?
The operating supply is 10 to 30 VDC.
8. What is the maximum output load current?
The maximum control output load current is 100 mA, with a maximum load supply voltage of 30 VDC.
9. Does it support Light ON and Dark ON modes?
Yes. Light ON and Dark ON operation are selectable by wiring.
10. What is the response time?
The specified response time is 0.5 ms, making it suitable for fast industrial detection applications.
11. Is sensitivity adjustable?
Yes. The sensor uses a one turn sensitivity adjuster.
12. What indicators are provided?
It includes an orange operation indicator and a green stability indicator.
13. Is E3FA-DP13 2M waterproof?
Omron specifies IP67 according to IEC and IP69K according to DIN 40050 Part 9.
14. What is the operating temperature range?
The operating temperature range is minus 25°C to 55°C, with no icing or condensation.
15. What is the cable length?
The E3FA-DP13 2M comes with a 2 metre pre wired cable. Omron's dimensions section confirms a standard 2 m cable for E3FA pre wired models.
16. Can E3FA-DP13 2M be connected to a PLC?
Yes. It can be connected to a compatible PLC digital input designed to work with a PNP open collector sensor operating from 10 to 30 VDC.
17. Can it detect objects of different colours?
Yes, but detection distance can vary depending on the object's surface colour and reflectivity. Omron's engineering data shows that diffuse reflective sensing distance changes between white, red, green, blue and black targets.
18. Is this sensor suitable for safety applications?
No. Omron states that this product is not designed or rated for directly or indirectly ensuring the safety of persons.
