A. Product Overview

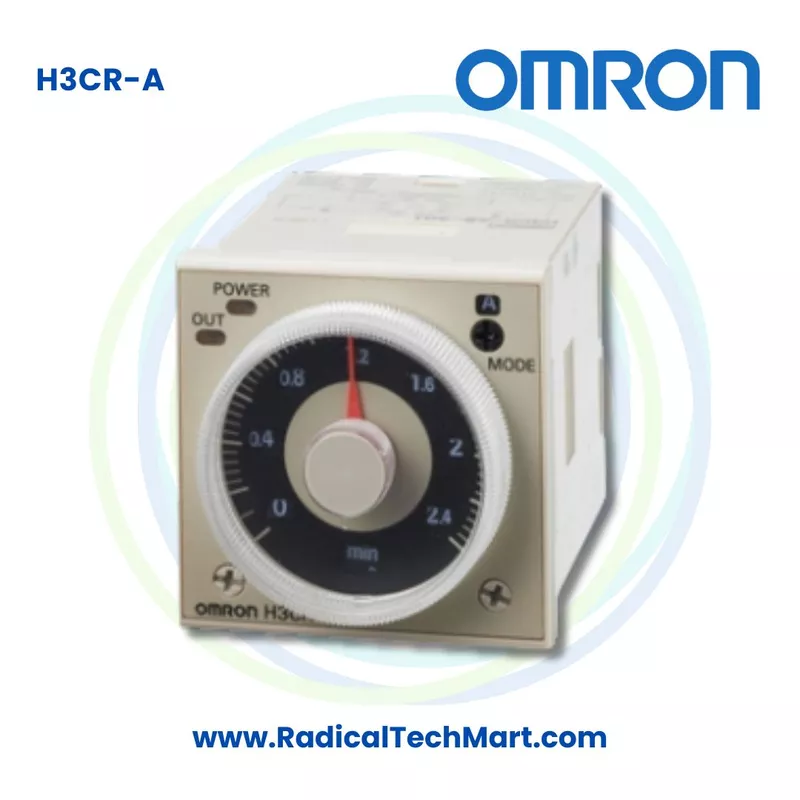

The Omron H3CR-A 11-Pin Multifunction Timer is a high-performance analog solid state timer from Omron's H3CR series. It is designed to provide accurate time delay control for industrial automation applications where dependable switching and flexible timing operations are required.

The timer features a compact 48 x 48 mm panel mount design, making it suitable for standard control panels. With multiple selectable timing modes, wide time setting ranges and relay output contacts, it can handle various automation requirements including ON delay, OFF delay, interval timing and cyclic operations.

Key Features:

• Multifunction industrial timer relay
• 11-pin plug-in socket design
• Multiple timing modes selection
• Adjustable time range settings
• 48 x 48 mm standard panel mounting size
• Reliable solid state timing operation
• High accuracy and repeatability
• Suitable for industrial automation and machine control applications
• Easy installation and configuration

B. Working Principle

The Omron H3CR-A timer works by receiving an electrical supply input and internally controlling the timing operation using an electronic timing circuit.

When the input signal is applied, the timer starts counting according to the selected time setting and operating mode. After the preset time is completed, the internal relay output changes its contact position to control connected devices such as motors, contactors, solenoid valves, alarms or other automation components.

The user can select different timing functions depending on the application requirement, such as:

• ON Delay: Output activates after the preset delay time.
• OFF Delay: Output remains active for a preset time after input removal.
• Interval Timing: Output operates for a defined duration after triggering.
• Cyclic Timing: Output switches repeatedly according to preset ON and OFF intervals.

The 11-pin configuration provides flexible wiring options for power supply, input trigger and relay output connections.

C. Why Omron H3CR-A Timer is Used

Industrial machines often require accurate control of operating sequences, delays and switching intervals. Manual control methods cannot provide consistent timing accuracy, which can reduce productivity and increase machine downtime.

The Omron H3CR-A timer is used because it provides:

• Precise time delay control for automation processes
• Improved machine sequence management
• Reliable switching performance
• Reduced wiring complexity
• Better protection for connected equipment
• Increased production efficiency
• Compatibility with industrial control panels

It is commonly used in applications where timing accuracy and long-term operational reliability are important.

D. Suitable Buyers and Applications

Suitable Buyers:

• Industrial automation system integrators
• Machine manufacturers
• Electrical panel builders
• OEM equipment manufacturers
• Maintenance engineers
• Manufacturing industries
• Process automation companies
• Control panel manufacturers

Suitable Applications:

• PLC control panels
• Conveyor systems
• Packaging machines
• Motor control systems
• HVAC control panels
• Pump automation systems
• Production line equipment
• Industrial sequencing systems
• Lighting control systems
• Factory automation applications

Frequently Asked Questions (FAQ)

1. What is Omron H3CR-A 11-Pin Multifunction Timer?

The Omron H3CR-A is a multifunction industrial timer relay used for controlling time-based operations in automation and electrical control systems.

2. What type of timer is Omron H3CR-A?

It is a multifunction solid state timer with relay output designed for industrial applications.

3. How many pins does Omron H3CR-A timer have?

The Omron H3CR-A model uses an 11-pin plug-in socket connection.

4. Where is Omron H3CR-A timer used?

It is used in machine automation, PLC panels, motor control, production equipment, packaging systems and industrial control applications.

5. What are the timing functions available in Omron H3CR-A?

The timer supports multiple timing operations including ON delay, OFF delay, interval timing and cyclic timing depending on the selected model configuration.

6. Is Omron H3CR-A suitable for industrial automation?

Yes, it is widely used in industrial automation systems because of its accuracy, reliability and flexible timing functions.

7. What are alternatives to Omron H3CR-A timer?

Common alternatives include Autonics multifunction timer, Selec timer relay, Multispan timer, Schneider timer relay, Siemens timer, Panasonic timer and Kubler timer.

8. Can Omron H3CR-A be used with PLC systems?

Yes, it can be integrated into PLC-based automation systems for providing external timing control functions.

9. What industries use Omron H3CR-A timers?

It is used in manufacturing, packaging, automotive, food processing, pharmaceutical, HVAC and process automation industries.

10. Why choose Omron H3CR-A over normal timers?

The Omron H3CR-A offers higher reliability, multiple timing functions, accurate operation and industrial-grade performance compared to basic timers.
