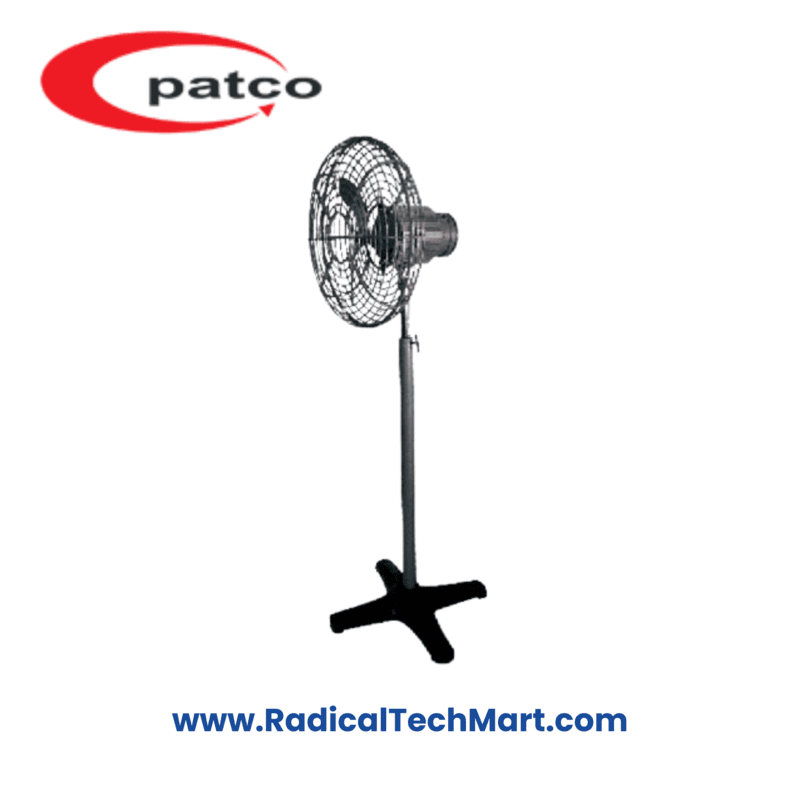

Patco FLP Pedestal Fan
Patco FLP Pedestal Fan – Flameproof, IP66, 18/24/30 Inch, Zone 1 & 2
Heavy-duty flameproof pedestal fan for hazardous industrial areas, available in 18", 24" and 30" sizes with Ex-d motor, IP66 protection, and flexible 1-phase/3-phase power options.
Customize
Share :
The Patco FLP Pedestal Fan is a high-performance flameproof ventilation unit designed for industrial hazardous areas classified as Zone 1 & Zone 2. Built with a rugged Ex-d motor, LM6 aluminum components, and IP66 protection, it delivers reliable airflow in explosive gas environments.
Key Features
Flameproof Ex-d design suitable for hazardous areas with explosive gases
Certified for Zone 1 & Zone 2 industrial applications
Durable LM6 aluminium body with four high-efficiency blades
Available in 18", 24", and 30" sizes for flexible airflow needs
High ingress protection – IP66 dustproof and water-resistant
Heavy-duty industrial motor:
18" → 0.33 HP
24" → 0.5 HP
30" → 0.75 HP
Powered by 230V AC (1-phase) or 415V AC (3-phase)
Free-standing pedestal design for easy relocation
Designed for continuous-duty operation in harsh conditions
Ideal for chemical, petrochemical, oil & gas and solvent-handling plants
Technical Specifications (Table)
| Parameter | 18" Model | 24" Model | 30" Model |
|---|---|---|---|
| Size | 457 mm (18") | 610 mm (24") | 800 mm (30") |
| Power Rating | 0.33 HP | 0.5 HP | 0.75 HP |
| Voltage | 230V 1-Ph / 415V 3-Ph | 230V 1-Ph / 415V 3-Ph | 230V 1-Ph / 415V 3-Ph |
| Speed | 1440 RPM (typical) | 1440 RPM | 1440 RPM |
| Approx. Weight | 32 kg | 34.1 kg | 36.8 kg |
| Construction | LM6 aluminium body, 4-blade impeller | Same | Same |
| Protection | Ex-d flameproof | Ex-d flameproof | Ex-d flameproof |
| IP Rating | IP66 | IP66 | IP66 |
| Application Area | Zone 1 & 2 hazardous areas | Zones 1 & 2 | Zones 1 & 2 |
Applications
Chemical & petrochemical plants
Petroleum refineries & gas handling areas
Solvent-filled manufacturing halls
Fertilizer, agrochemical & pesticide plants
Confined industrial ventilation zones
Hazardous warehouses & pump rooms
What’s in the Box?
1 × Patco FLP Pedestal Fan (selected size)
Pedestal stand assembly
Flameproof motor with 4-blade impeller
Safety guard
Factory-wired terminal connections
Operation and installation instructions
FAQ
1) Is this fan suitable for explosive gas environments?
Yes. It is designed as a flameproof Ex-d fan suitable for Zone 1 & Zone 2 areas.
2) What IP rating does it have?
The fan is IP66, offering dust-tight sealing and high resistance to water ingress.
3) What power options are available?
All models support 230V single-phase or 415V three-phase 50Hz power supply.
4) Is this fan portable?
Yes. The pedestal design allows convenient repositioning within the workspace.
5) What materials are used?
The fan features LM6 aluminum construction, ensuring strength, corrosion resistance, and heat dissipation.
6) Where is it commonly used?
In chemical plants, refineries, hazardous production floors, and solvent-handling areas.
