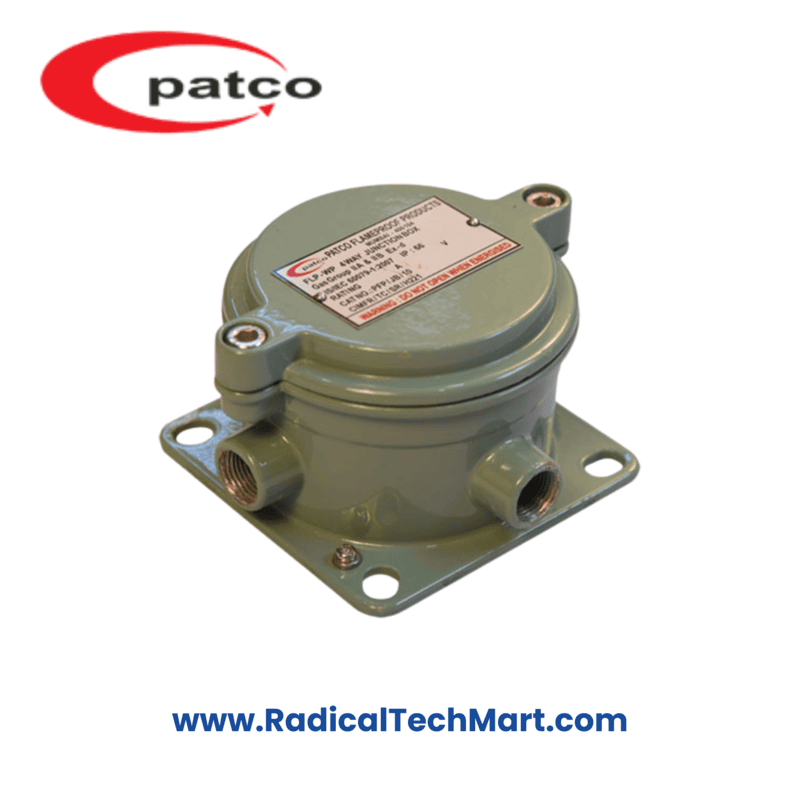

Patco FLP/WP 2 Way - 4 Way Junction Box – 100 mm Dia

Product Summary:
The Patco FLP/WP 2 Way - 4 Way Junction Box (100mm Dia) is a robust, flameproof solution designed for safe and reliable electrical connections in explosive atmospheres. Built using LM6 aluminum alloy, it ensures durability and superior ingress protection.

Key Features:

• Conforms to IS:2148-2004 / IEC-60079-1:2007 explosion-proof standards

• Zone 1 & Zone 2 classification for hazardous gas groups I, IIA, IIB

• Ingress Protection: IP65 as per IS/IEC60529-2001

• Die Cast Aluminum Alloy LM6 housing

• Epoxy polyester powder coated for corrosion resistance

• Terminal: 32A 4 Way Clip-on Type, rail mounted

• Cable Entry: 2 or 4 Nos. M20 (3/4" ET)

• Stainless steel hardware for longevity

• Earth Terminals: Internal (1) & External (2)

Application:

• Petrochemical plants

• Oil & gas refineries

• Chemical and fertilizer industries

• Hazardous processing areas

• Pharmaceutical manufacturing zones

Product Benefits:

• Ensures safe electrical connections in explosive environments

• Compact and rugged design for easy installation

• Multiple cable entry options for flexible wiring

• Long-lasting protection against dust, water, and corrosion

• Compatible with a wide range of industrial wiring setups

FAQs:

Q1. Is this junction box certified for use in hazardous areas?
Yes, it complies with IS and IEC explosion-proof standards for Zone 1 & Zone 2 gas groups I, IIA, and IIB.

Q2. What is the terminal capacity and type?
It includes a 32A 4 Way Clip-on Type terminal mounted on a DIN rail for efficient wiring.

Q3. Can I use both 2-way and 4-way cable entry options?
Yes, the design supports either 2 or 4 cable entries with M20 (3/4" ET) sizing depending on your wiring needs.
