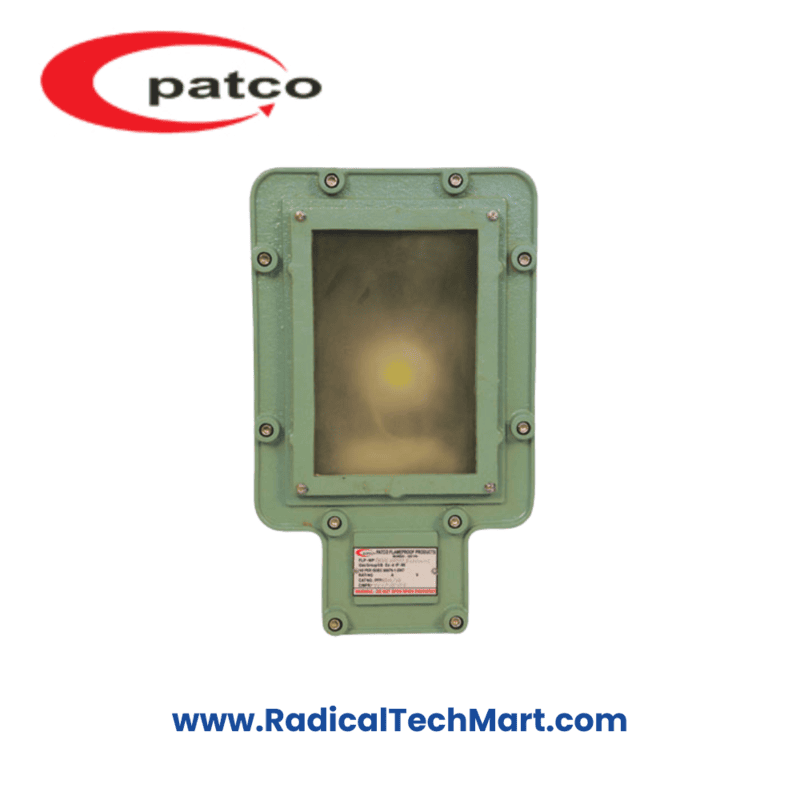

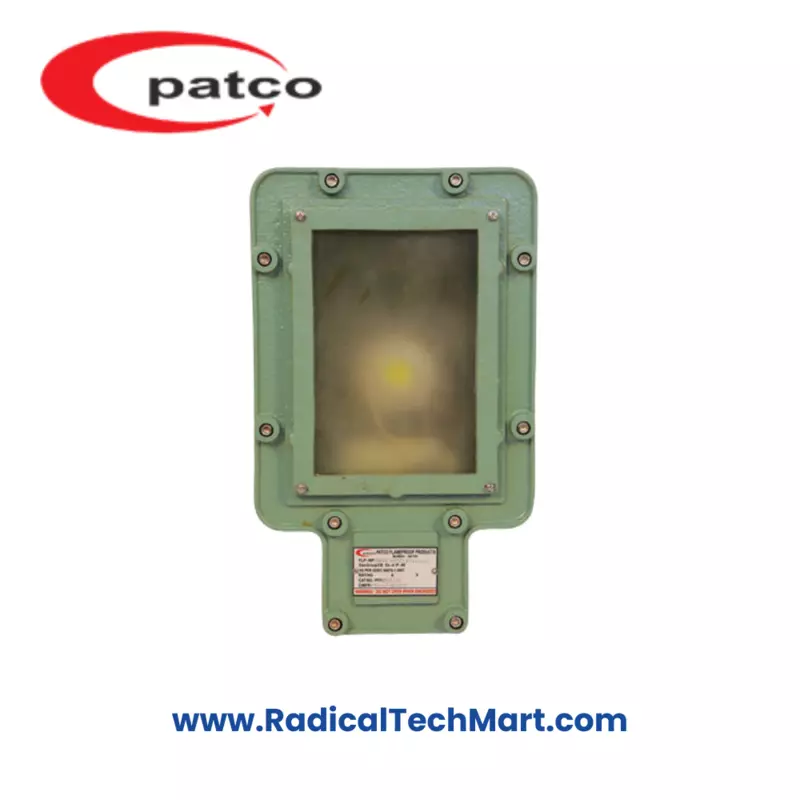

The Patco FLP/WP Bulk Head Fitting PFP/BL/02 is a rugged flameproof and weatherproof lighting fixture designed for hazardous industrial environments. Suitable for Zone 1 & 2 areas, it supports MLL, CFL, and LED lamps and offers safe, reliable illumination in explosive gas atmospheres.

Key Features

• Ex-protection as per IS/IEC 60079-1:2007

• Suitable for Zone 1 & Zone 2, Gas Groups I, IIA, IIB

• IP65 ingress protection for outdoor and washdown installations

• Heavy-duty LM6 die-cast aluminium enclosure

• Supports 160W MLL, 2×23W CFL, 30W/45W/60W LED

• Toughened Type “A” Glass as per IS:2206 (Part I)

• Enclosed break porcelain E-27 lamp holder

• Stainless steel hardware for corrosion resistance

• Epoxy polyester powder-coated finish

• Dual M20 (3/4” ET) cable entries

• Internal and external earthing provisions

Technical Specifications (Table)

Applications

• Chemical and petrochemical plants

• Oil & gas refineries

• Hazardous storage areas

• Process plants and pump houses

• Solvent & paint industries

• Outdoor and washdown industrial zones

• Any Zone 1 & Zone 2 classified environments

What’s in the Box?

• Patco FLP/WP Bulk Head Fitting PFP/BL/02

• Fitted porcelain E-27 lamp holder

• Toughened Type A glass cover

• Stainless steel mounting hardware

• Cable entry plugs (if provided by OEM)

• Earthing screws (internal & external)

FAQ

1) What lamp types can be used?
Supports MLL, CFL (2×23W), and LED lamps up to 60W.

2) Is this fitting suitable for hazardous areas?
Yes, it is certified for Zone 1 & 2 and Gas Groups I, IIA, and IIB.

3) What is the ingress protection rating?
IP65 – dust-tight and protected against water jets.

4) Is the glass durable?
Yes, it uses Type “A” toughened safety glass as per IS:2206.

5) How many cable entries are provided?
Two M20 (3/4” ET) cable entries.

6) Does it include earthing?
Yes, both internal and external earthing points are provided.
