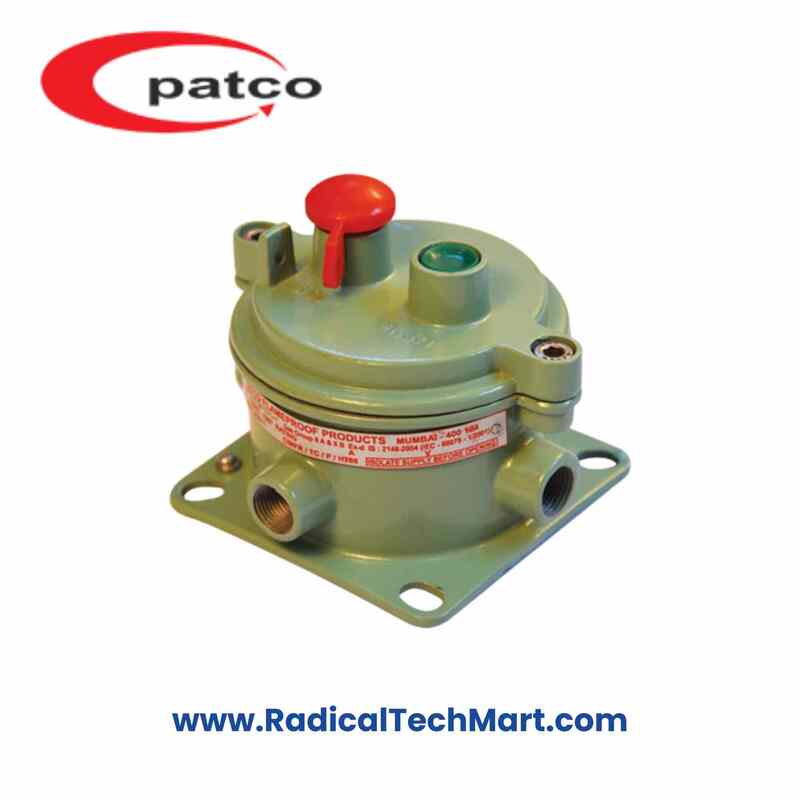

Patco FLP/WP Direct Entry – Push Button Station

Product Summary:
The Patco FLP/WP Direct Entry – Push Button Station is designed for safe and reliable operation in hazardous environments. Equipped with Start/Stop push buttons and housed in a flameproof enclosure, it ensures IP65 protection and compliance with IS/IEC-60079-1:2007 standards for Zone 1 & 2 areas.

Key Features:

• Catalogue No: PFP/PBS/10

• Certified for Gas Group I, IIA, IIB

• Zone 1 & Zone 2 flameproof certified

• IP65 ingress protection as per IS/IEC60529-2001

• Green START push button with 1 NO contact – 10 AMP

• Red STOP push button with mushroom head and pad lock, 1 NC contact – 10 AMP

• Die-cast aluminum alloy LM6 construction

• Epoxy polyester powder-coated body

• Internal and external earthing provisions

• 2 or 4 M20 (3/4” ET) cable entries

• Corrosion-resistant stainless steel hardware

Applications:

• Oil & gas industries

• Petrochemical & chemical plants

• Paint & solvent manufacturing units

• Pharmaceutical production lines

• Hazardous area industrial motor control

Product Benefits:

• Reliable control in explosive gas environments

• Robust and corrosion-resistant flameproof construction

• IP65-rated enclosure suitable for harsh environments

• Lockable STOP function for enhanced safety

• Easy installation with multiple cable entry options

Video Link:

FAQs:

Q1. Is the Push Button Station certified for use in explosive zones?
Yes, it is certified as per IS/IEC-60079-1:2007 for Zone 1 & Zone 2 applications.

Q2. Can the STOP push button be locked for safety?
Yes, the STOP button features a mushroom head design with pad lock provision for secure lockout.

Q3. How many cable entries are provided?
The unit supports either 2 or 4 M20 (3/4” ET) cable entries, depending on the configuration.
