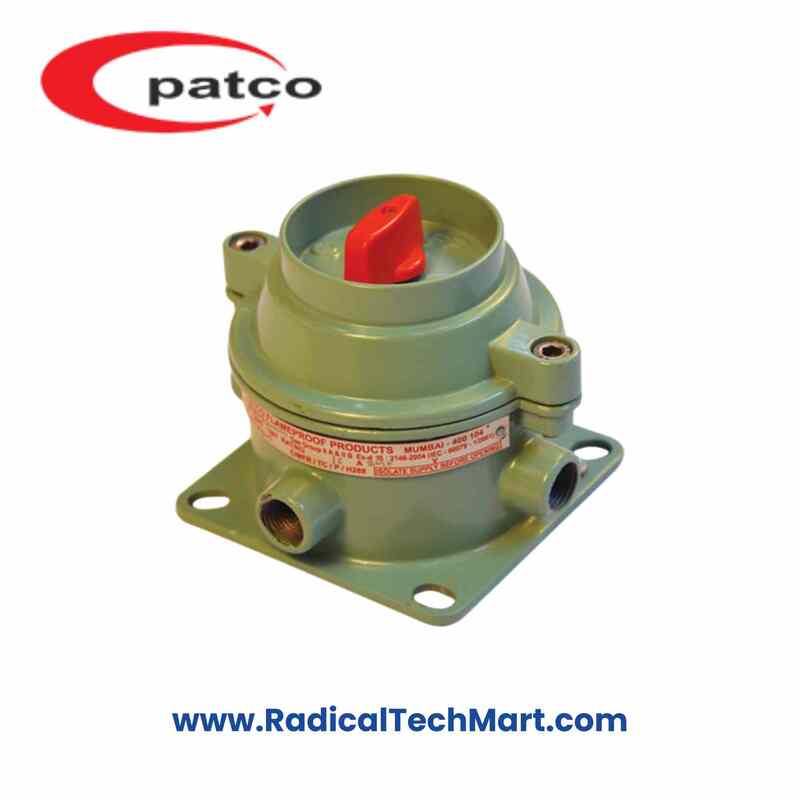

Patco FLP/WP Direct Entry – Rotary Switch

Product Summary:
The Patco FLP/WP Direct Entry Rotary Switch is built for reliable operation in hazardous gas zones. Featuring robust aluminum construction, it supports SP/DP/TP configurations and provides enhanced safety in explosive environments.

Key Features:

• Catalogue No: PFP/RI/10

• Flameproof certified as per IS/IEC-60079-1:2007

• Suitable for Zone 1 & 2 classified areas

• Gas Group I, IIA, IIB compatible

• IP65-rated enclosure per IS/IEC60529-2001

• Up to 32A capacity – SP/DP/TP switch

• Die-cast aluminum LM6 enclosure

• Epoxy polyester powder-coated body

• 2 or 4 entries for M20 (3/4” ET) cable glands

• Stainless steel hardware for corrosion resistance

• Internal and external earthing provided

Applications:

• Oil & gas refineries

• Chemical and petrochemical plants

• Hazardous manufacturing facilities

• Paint and solvent units

• Power and energy control rooms

Product Benefits:

• Ensures safe switching in explosive environments

• Versatile mounting with multiple cable entry options

• Durable design with anti-corrosion coating

• Compact structure for easy installation

• IP65 protection ensures dust-tight and water-resistant performance

FAQs:

Q1. What is the current rating supported by this rotary switch?
It supports up to 32A in SP, DP, or TP configurations.

Q2. Is this rotary switch suitable for explosive atmospheres?
Yes, it is certified for Zone 1 & Zone 2 areas under IS/IEC-60079-1:2007 standards.

Q3. How many cable entries are provided?
You get options for 2 or 4 M20 (3/4” ET) cable entries for flexible wiring.
