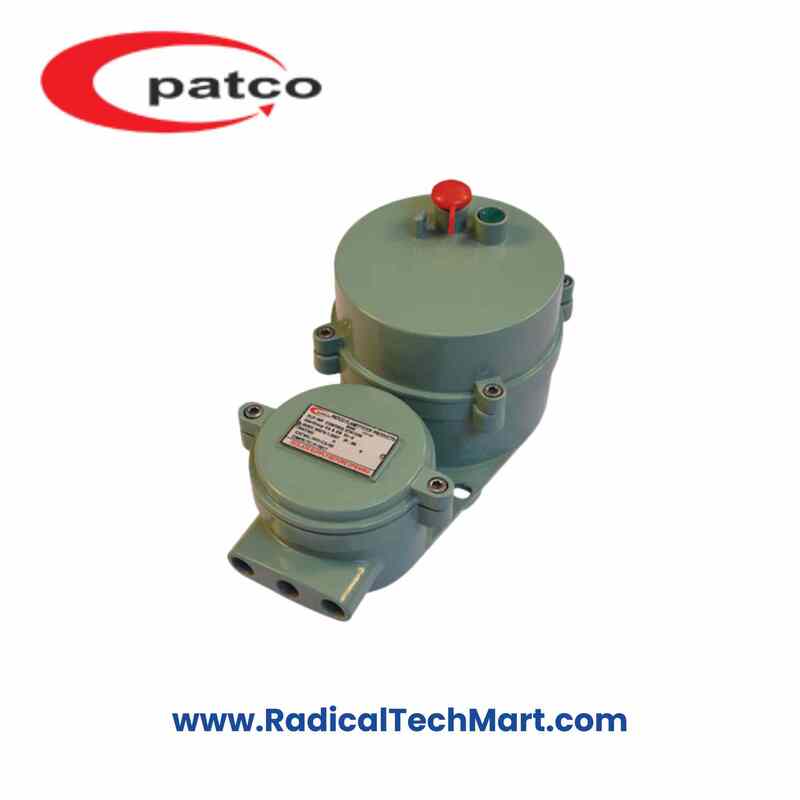

Patco FLP/WP DOL Starter Upto 10HP
Patco FLP/WP DOL Starter up to 10 HP, Zone 1 & 2
Flameproof/weatherproof DOL motor starter for hazardous areas up to 10 HP, certified for Zone 1 & 2 Gas Groups I, IIA, and IIB. IP65 enclosure with robust START/STOP push buttons for safe operation in oil, gas, chemical, and pharma plants.
Customize
Share :
The Patco FLP/WP DOL Starter up to 10 HP is a flameproof and weatherproof motor starter for hazardous area installations in Zone 1 and Zone 2. Designed for gas groups I, IIA, and IIB, it provides safe ON/OFF control for induction motors in oil & gas, chemical, pharmaceutical, and other process plants, with an IP65 enclosure for reliable outdoor use.
Key Features (Bulleted)
Flameproof & weatherproof enclosure as per IS/IEC 60079-1:2007, suitable for Gas Groups I, IIA & IIB.
Up to 10 HP motor rating at 220/415 VAC, 50/60 Hz.
IP65 ingress protection for dust-tight and water jet protection.
LM6 die-cast aluminum alloy body with epoxy polyester powder coating for corrosion resistance.
Green START push button with 1 NO, 10 A contact.
Red mushroom-head STOP push button with padlocking and 1 NC, 10 A contact.
6-way terminal strip on clip-on rail for easy wiring.
Two M20 (¾” ET) cable entries with internal and external earthing points.
Stainless steel hardware for long service life in corrosive atmospheres.
Suitable for Zone 1 & 2 hazardous locations such as refineries, tank farms, solvent storage, and process areas.
Technical Specifications (Table)
| Parameter | Specification |
|---|---|
| Model | FLP/WP DOL Starter up to 10 HP |
| Brand | Patco |
| Application | DOL motor starting in hazardous areas (Zone 1 & 2) |
| Gas Groups | I, IIA, IIB |
| Motor Rating | Up to 10 HP |
| Supply Voltage | 220 / 415 VAC, 50/60 Hz |
| Enclosure Type | FLP / WP (Flameproof & Weatherproof) |
| Protection Standard | IS/IEC 60079-1:2007 |
| Ingress Protection | IP65 |
| Enclosure Material | Die-cast aluminium alloy LM6 |
| Coating | Epoxy Polyester Powder coated |
| START Push Button | Green, 1 NO contact, 10 A |
| STOP Push Button | Red mushroom head, padlockable, 1 NC contact, 10 A |
| Terminals | 6-way, strip type on clip-on rail |
| Cable Entries | 2 × M20 (¾” ET) |
| Earthing | Internal and external earthing provisions |
| Hardware | Stainless steel |
| Mounting | Wall/structure mounting |
Applications (Bulleted)
Crude oil and gas refineries
Petrochemical and solvent storage areas
Chemical and pharmaceutical plants
Paint, ink and coating plants
Hazardous process areas in food & beverage plants
Pump houses in Zone 1 & 2 classified locations
Any motor starting duty in explosive gas atmospheres
What’s in the Box?
Patco FLP/WP DOL Starter enclosure (up to 10 HP)
Built-in START (green) and STOP (red mushroom) push buttons
Internal terminal strip
Earthing hardware
Mounting hardware (where supplied by Patco)
Basic instruction/rating label
FAQ
Q1. For which hazardous areas is this starter certified?
It is suitable for Zone 1 and Zone 2 hazardous locations and Gas Groups I, IIA, and IIB, as per IS/IEC 60079-1.
Q2. What is the maximum motor size supported?
The starter is rated for motors up to 10 HP at 220/415 VAC, 50/60 Hz.
Q3. Is the enclosure weatherproof for outdoor mounting?
Yes, it has an IP65 rating, making it dust-tight and protected against water jets, suitable for outdoor and wash-down areas.
Q4. What type of push buttons are provided?
A green START push button with 1 NO and 10 A contacts and a red mushroom-head STOP push button with 1 NC, 10 A contacts, and a padlock provision for safety lockout.
Q5. How many cable entries are available?
The standard enclosure is provided with two M20 (¾” ET) cable entries along with internal and external earthing points.
Q6. Can this starter be used for both pump and blower motors?
Yes, it can be used to start any compatible 3-phase motor up to 10 HP in Zone 1/2 areas, including pumps, blowers, agitators, and other drives.
