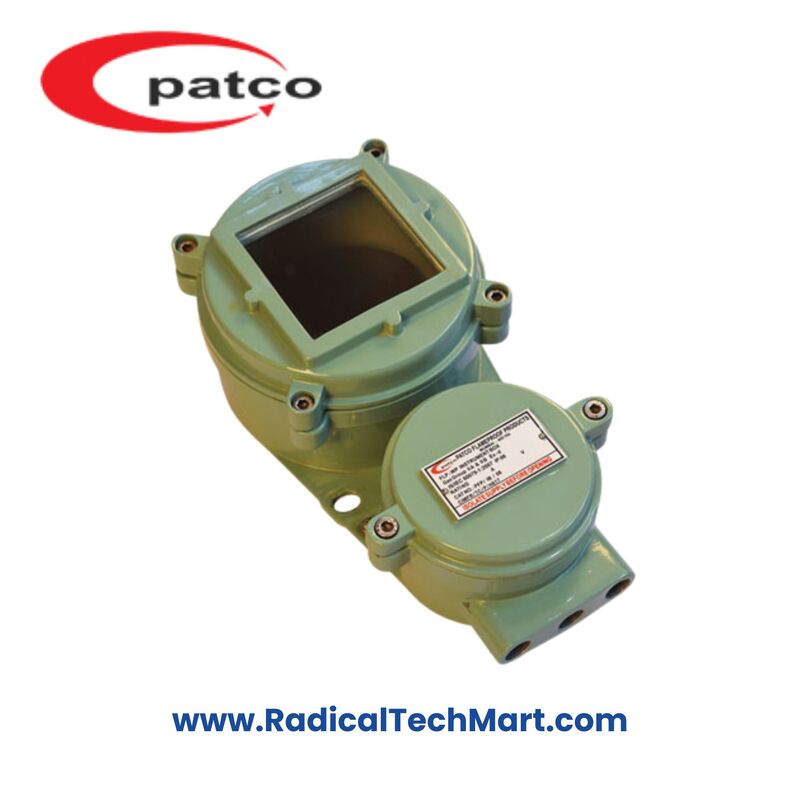

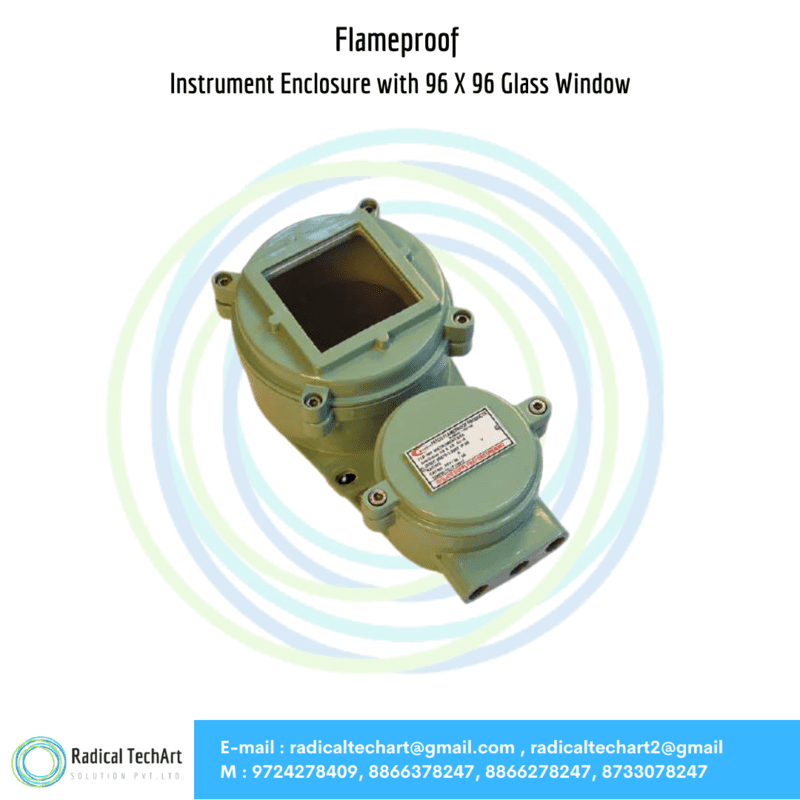

Patco FLP/WP Instrument Enclosure with 96x96 Glass Window

Product Summary:
The Patco FLP/WP Instrument Enclosure with 96x96 mm toughened glass window is built for reliable operation in hazardous gas-prone areas like Zone 1 & 2. Made with die-cast LM6 aluminum alloy, it offers IP65 ingress protection and customizable terminal and cable entry options.

Key Features:

• Catalogue No: PFP/IB/08

• Explosion Protection: IS/IEC-60079-1:2007 certified

• Zone Classification: Zone 1 & Zone 2

• Gas Group: I, IIA, IIB

• Ingress Protection: IP-65 (IS/IEC60529-2001)

• Material: Die Cast Aluminum Alloy LM6

• Glass Window: 96 x 96 mm toughened window

• Terminal: 12-way clip-on rail or strip type

• Paint: Epoxy polyester powder coating

• Earthing: 1 internal & 2 external points

• Cable Entry: 3–5 entries for M20 (¾” ET)

• Hardware: Stainless Steel for corrosion resistance

Applications:

• Oil & Gas Industries

• Petrochemical Plants

• Refineries & Chemical Units

• Pharmaceuticals

• Hazardous Zone Instrument Monitoring

Product Benefits:

• Flameproof and weatherproof for critical environments

• Clear visual access to instruments through the glass window

• Durable, corrosion-resistant aluminum LM6 body

• Flexible terminal and cable entry configurations

• Ensures safety and protection in explosive gas zones



Video Link:

FAQs:

Q1. What is the size of the viewing glass window?
The enclosure includes a toughened 96 x 96 mm glass window for clear instrument visibility.

Q2. Is this enclosure suitable for Zone 1 & 2 areas?
Yes, it meets IS/IEC-60079-1:2007 standards and is certified for use in Zone 1 & Zone 2 environments.

Q3. Can I request customized cable entry options?
Yes, 3–5 cable entries for M20 (¾” ET) are provided, and customization is possible on request.
