Patco FLP/WP Manual Call Point
Patco FLP/WP Manual Call Point – PFP/FA/09, IP65, Zone 1 & 2
Flameproof and weatherproof manual call point with breakable glass and spring-loaded 1NO contact, certified for Zone 1 & 2 hazardous areas for emergency fire alerting.
Download Now!!!
Customize
Share :

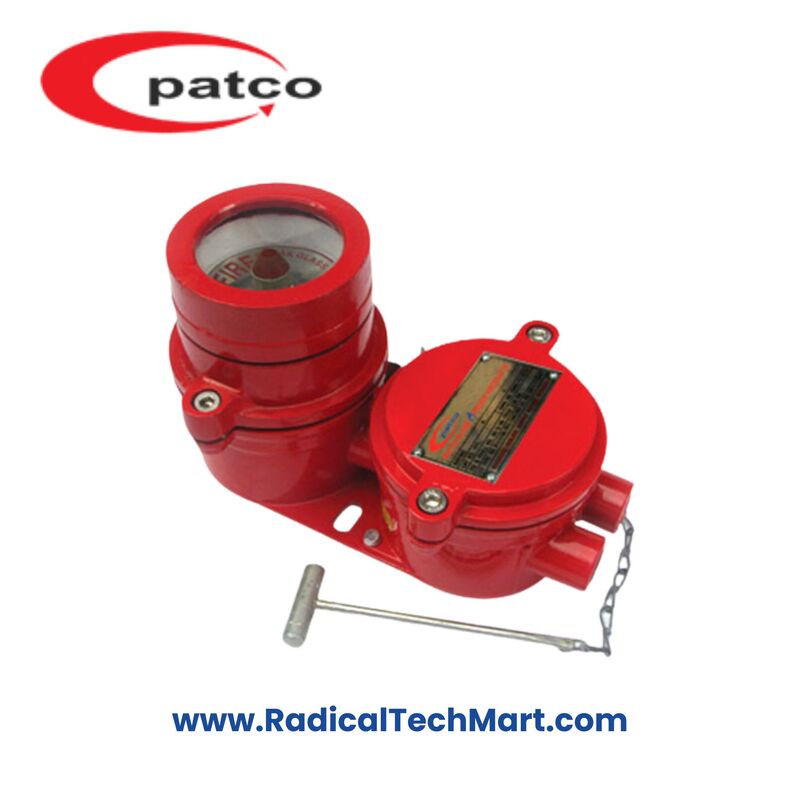

The Patco FLP/WP Manual Call Point PFP/FA/09 is a flameproof and weatherproof emergency device for manual fire alarm activation in hazardous industrial areas. It is certified for Zone 1 & 2 gas atmospheres and built with a robust LM6 aluminum body and IP65 protection.
Key Features
Flameproof/weatherproof manual call point for hazardous areas
Suitable for Gas Group I, IIA, IIB applications
Zone 1 & Zone 2 compliant as per IS/IEC 60079-1:2007
IP65 ingress protection for dust and water jet resistance
Breakable glass window for emergency operation (replaceable)
Spring-loaded actuator with 1 NO contact for reliable signalling
Die-cast aluminium alloy LM6 enclosure with epoxy polyester coating
Stainless steel hardware for corrosion resistance
Dual M20 (3/4" ET) cable entries for easy wiring
Designed for petrochemical, chemical, gas and refinery installations
Technical Specifications (Table)
| Specification | Detail |
|---|---|
| Catalogue No. | PFP/FA/09 |
| Type of Ex-Protection | IS/IEC 60079-1:2007 compliant |
| Zone Classification | Zone 1 & Zone 2 |
| Gas Group | I, IIA, IIB |
| IP Protection | IP65 (IS/IEC 60529-2001) |
| Contact Rating | 10A 415V AC / 1A 250V DC |
| Actuator Type | Spring-loaded, 1 NO |
| Glass Type | Breakable glass, replaceable |
| Material | Die-cast Aluminium Alloy LM6 |
| Paint | Epoxy Polyester Powder Coated |
| Cable Entry | 2 Nos. for M20 (3/4" ET) |
| Hardware | Stainless Steel |
| Construction | Flameproof/weatherproof enclosure |
Applications
Manual fire alarm activation in hazardous areas
Oil and gas plants and terminals
Petrochemical and chemical processing units
Refineries and storage depots
Pharmaceutical and solvent handling areas
Any Zone 1 & 2 classified industrial facility
What’s in the Box?
1 × Patco FLP/WP Manual Call Point – PFP/FA/09
Breakable glass fitted (with provision for replacement)
Cable entry plugs (if supplied by OEM)
Mounting hardware (stainless steel—as per OEM supply)
Basic installation and safety label/markings
FAQ
1) Is this manual call point suitable for explosive gas atmospheres?
Yes. It is designed for hazardous areas classified as Zone 1 & 2 and suitable for Gas Groups I, IIA, and IIB.
2) What is the contact configuration and rating?
It has a spring-loaded 1 NO contact rated at 10A 415V AC and 1A 250V DC.
3) Is the glass reusable after activation?
No. The glass is a breakable type and should be replaced after activation.
4) Can it be installed outdoors?
Yes. With IP65 protection, it is suitable for both indoor and outdoor locations exposed to dust and water jets.
5) What is the material of construction?
The enclosure is made from die-cast aluminum alloy LM6 with epoxy polyester powder coating and stainless steel hardware.
6) How many cable entries are provided?
Two M20 (3/4" ET) cable entries are provided for easy wiring.
