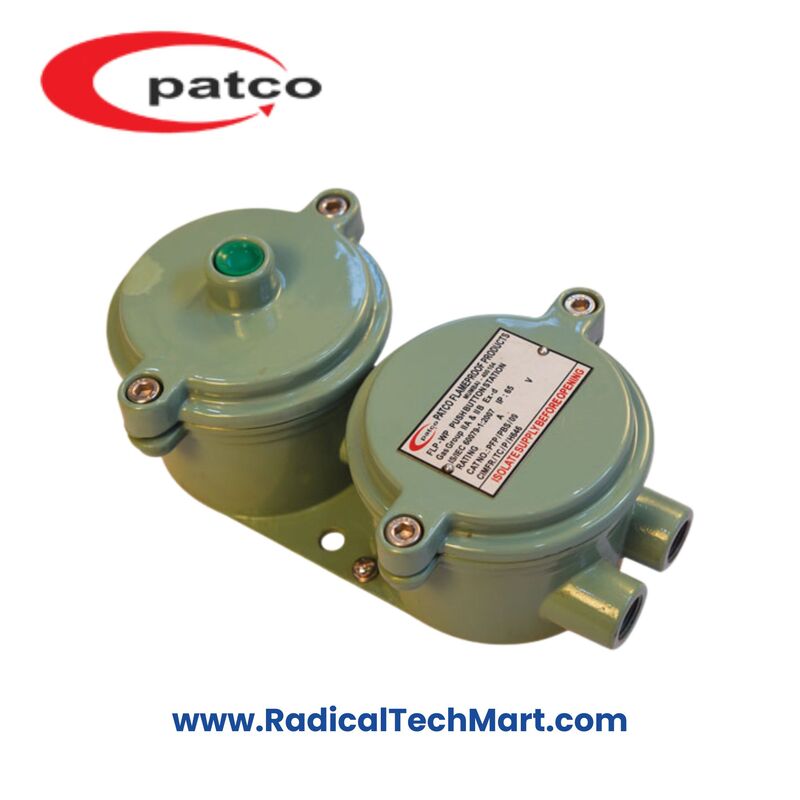

Patco FLP/WP Only Start Push Button Station

Product Summary:
The Patco FLP/WP Only Start Push Button Station is engineered for use in explosive atmospheres, offering a safe and reliable starting control with a 10 AMP-rated green push button.

Key Features:

• Catalogue No: PFP/PBS/09

• Ex-Protection: As per IS 2148-2004 / IEC-60079-1:2007

• Zone Classification: Zone 1 & Zone 2

• Gas Group: I, IIA, IIB

• Ingress Protection: IP-65 (IS/IEC60529-2001)

• Material: High Pressure Die Cast Aluminum Alloy LM6

• Green START Push Button with 1 NO contact (10 AMP)

• Epoxy Polyester Powder Coated finish

• Stainless Steel Hardware

• Cable Entry: 2 Nos. for M20 (3/4” ET)

• Earth Terminals: Internal (1 No.) & External (2 Nos.)

Applications:

• Start control in hazardous industrial machinery

• Petrochemical and oil & gas plant operations

• Flameproof control panels

• Zone 1 & 2 classified areas

• Chemical plants and manufacturing units

Product Benefits:

• Safe and reliable operation in explosive environments

• Durable die-cast construction enhances lifespan

• High ingress protection ensures dust and water resistance

• Quick installation with dual cable entries

• Easy integration in control panels and flameproof boxes

FAQs:

Q1. Is the green START push button lockable?
No, the green START button is a standard momentary push type with a 1 NO contact, not designed for locking.

Q2. Can this be used in outdoor hazardous areas?
Yes, with its IP65 ingress protection and robust coating, it is suitable for outdoor Zone 1 & Zone 2 locations.

Q3. What is the current capacity of the START push button?
The green START button is rated for up to 10 AMP, suitable for various industrial applications.
