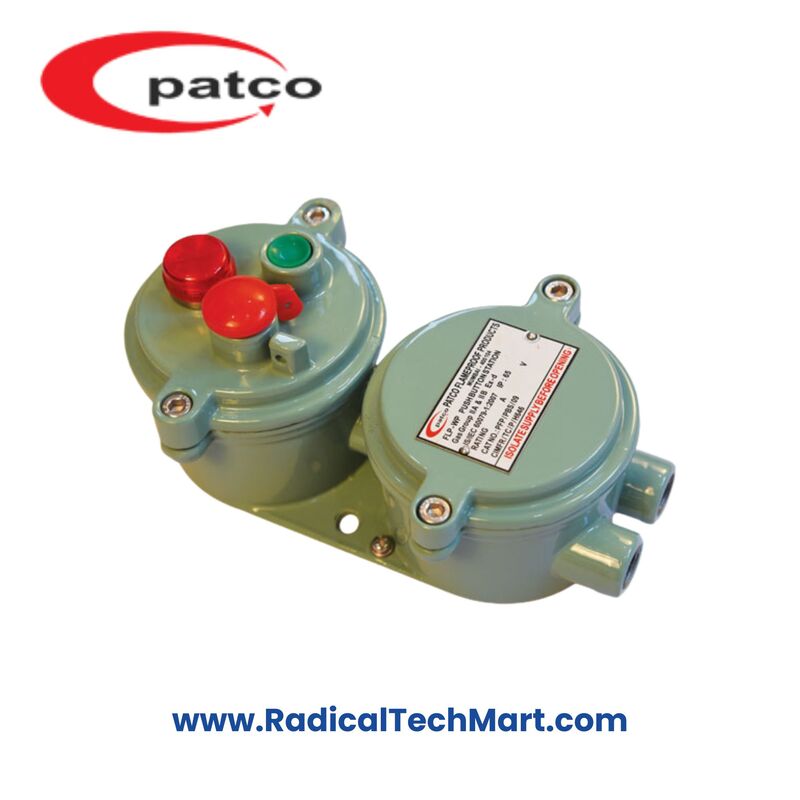

Patco FLP/WP Push Button Station with Indicator

Product Summary:
The Patco FLP/WP Push Button Station with Indicator is a robust flameproof and weatherproof control unit designed for industrial environments with explosive atmospheres. It features start/stop push buttons and a 230V LED indicator for visual status.

Key Features:

• Catalogue No: PFP/PBS/09

• Explosion Protection: As per IS 2148-2004 / IEC-60079-1:2007

• Zone Classification: Zone 1 & Zone 2

• Gas Group: I, IIA, IIB

• IP Rating: IP-65 (IS/IEC60529-2001)

• Enclosure: High Pressure Die Cast Aluminum Alloy LM6

• Finish: Epoxy Polyester Powder Coating

• Indicator Lamp: 1 No. LED, 230V

• Green Push Button: START with 1 NO Contact Element (10 AMP)

• Red Push Button: STOP with Mushroom Head, Pad Lockable, 1 NC Contact (10 AMP)

• Earth Terminals: Internal (1 No.) & External (2 Nos.)

• Cable Entry: 2 Nos. for M20 (¾” ET)

• Hardware: Stainless Steel

Applications:

• Flameproof motor control systems

• Machinery control in explosive environments

• Chemical and petrochemical industries

• Refineries and hazardous process plants

• Start-stop control with visual status indication

Product Benefits:

• LED indicator provides clear visual status

• Durable and corrosion-resistant aluminum LM6 body

• Safe operation in Zone 1 & 2 hazardous locations

• IP65 rating ensures resistance to dust and water

• Lockable STOP button for added safety

FAQs:

Q1. What is the purpose of the LED indicator on this station?
The LED indicator provides a clear visual status of the connected equipment or control system.

Q2. Is the STOP button lockable for safety?
Yes, the red mushroom head STOP button is pad-lockable for emergency safety control.

Q3. Can this station be used in chemical plants?
Absolutely, it’s designed for hazardous environments including chemical and petrochemical plants.
