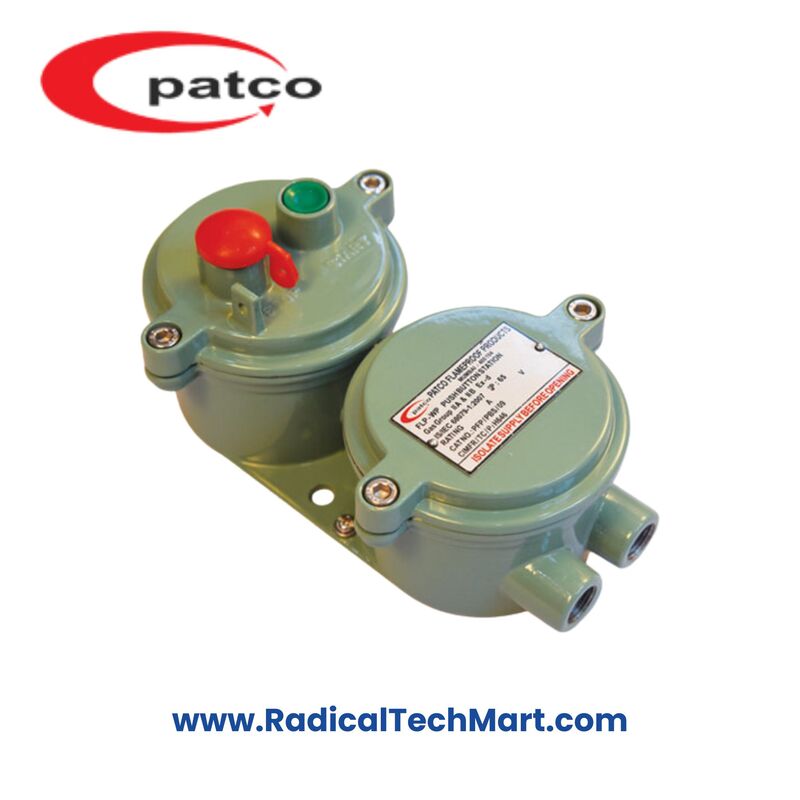

Patco FLP/WP Push Button Station – Start & Stop

Product Summary:
The Patco FLP/WP Push Button Station is a dual-function flameproof control unit designed for safe operation in explosive atmospheres. With a green START button and a red STOP mushroom head button (pad-lockable), it's ideal for industrial motor control in Zone 1 & 2 classified areas.

Key Features:

• Catalogue No: PFP/PBS/09

• Explosion Protection: IS / IEC-60079-1:2007 compliant

• Zone Classification: Zone 1 & Zone 2

• Gas Group: I, IIA, IIB

• IP Rating: IP-65 as per IS/IEC60529-2001

• Enclosure: Die Cast Aluminum Alloy LM6

• Green START Button: 1 NO Contact Element, 10 AMP

• Red STOP Button: Mushroom Head, Pad Lockable, 1 NC Contact, 10 AMP

• Finish: Epoxy Polyester Powder Coated

• Earth Terminals: Internal (1), External (2)

• Cable Entry: 2 Nos. for M20 (¾” ET)

• Hardware: Corrosion-resistant stainless steel

Applications:

• Start/stop control for motors in hazardous areas

• Chemical and petrochemical industries

• Oil & gas installations

• Flameproof control panels

• Industrial machines in Zone 1 & 2

Product Benefits:

• Dual control buttons for enhanced safety

• Flameproof and weatherproof design

• IP65 rating ensures protection from dust and moisture

• Lockable STOP button for emergency safety

• Long-lasting LM6 enclosure with corrosion-resistant finish

Video Link:

FAQs:

Q1. Is the STOP button lockable for safety?
Yes, the red mushroom head STOP button is pad-lockable to prevent unauthorized restart.

Q2. Can this be installed in outdoor areas?
Yes, the IP65 rating and powder-coated finish make it suitable for outdoor industrial environments.

Q3. What’s the electrical rating of the push buttons?
Both the START and STOP buttons are rated for 10 AMP operation.
