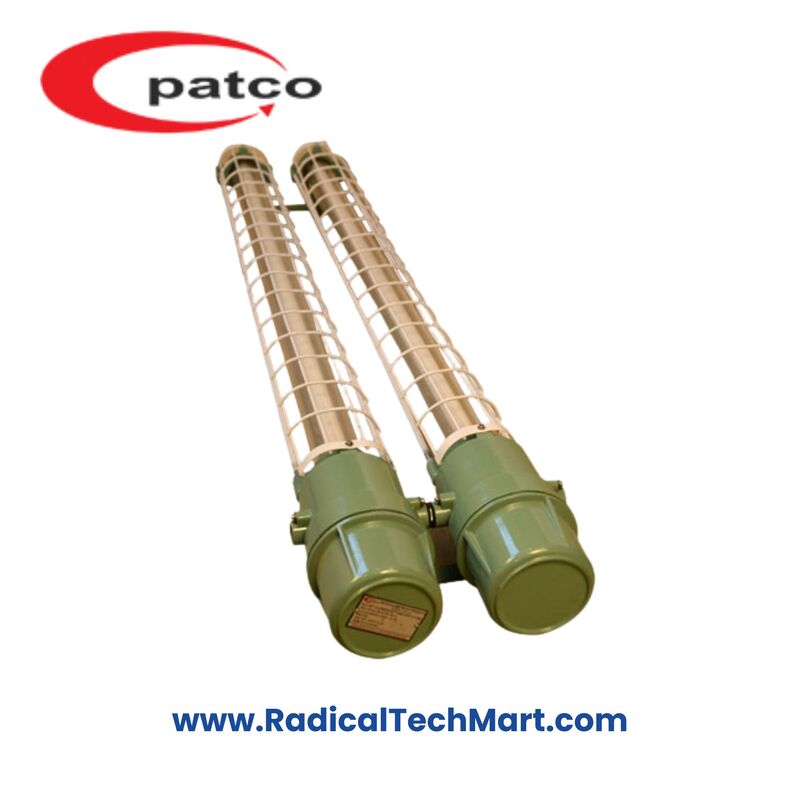

Patco FLP/WP Tube-Light Fitting
Patco FLP/WP Tube-Light Fitting – PFP/FTL/03, IP65, LM6 Enclosure
Flameproof and weatherproof tube-light fitting for hazardous areas, tested for Zone 1 & Zone 2 applications, suitable for MLL/CFL/LED tube lamps in both 2 ft and 4 ft configurations with LM6 aluminum construction.
Download Now!!!
Customize
Share :
The Patco FLP/WP Tube-Light Fitting PFP/FTL/03 is a flameproof and weatherproof lighting fixture designed for safe illumination in hazardous industrial areas. Certified for Zone 1 & Zone 2, it offers robust LM6 aluminum construction and supports multiple lamp options, including MLL, CFL, and LED in both 2-ft and 4-ft variants.
Key Features
Flameproof enclosure as per IS 2148-2004 / IEC 60079-1:2007
Suitable for Zone 1 & Zone 2, Gas Groups I, IIA, IIB
IP65 weatherproof protection (dustproof & jet-water resistant)
Heavy-duty LM6 aluminium die-cast housing
Multiple lamp options:
4FT: 1×36W, 2×36W, 1×18W LED, 2×18W LED
2FT: 1×18W LED, 2×18W LED, 1×9W LED, 2×9W LED
M.S. white-powder-coated wire guard for added safety
Toughened Type “A” Glass as per IS:2206 / 84 (Part-I)
Epoxy polyester powder-coated exterior
Internal and external earthing points
Two M20 (3/4” ET) cable entries
Stainless steel hardware for durability in corrosive environments
Technical Specifications (Table)
| Specification | Detail |
|---|---|
| Catalogue No. | PFP/FTL/03 |
| Ex-Protection | IS 2148-2004 / IEC 60079-1:2007 |
| Zone Classification | Zone 1 & Zone 2 |
| Gas Group | I, IIA, IIB |
| IP Rating | IP65 (IS/IEC 60529-2001) |
| Material | Die-Cast Aluminium Alloy LM6 |
| Lamp Ratings | 1×36W 4FT, 2×36W 4FT, 1×18W LED 4FT, 2×18W LED 4FT, 1×18W 2FT, 2×18W 2FT, 1×9W LED 2FT, 2×9W LED |
| Wire Guard | M.S., white powder coated |
| Glass Type | Type “A” Toughened (IS:2206/84 Part-I) |
| Paint | Epoxy Polyester Powder Coating |
| Earthing | Internal 1 No., External 2 Nos. |
| Cable Entry | 2× M20 (3/4” ET) |
| Hardware | Stainless Steel |
Applications
Chemical & petrochemical plants
Oil & gas refineries
Paint shops & solvent-handling facilities
Hazardous storage areas
Pharmaceutical manufacturing
Pump houses, control rooms & service corridors
Any Zone 1 & 2 classified industrial environment
What’s in the Box?
Patco FLP/WP Tube-Light Fitting (chosen configuration)
Wire guard (M.S. powder-coated)
Type “A” toughened glass
Lamp holder(s) (as per model)
Stainless steel mounting hardware
Cable entry plugs (if supplied by OEM)
Earthing screws
FAQ
1) Which lamp types are supported?
The fitting supports MLL, CFL, and LED tubes in 2-ft and 4-ft configurations.
2) Is this suitable for outdoor use?
Yes, with IP65 protection, it withstands dust, rain, and washdown environments.
3) Can it be used in explosive atmospheres?
Yes, it is certified for Zone 1 & 2 hazardous areas as per IS/IEC 60079-1.
4) What is the enclosure material?
LM6 aluminum alloy, known for corrosion resistance and mechanical strength.
5) How many cable entries are provided?
Two M20 (3/4” ET) cable entries.
6) Does it include a wire guard?
Yes, an MS white powder-coated wire guard is included.
