PIC-165 Heat Pump
₹4,193.00 ₹5,570.00
Download Now!!!
HEAT PUMP CONTROLLER PiC-165
7 Segment Display 4 X 16.5mm (.0.40”) (Red) 7 Segment Display 4 X 9mm (.0.35”) (Amber)
HP, LP, AUX/WFS, SPP fault trip protection for Compressor.
Overload trip protection for Compressor, Pump & Fan.
Product Details
HEAT PUMP CONTROLLER PiC-165

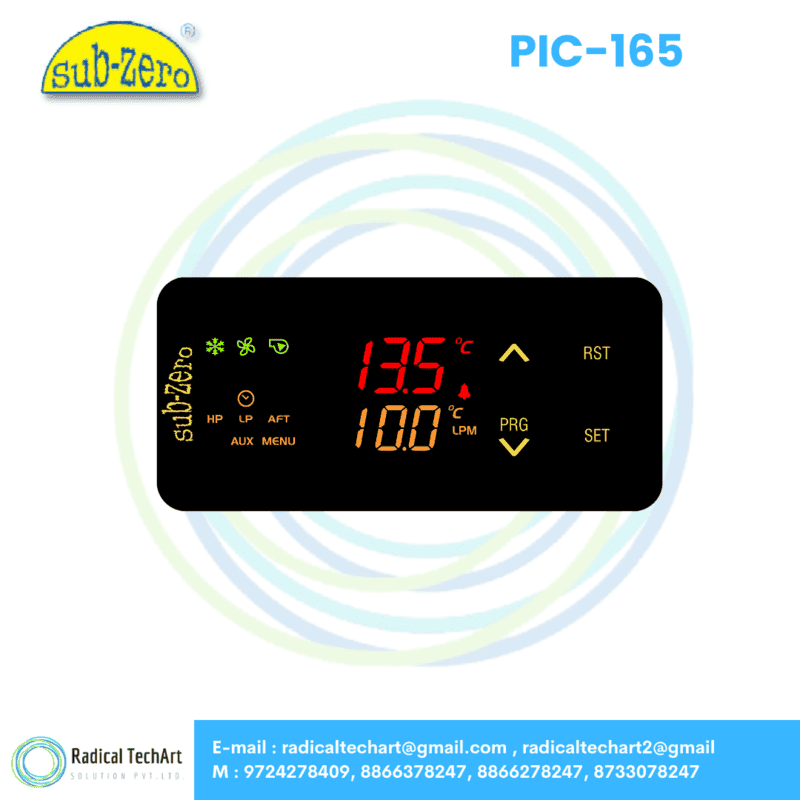

| Display | 7 Segment Display 4 X 8.6mm (.0.33”) (Red) 7 Segment Display 4 X 4.9mm (.0.27") (Amber) |
| Probe Inputs | Control (Liquid), Antifreeze Flow Sensor Input:2-30 LPM(for 1/2” & 3/4”) & 1 to 60 LPM(for 1") |

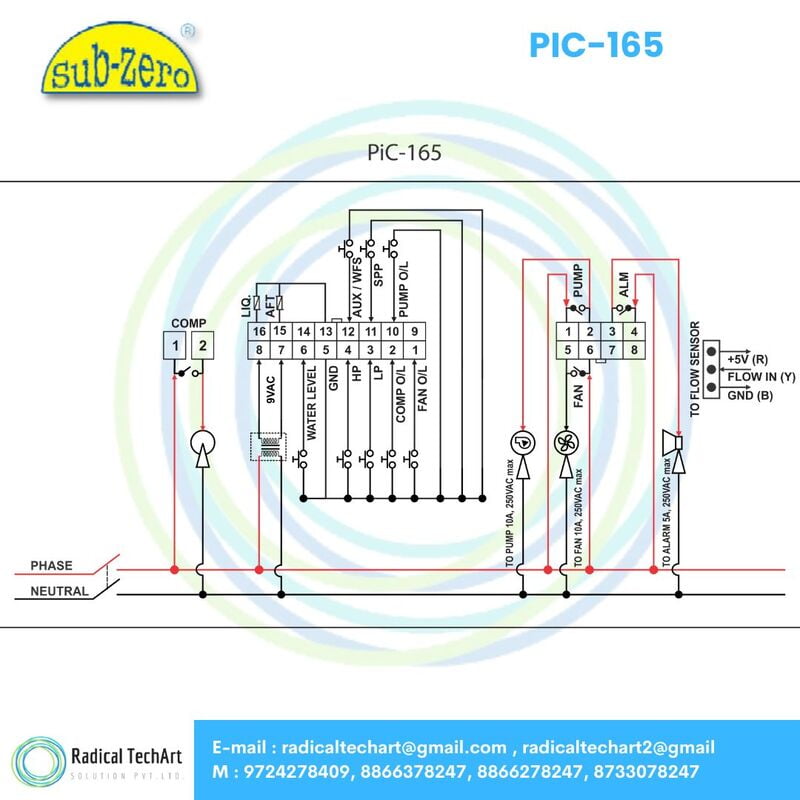

| Digital Inputs | HP, LP, AUX/WFS, COMP O/L, FAN O/L, PUMP O/L, SPP, Water Level |
| Relay Outputs | Compressor : 20(8)A Fan : 10A Pump : 10A Alarm : 5A |
| Power Supply | 9Vac from External Transformer, External Transformer Input 230Vac, +/- 20%, 50Hz/60Hz |
| Temperature Range | -40.0°C to +80.0°C (Resolution : 0.5°C) |
| Size | 78 x 36mm |
| Mounting Type | Panel Mount, Panel Cutout : 71 x 29mm |
| Application | Process Chiller, Heat Pump |
