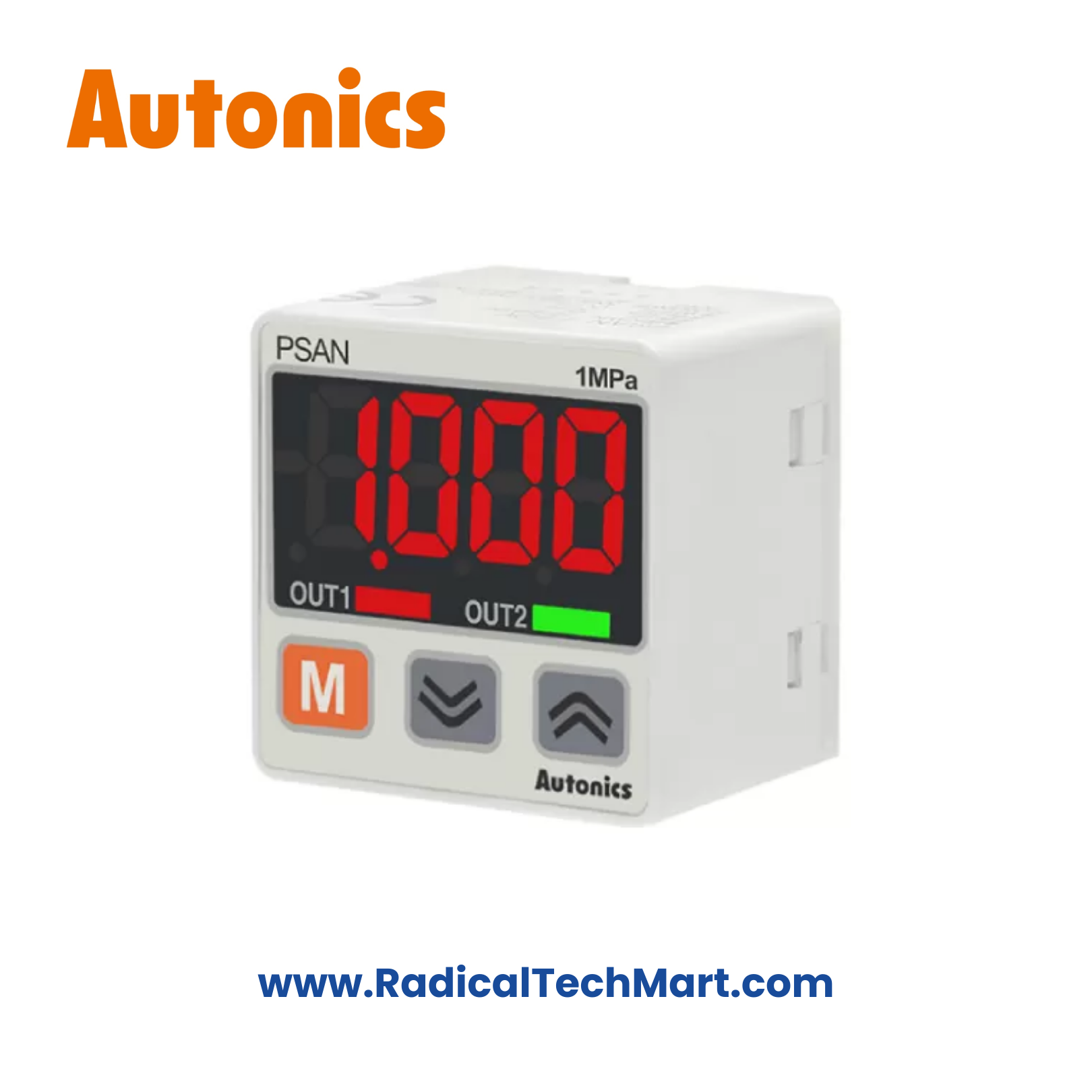

PSAN-1CPA-RC1/8 Autonics Pressure Transmitter
Autonics PSAN-1CPA-RC1/8 Digital Pressure Transmitter (0–1 MPa, PNP, 4–20 mA)
Compact digital pressure transmitter with LED display, supporting PNP outputs and 4–20 mA analog signal.
Designed for industrial pneumatic and fluid pressure monitoring with high accuracy and stable performance.
The Autonics PSAN-1CPA-RC1/8 is a digital pressure transmitter with a built-in LED display, designed for accurate pressure measurement and control in industrial automation systems. It supports PNP open-collector outputs and 4–20 mA analog output, making it suitable for PLC, HMI, and control panel integration in pneumatic and fluid applications.
Key Features
Digital pressure transmitter with 4½-digit LED display
Pressure range: 0 to 1 MPa (static pressure)
PNP open-collector control outputs
Analog output: 4–20 mA
Power supply: 12–24 V DC
Multiple output operation modes
(Hysteresis / Window / Auto sensitivity / Forced output)Fast response time (as low as 2.5 ms)
Auto-shift, zero-point adjustment, hold function
Compact design for panel or direct port mounting
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PSAN-1CPA-RC1/8 |
| Series | PSAN |
| Pressure Type | Static pressure |
| Rated Pressure Range | 0 to 1 MPa |
| Display Type | 7-segment LED, 4½ digit |
| Display Accuracy | ±0.5% F.S. (0–50 °C) |
| Power Supply | 12–24 V DC (±10%) |
| Control Output | PNP open collector, 2 outputs |
| Load Current | ≤ 100 mA |
| Analog Output | 4–20 mA (±2% F.S.) |
| Pressure Port | Rc 1/8 |
| Applicable Medium | Non-corrosive gas/fluid |
| Response Time | 2.5 / 5 / 100 / 500 / 1000 ms |
| Protection Rating | IP40 (connector type) |
| Operating Temperature | −10 to +50 °C |
Applications
Pneumatic pressure monitoring
Hydraulic systems (non-corrosive fluids)
PLC & HMI-based automation panels
Compressors & air systems
Industrial machinery & OEM equipment
Process automation pressure control
What’s in the Box?
PSAN-1CPA-RC1/8 Pressure Transmitter
Instruction manual
Unit sticker
FAQ
Q1. What pressure range does this model support?
It supports 0 to 1 MPa static pressure.
Q2. Does it provide analog output?
Yes, it provides 4–20 mA analog output.
Q3. What type of control output is available?
PNP open-collector outputs (2 outputs).
Q4. Is it suitable for liquid pressure?
Yes, for non-corrosive liquids compatible with SUS316L.
Q5. Can it be used directly with PLC analog input?
Yes, the 4–20 mA output is PLC compatible.
