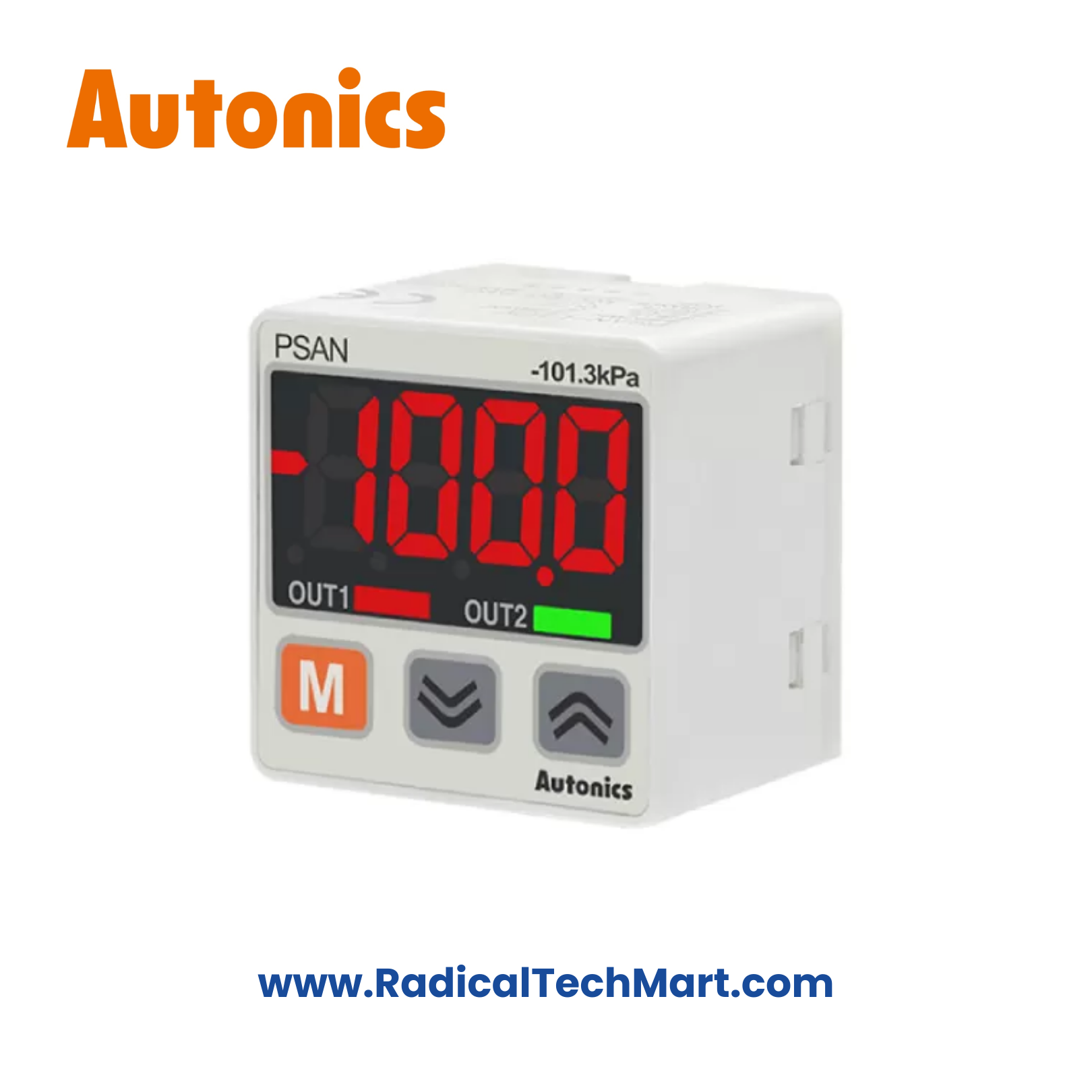

PSAN-V01CPA-RC1/8 Autonics Pressure Transmitter
₹5,359.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | PSAN-V01CPA-RC1/8 |
| Applicable fluid | (Pneumatic type) Air, Non-corrosive gas |
| Pressure port direction | Rear fitting |
| Pressure port | Rc1/8 |
| Connection type | Connector type(connector type cable: 2m) |
| Pressure type | Negative pressure |
| Rated pressure range | 0.0 to -101.3kPa |
| Display pressure unit | kPa, kgf/cm², bar, psi, mmHg, inHg, mmH?O |
| Control output PNP open collector | PNP open collector |
| Option input/output | Current output(DC4-20mA) |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Voltage output type: Max. 50mA Current output type: Max. 75mA |
| Protection structure | IP40 |
| Approval | CE |
| Control output Hysteresis | Min. display interval |
| Control output Repeat error | ±0.2% F.S. ±Min. display interval |
| Control output Response time | Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms |
| Environment Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment Ambient humidity | 30 to 80% RH, storage: 30 to 80% RH |
| Material | Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass |
| Weight | Approx. 165g(approx. 80g) |
