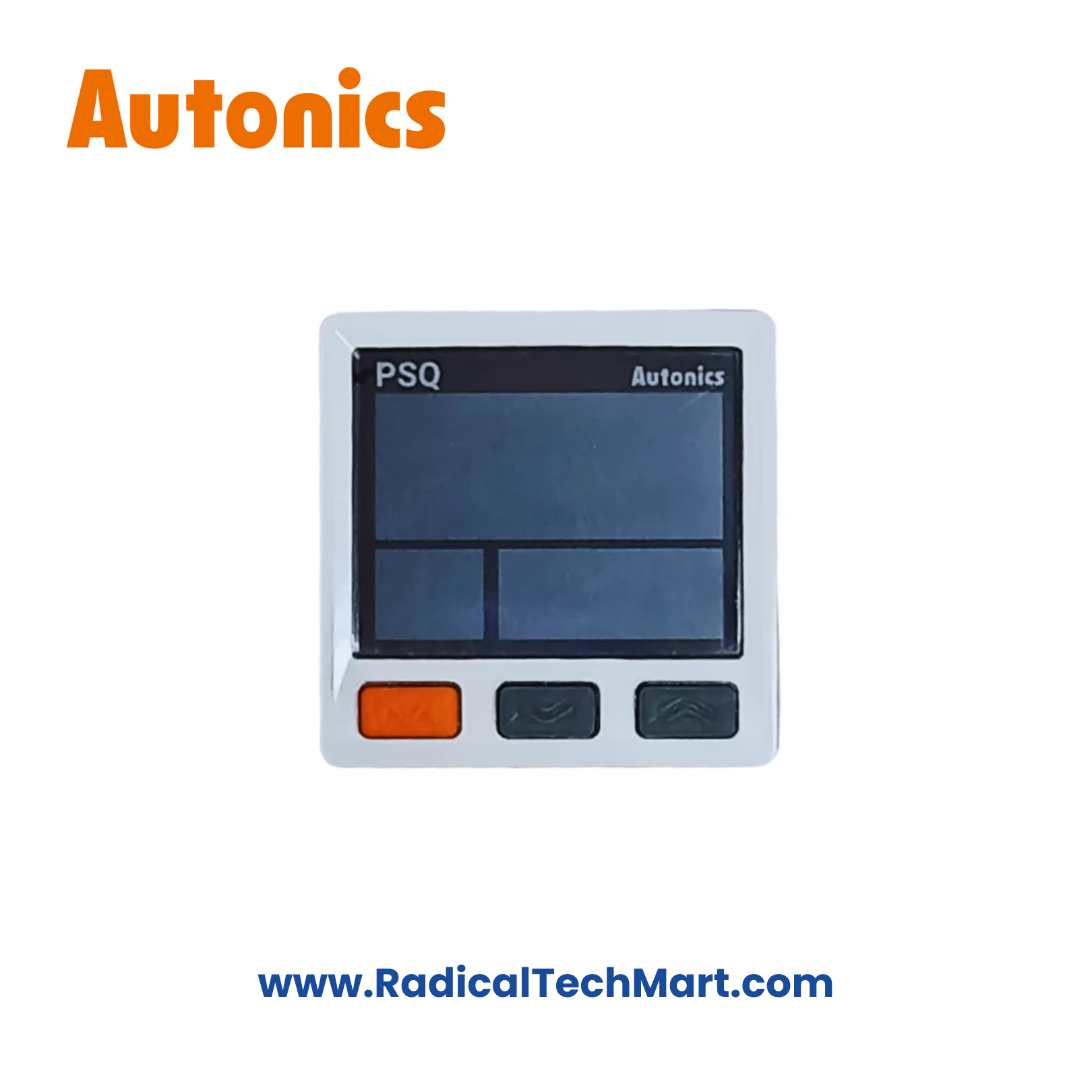

PSQ-C01C-RC 1/8 Autonics Digital Pressure Sensor
₹7,622.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | PSQ-C01C-RC1/8 |
| Applicable fluid | (Pneumatic type) Air, Non-corrosive gas |
| Pressure port | Rc1/8 |
| Connection type | Connector type(connector type cable: 2m) |
| Pressure type | Compound pressure |
| Rated pressure range | -100 to 1,000kPa |
| Display pressure unit | MPa, kPa, kgf/cm², bar, psi, mmHg, inHg, mmH₂O |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 50mA |
| Protection structure | IP40 |
| Material | Front case: polycarbonate, Rear case: Polybutylene terephthalate + glass 15%, Pressure port: stainless steel 303 |
| Control output_Hysteresis | Min. display interval |
| Control output_Repeat error | ±0.2% F.S. ±Min. display interval |
| Control output_Response time | Select one: 2.5ms, 5ms, 10ms, 25ms, 50ms, 100ms, 250ms, 500ms, 1,000ms, 5,000ms |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 30 to 80% RH, storage: 30 to 80% RH |
| Weight | Approx. 165g(approx. 80g) |
