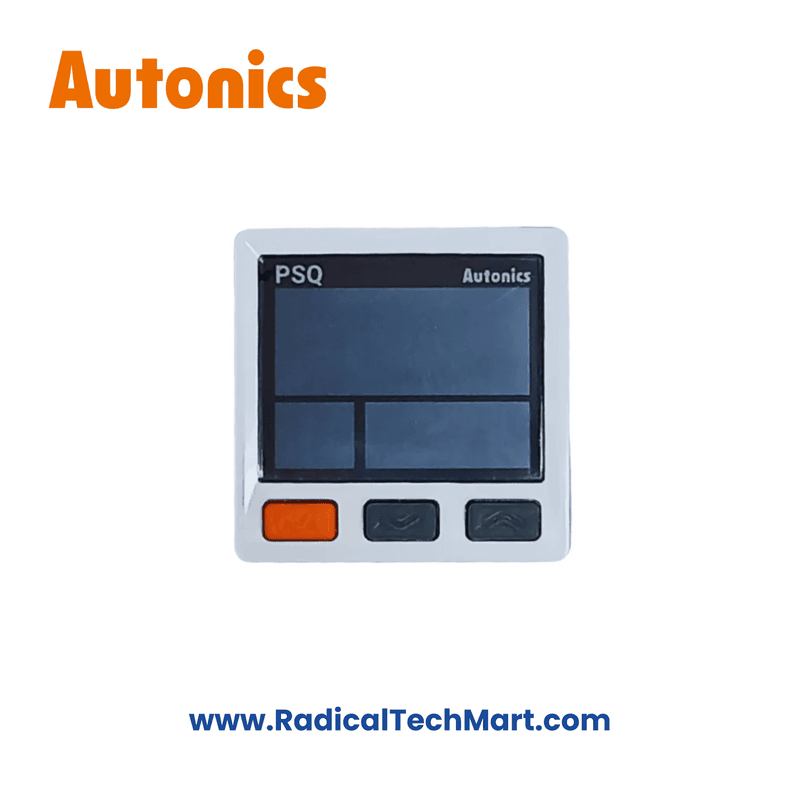

PSQ-C1CU-RC 1/8 Autonics Digital Pressure Sensor
₹10,163.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | PSQ-C1CU-Rc1/8 |
| Applicable fluid | (Pneumatic type) Air, Non-corrosive gas |
| Pressure port direction | Rear fitting |
| Pressure port | Rc1/8 |
| Connection type | Connector type(connector type cable: 2m) |
| Pressure type | Compound pressure |
| Rated pressure range | -100 to 1,000kPa |
| Display pressure unit | MPa, kPa, kgf/cm², bar, psi, mmHg, inHg, mmH₂O |
| Control output | Select one at parameter setting NPN open collector output PNP open collector output |
| Option input/output | Select one at parameter setting Voltage(1-5VDC  ) outputCurrent(DC4-20mA) output AUTO SHIFT, REMOTE ZERO, HOLD input |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 50mA(current output: Max. 70mA) |
| Protection structure | IP40 |
| Control output_Hysteresis | Min. display interval |
| Control output_Repeat error | ±0.2% F.S. ±Min. display interval |
| Control output_Response time | Select one: 2.5ms, 5ms, 10ms, 25ms, 50ms, 100ms, 250ms, 500ms, 1,000ms, 5,000ms |
| Weight | Approx. 165g(approx. 80g) |
