Product Details
FEATURES:
- 8 Channels
- On delay / Interval / Cyclic ON first / Cyclic OFF first
- Parallel / Sequential Operation
- Cascade Output for Channel Expansion
- Start, Hold Input
- Start Delay Programmable
- Reset Input
- 5 Time Ranges
- 10 Years Memory Retention
SPECIFICATION:

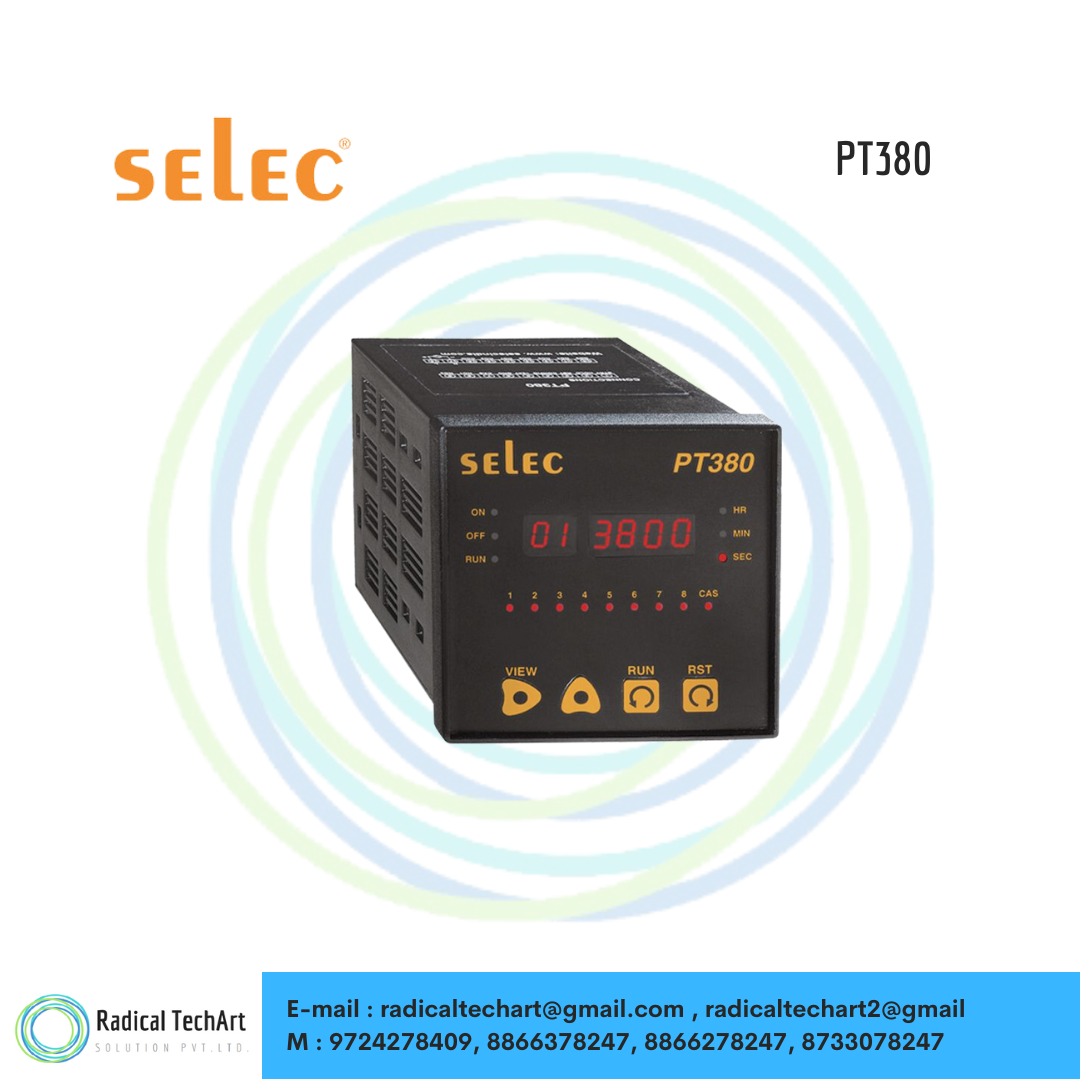

| Model Name/Number | PT380 |
| Display Type | LED |
| Frequency | 50 Hz |
| Automation Grade | Automatic |
| Mounting Type | Panel Mount |
| Range | 99.99, 999.9sec, 99:59min:sec, 99.59hr:min, 999.9 hr |
| Brand | Selec |
| Usage/Application | Industrial |
| Display Configuration | 2 + 4 Digits |
| Relay Contact | 8 Channels |
| Feature | Memory Retention |
| Operating Modes | ON Delay / Interval OFF / Cyclic ON First / Cyclic OFF First |
| Counting Direction | Up |
| Supply Voltage | 85 to 270V AC / DC |

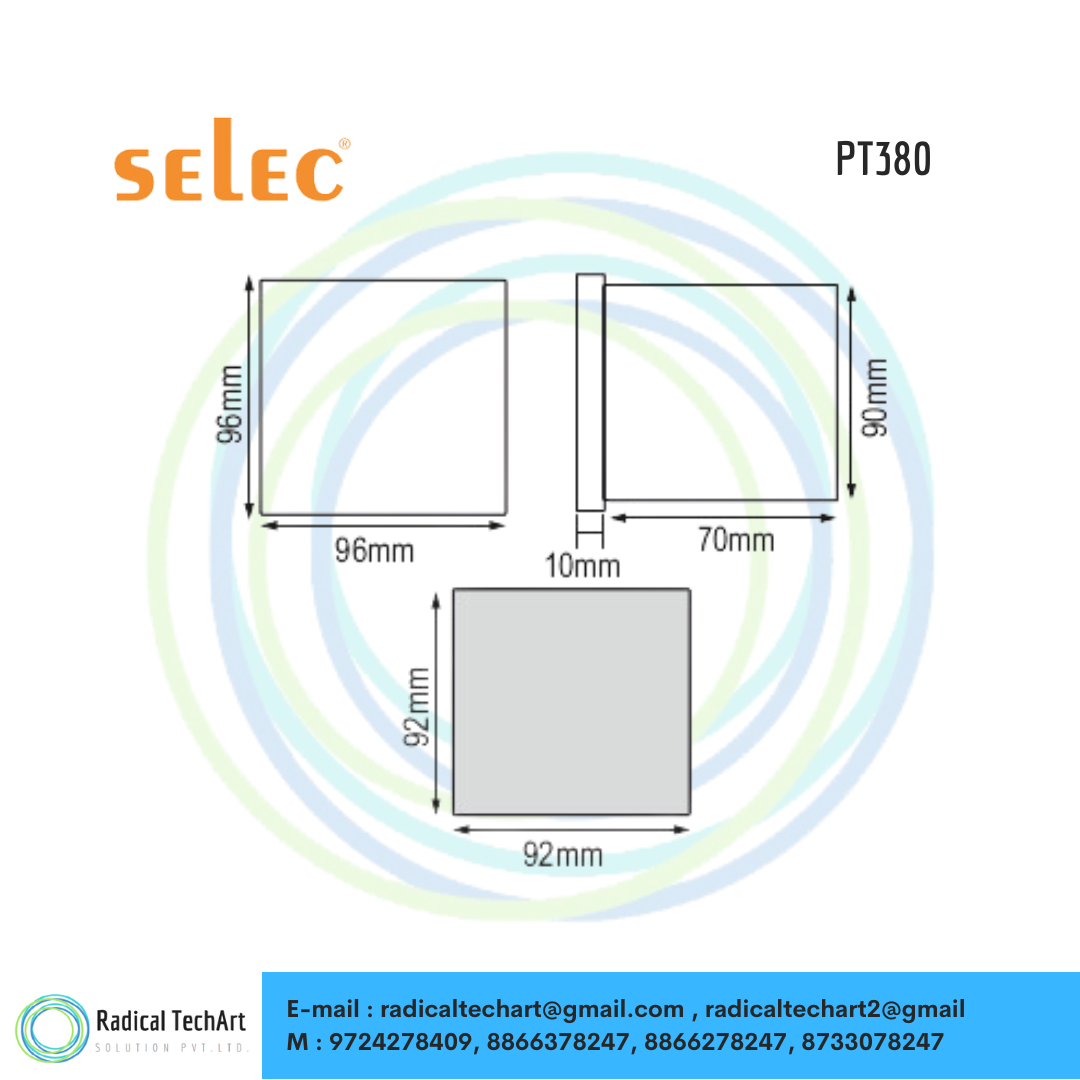

| Size | 96x96mm |
