Overview

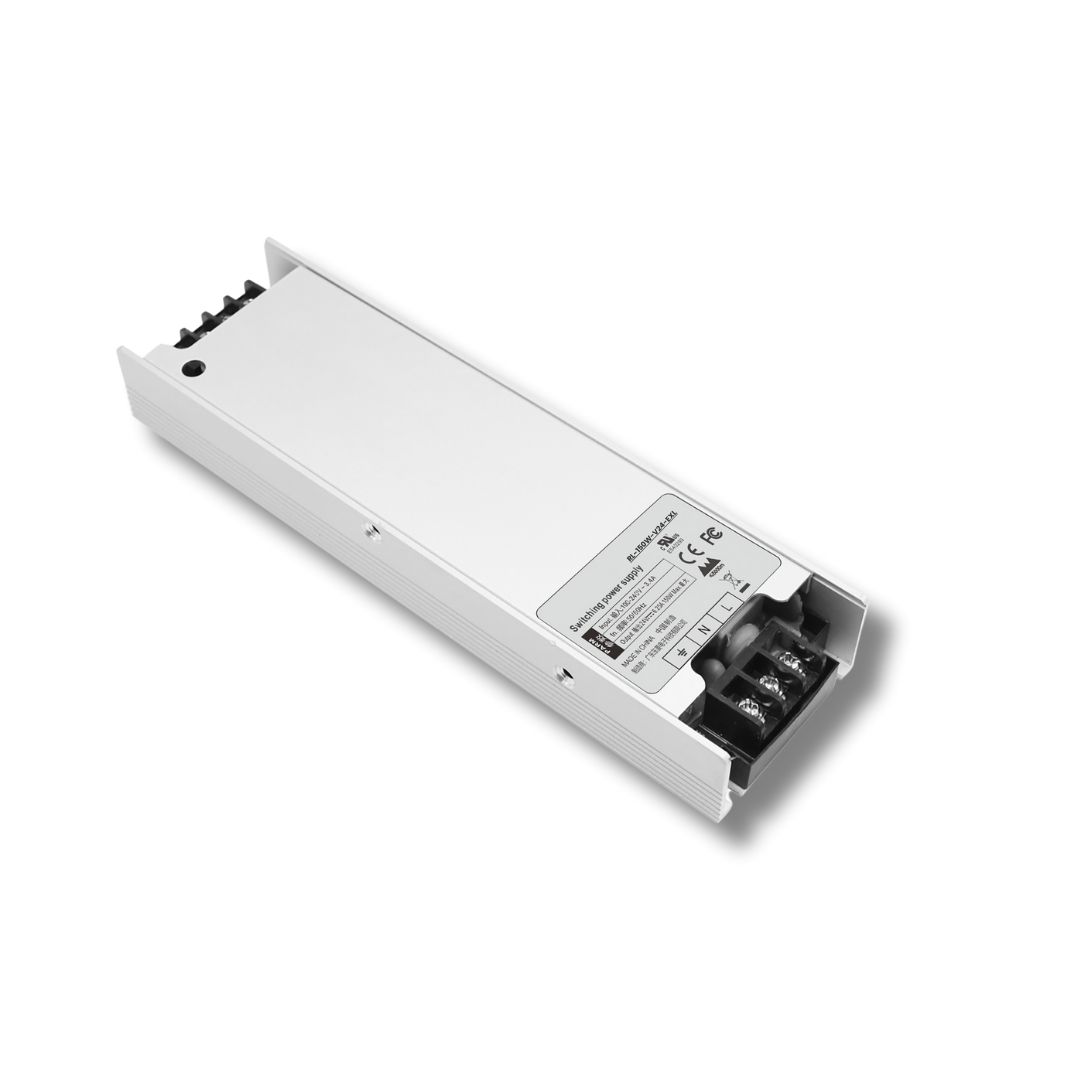

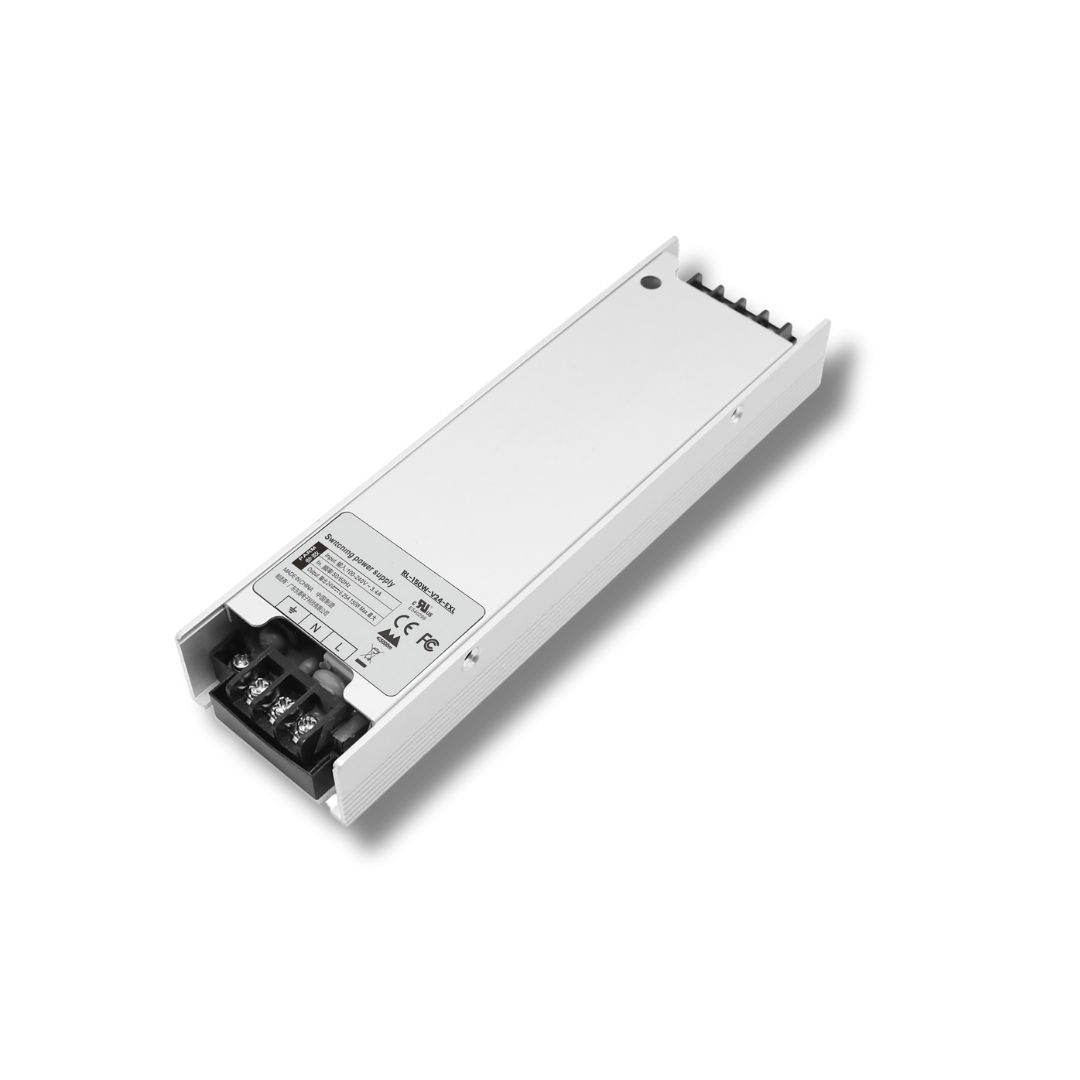

The RL-100W-EXL is a high-reliability 100W chassis-type switching power supply designed for industrial control panels, automation systems, and OEM machinery. It operates over a wide 85–264 VAC input voltage range and provides stable, regulated DC output suitable for continuous industrial operation.

With Class I construction, low no-load power consumption, and compliance with EN55035 / EN55032 Class B EMC standards, the RL-100W-EXL ensures safe and noise-free performance in demanding industrial environments.

Key Features

• Rated output power: 100W

• Wide input voltage range: 85–264 VAC, 50/60 Hz

• Withstands VAC surge input for 5 seconds

• Maximum operating temperature up to 70°C

• Low no-load power consumption (≤0.5W)

• EMC compliant: EN55035 / EN55032 Class B

• Protection functions: Overload, Overvoltage, Short-Circuit

• Overvoltage Category III

• Compact chassis design for panel mounting

• 3-year manufacturing warranty

Available Variants

The RL-100W-EXL series is available in the following DC output variants:

• 12V DC – 8.34A

• 15V DC – 6.67A

• 24V DC – 4.17A

• 36V DC – 2.78A

• 48V DC – 2.08A

All variants share the same electrical, safety, and mechanical design, differing only in output voltage and current rating.

Applications

• Industrial control systems

• Automation and PLC panels

• Industrial machinery & OEM equipment

• Power systems and instrumentation panels

• Rail transit electronics

• Industrial and commercial lighting systems

Why Choose This SMPS?

The RL-100W-EXL offers an optimal balance of power capacity, efficiency, and compact design. Its wide input voltage tolerance, strong EMC compliance, and comprehensive protection features make it a dependable choice for OEMs, panel builders, and automation engineers working in harsh industrial conditions.

FAQs

Q1. What input voltage range does the RL-100W-EXL support?
It supports a wide input voltage range of 85–264 VAC at 50/60 Hz.

Q2. What output voltage and current options are available?
The RL-100W-EXL is available in:

• 12V DC – 8.34A

• 15V DC – 6.67A

• 24V DC – 4.17A

• 36V DC – 2.78A

• 48V DC – 2.08A

Q3. Is this SMPS suitable for industrial automation panels?
Yes. It is designed for industrial control panels, PLC systems, and OEM machinery.

Q4. What protection features are included?
The power supply includes overload, overvoltage, and short-circuit protection with automatic hiccup-mode recovery.

Q5. Can it operate at high ambient temperatures?
Yes. The RL-100W-EXL can operate at temperatures up to 70°C, suitable for enclosed panels.

Q6. Is the RL-100W-EXL EMC compliant?
Yes. It complies with EN55035 / EN55032 Class B conducted emission standards.

Q7. What is the no-load power consumption?
No-load power consumption is ≤0.5W, helping reduce energy losses.

Q8. What warranty is provided?
The RL-100W-EXL comes with a 3-year manufacturing warranty.
