Overview

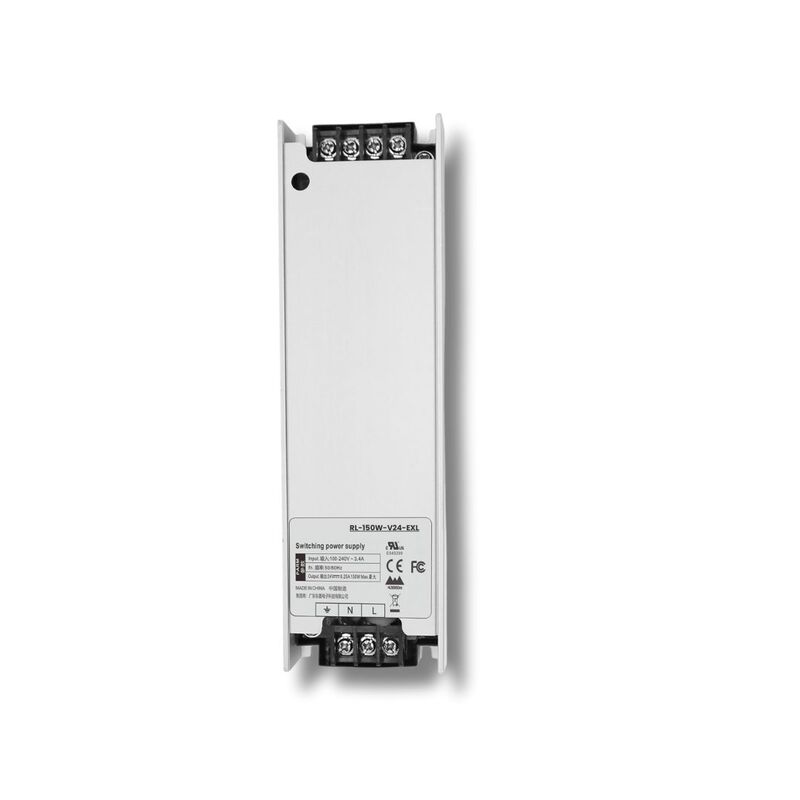

The RL-150W-EXL is a high-performance 150W chassis-type switching power supply engineered for industrial control panels, automation systems, and OEM machinery. Designed with a wide 85–264 VAC input range, it ensures stable DC output even under fluctuating supply conditions commonly found in industrial environments.

This SMPS features Class I construction, excellent thermal performance up to 70°C, and compliance with EN 55035 / EN 55032 Class B EMC standards, making it ideal for noise-sensitive and mission-critical applications.

Key Features

• Rated output power: 150W

• Wide AC input range: 85–264 VAC, 50/60 Hz

• Withstands VAC surge input for 5 seconds

• Maximum operating temperature up to 70°C

• Low no-load power consumption ≤ 0.5W

• EMC compliant: EN 55035 / EN 55032 Class B

• Protection features: Overload, Overvoltage, Short-Circuit

• Overvoltage Category III

• Compact chassis mounting design

• 3-year manufacturing warranty

Available Variants

The RL-150W-EXL series is available in the following DC output configurations:

• 12V DC – 12.5A

• 15V DC – 10A

• 24V DC – 6.25A

• 36V DC – 4.17A

• 48V DC – 3.13A

All variants maintain identical electrical, mechanical, and safety characteristics, differing only in output voltage and current rating.

Applications

• Industrial automation & PLC panels

• Control and instrumentation panels

• OEM industrial machinery

• Power distribution systems

• Rail transit electronics

• Industrial & architectural lighting systems

Why Choose This SMPS?

The RL-150W-EXL delivers an excellent balance of power density, efficiency, and reliability. Its wide input tolerance, low standby losses, strong EMC compliance, and comprehensive protection circuitry make it a dependable choice for OEMs, panel builders, and automation engineers seeking long-term operational stability.

FAQs

Q1. What is the input voltage range of RL-150W-EX L?
It supports a wide input voltage range of 85–264 VAC at 50/60 Hz.

Q2. Which DC output voltages are available?
12V, 15V, 24V, 36V, and 48V DC variants are available.

Q3. Is this SMPS suitable for automation panels?
Yes, it is specifically designed for industrial control and automation panels.

Q4. What protection features are included?
Overload, overvoltage, and short-circuit protection with automatic recovery.

Q5. Can it operate in high-temperature environments?
Yes, it can operate at ambient temperatures up to 70°C.

Q6. Is it EMC compliant?
Yes, it complies with EN 55035 / EN 55032 Class B standards.

Q7. What is the no-load power consumption?
No-load power consumption is ≤ 0.5 W.

Q8. What warranty is provided?
The product includes a 3-year manufacturing warranty.
