S+S RegelTechnik 1201-3112-1000-029

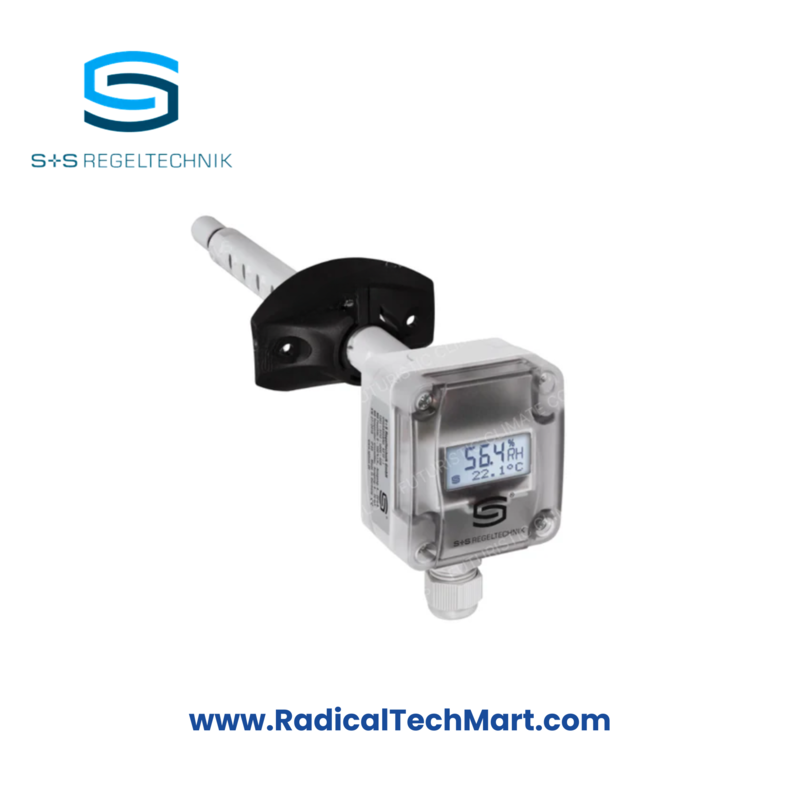

RegelTechnik KFTF-I Duct Humidity and Temperature Sensor (Part No. 1201-3112-1000-029)

The RegelTechnik KFTF-I Duct Humidity and Temperature Sensor is a high-performance, calibratable sensor designed to measure relative humidity and temperature in non-aggressive, dust-free atmospheres. Manufactured by HYGRASGARD®, this sensor is suitable for applications in refrigeration, air conditioning, ventilation, and clean room technology. It is known for its reliable performance and long-term stability, with various configuration options to meet specific application requirements.

Specifications:

• Part Number: 1201-3112-1000-029
• Sensor Type: Digital long-term stable sensor for humidity measurement
• Output Options:
  • 0-10 V
  • 4-20 mA
• Temperature Measurement:
  • Adjustable Temperature Range:
    • -35°C to +35°C
    • -35°C to +75°C
    • 0°C to +50°C
    • 0°C to +80°C
• Humidity Range: 0-100% RH
• Calibratability:
  • ±2.0% (HYGRASGARD® KFF - SD/KFTF - SD)
  • ±1.8% (KFF/KFTF - 20)
• Power Supply: 15-36V DC
• Filter:
  • Plastic sinter filter (optional metal sinter filter)
• Housing Material:
  • Impact-resistant plastic with snap-on lid
  • Quick-locking screws for some models
• Connecting Head:
  • Plastic, polyamide with screws, quick-locking
  • Cable gland M16, including strain relief
• Protective Tube:
  • Length: 235mm
  • Includes mounting flange
• IP Rating: IP65 (dust-tight and protected against water jets)
• Color: Traffic white (similar to RAL 9016)
• Application Areas:
  • Refrigeration
  • Air conditioning
  • Ventilation
  • Clean room technology

The RegelTechnik KFTF-I sensor is an ideal choice for precise environmental monitoring in industrial and commercial settings. Its long-term stability and wide range of configuration options make it a reliable solution for various measurement applications.
