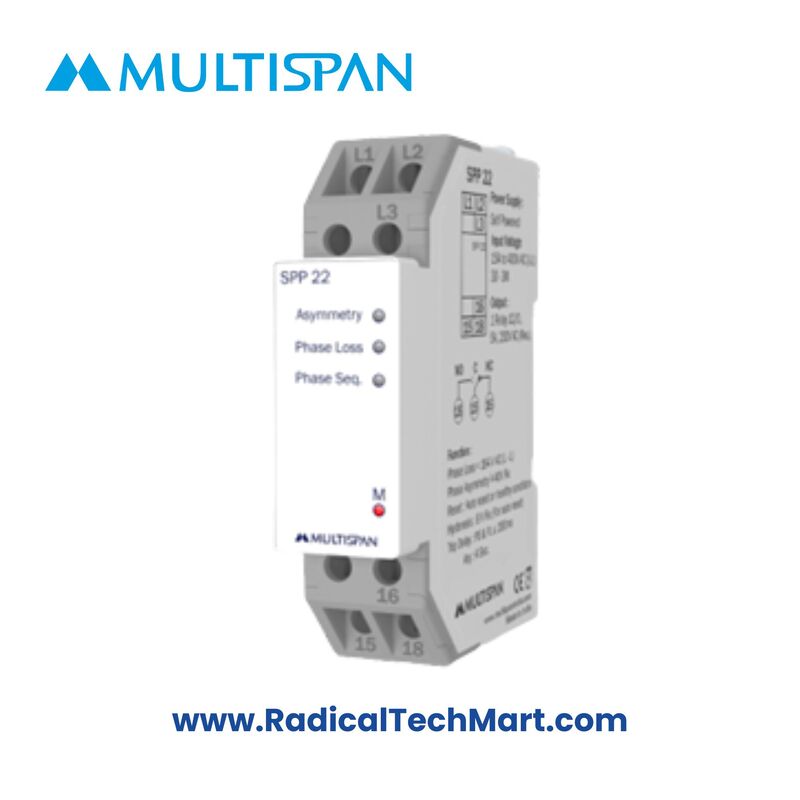

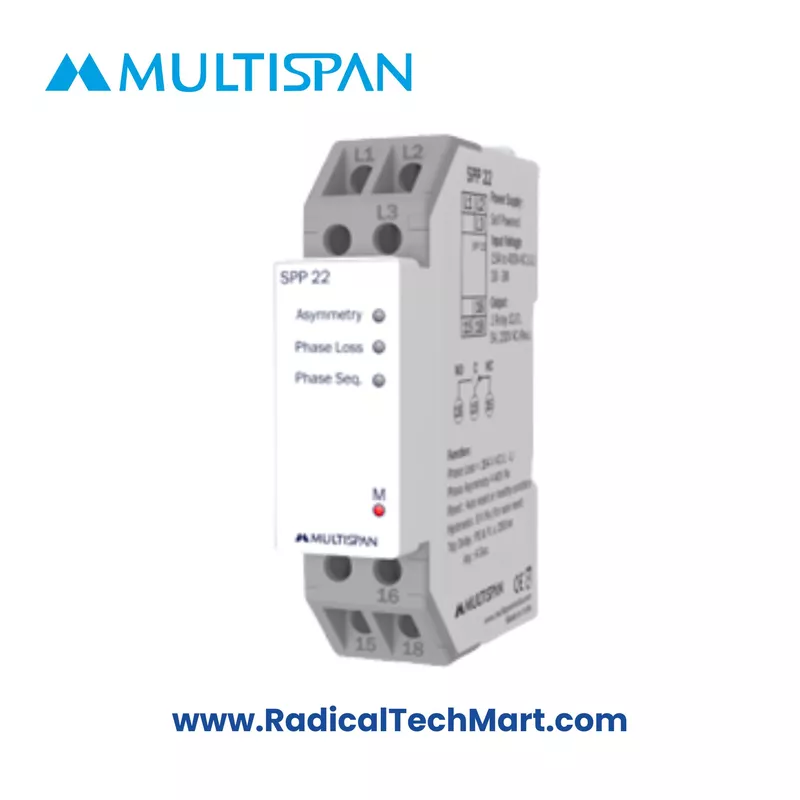

Multispan SPP-22 + V22-RYB Phase Protection & Indication Combo
Compact 3-phase protection and indication combo featuring the SPP-22 phase fault relay and V22-RYB LED phase indicator for safeguarding motors, control panels, and industrial equipment.
The Multispan SPP-22 + V22-RYB combo provides an efficient, compact, and reliable solution for 3-phase fault protection and phase indication in industrial panels. The SPP-22 relay safeguards motors and equipment from phase loss, asymmetry, and incorrect phase sequence, while the V22-RYB module provides clear LED visualization of R-Y-B phase status.
Key Features
SPP-22 Phase Protection Relay
Protects against phase loss, phase asymmetry, and wrong phase sequence
Auto-reset after normal conditions are restore
Self-powered from monitored L-L voltage
LED indication for fault and healthy status
V22-RYB LED Phase Indicator
Bright R-Y-B LED display
Helps technicians quickly identify phase availability & sequence
Compact design for all panel types
Combo Benefits
Combined protection and indication in one package
DIN-rail or panel mounting
Voltage range: 280–500V AC (L-L)
Saves panel space and wiring
Ideal for motor, pump and industrial control applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Models Included | SPP-22 (Protection Relay), V22-RYB (Phase Indicator) |
| Input Voltage | 280–500V AC (L-L) |
| Protection (SPP-22) | Phase Loss, Asymmetry, Phase Sequence |
| Reset Type | Auto Reset |
| Indication (V22-RYB) | Individual R-Y-B bright LEDs |
| Mounting | DIN-rail / Panel mount |
| Output (SPP-22) | Trip relay (potential free) |
| Construction | Compact ABS/PC enclosure |
| Operating Temp | Typically 0–55°C |
| Applications | MCC panels, pump panels, DG panels, HVAC systems, industrial machinery |
Applications
Electrical control panels
Motor Control Centers (MCCs)
Submersible pump and borewell panels
Road construction & mobile equipment panels
HVAC, chillers & cold room panels
Diesel Generator (DG) control panels
Machine automation and industrial machinery
What’s in the Box?
1 × Multispan SPP-22 Phase Protection Relay
1 × Multispan V22-RYB LED Phase Indicator
Mounting accessories (DIN/panel clamps)
Quick wiring guide
Instruction sheet
FAQ
Q1. What is the difference between SPP-22 and V22-RYB?
SPP-22 provides electrical protection by tripping during phase faults, while V22-RYB is a visual indicator showing phase availability and sequence.
Q2. Can both devices be installed in the same panel?
Yes, they are compact and designed for DIN-rail or panel mounting, making them suitable for combined installation.
Q3. Does SPP-22 support automatic reset?
Yes, the relay auto-resets once normal phase conditions return.
Q4. What voltage is required to operate the combo?
Both devices work on a 280–500V AC (L-L) three-phase supply.
Q5. Is this combo suitable for motor panels and pumps?
Absolutely. It helps prevent motor burnouts caused by phase loss, reverse sequence, or imbalance.
Q6. Does the V22-RYB show an incorrect phase sequence?
It visually highlights correct phase availability, helping in diagnosing reverse sequence when paired with SPP-22.
