Subzero MICRO CHILL MC-110

Product Summary:

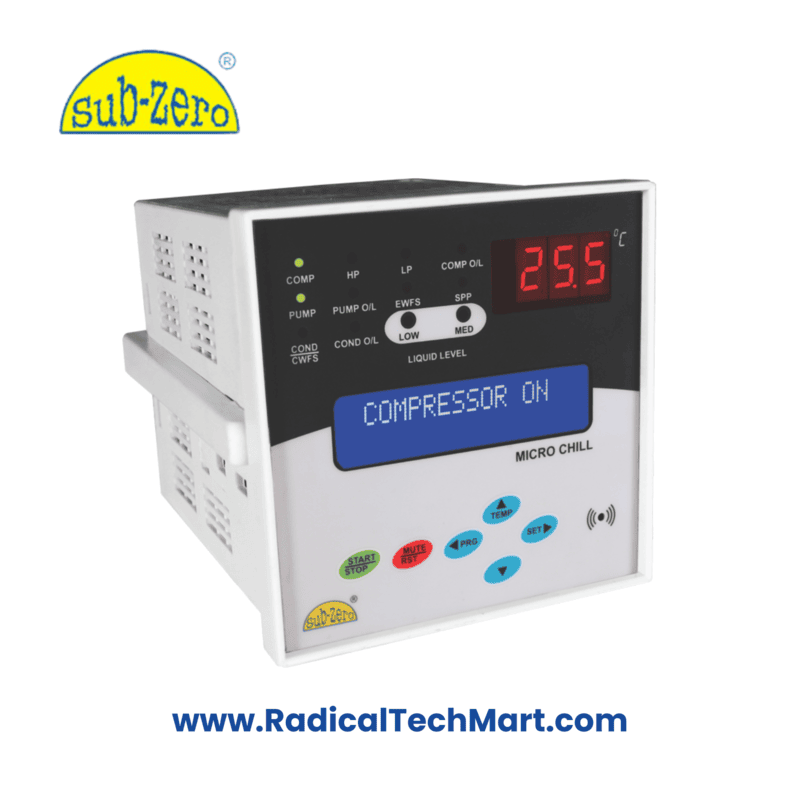

The PVR MICRO CHILL MC-110 is a versatile and intelligent single compressor chiller controller designed to integrate all essential functions, display key parameters, and protect system components. It’s equipped with LCD + LED displays, 2 NTC probes, and multiple protection features for optimal operation.

Key Features:

• Integrated chiller controller for single compressor systems

• Backlit LCD with 7-segment and LED indicators

• Dual NTC probes for liquid and antifreeze temperature monitoring

• Wide temperature range: -30°C to +70°C

• Stores last 10 fault events for easy diagnostics

• Auto/Manual reset options for HP, LP, and antifreeze trips

• Relay outputs for compressor, pump, and alarm or water solenoid valve

• Comprehensive fault protection including HP, LP, Pump O/L, Comp O/L, and more

Applications:

• Industrial chiller systems

• HVAC cooling systems

• Water-cooled refrigeration units

Product Benefits:

• Real-time monitoring of temperature and faults

• Enhances system safety with full-range trip protections

• User-friendly operation with backlit LCD and LED indicators

• Built-in memory for fault history improves maintenance

FAQs:
Q1: What type of compressors does the MC-110 support?
A1: The MC-110 is designed for single compressor chiller systems, integrating all control and protection functions.

Q2: How does the MC-110 help in fault diagnosis?
A2: It stores the last 10 fault events in memory and displays fault messages on the LCD, making troubleshooting simple.

Q3: Can the MC-110 operate in low-temperature environments?
A3: Yes, it supports a temperature range of -30°C to +70°C, making it suitable for a variety of chiller applications.
