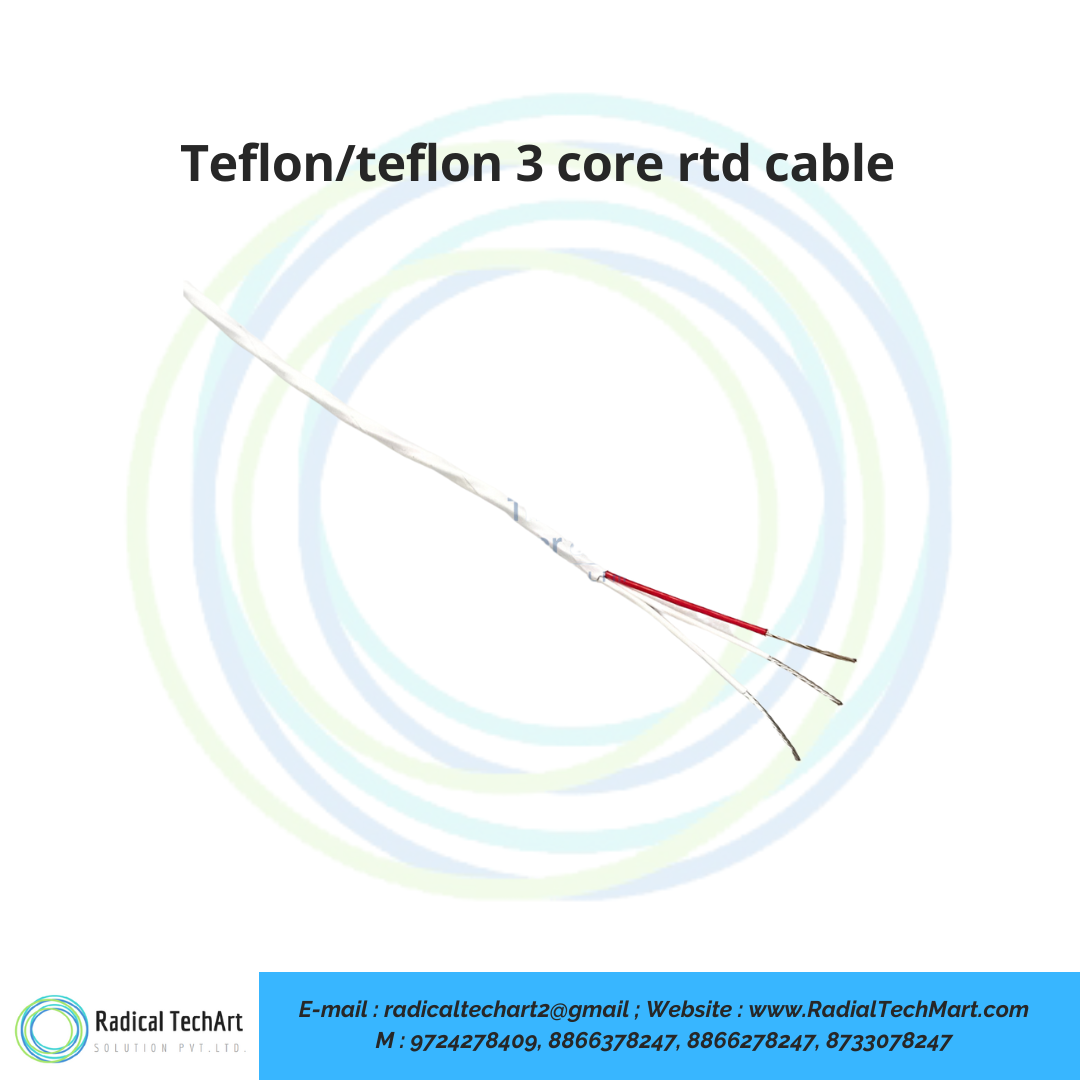

3 Core Teflon RTD Cable for Temperature Sensors

A. Product Overview

Teflon/Teflon 3 Core RTD Cable is designed for connecting RTD temperature sensors to controllers, indicators, transmitters and monitoring instruments. The cable has three internal conductors covered with Teflon, also known as PTFE insulation.

PTFE insulation is known for its high temperature resistance, chemical resistance and excellent electrical insulation properties. Because of this, the cable is suitable for industrial environments where normal PVC or rubber insulated wires may fail due to heat, oil, chemicals or harsh working conditions.

This cable is commonly used with RTD sensors in motors, control panels, heaters, industrial machinery, process equipment and temperature measurement systems.

B. Working Principle

An RTD sensor works by changing its resistance according to temperature. When the temperature increases or decreases, the resistance value of the RTD element also changes. This signal is then sent to a temperature controller, indicator or transmitter.

The 3 core RTD cable carries this resistance signal from the RTD sensor to the measuring instrument. In a 3-wire RTD connection, the extra wire helps reduce the effect of lead wire resistance, which improves temperature measurement accuracy compared to a simple 2-wire connection.

The Teflon insulation protects the conductors from heat, chemicals and electrical leakage, helping the RTD signal remain stable and reliable in industrial applications.

C. Why It Is Used

Teflon/Teflon 3 Core RTD Cable is used because temperature sensor wiring often passes through hot, oily, chemical or electrically sensitive environments. A normal wire may become hard, damaged or unreliable in such conditions.

This cable is used for:

Reliable RTD temperature sensor wiring
High temperature industrial applications
Better electrical insulation
Chemical resistant wiring
Motor temperature monitoring
Control panel wiring
Heater and furnace temperature sensing
Industrial process temperature measurement
Reducing signal error in 3-wire RTD connections
Longer cable life in harsh environments

The main benefit of this cable is that it helps maintain accurate and stable temperature signal transmission between the RTD sensor and the measuring instrument.

D. Suitable Buyers

This product is suitable for:

Industrial automation companies
Panel builders
Temperature sensor manufacturers
RTD sensor suppliers
Electrical contractors
Maintenance teams
OEM machine manufacturers
Motor manufacturers and repair workshops
Heater manufacturers
Pharmaceutical plants
Chemical plants
Food processing plants
Packaging machine manufacturers
HVAC system manufacturers
Process industries
Instrumentation engineers
Purchase managers looking for RTD cable

FAQ

1. What is Teflon/Teflon 3 Core RTD Cable?

Teflon/Teflon 3 Core RTD Cable is a PTFE insulated cable with three conductors used for connecting RTD temperature sensors to controllers, indicators, transmitters and monitoring instruments.

2. Why is Teflon insulation used in RTD cable?

Teflon insulation is used because it provides high temperature resistance, chemical resistance and excellent electrical insulation. This makes the cable suitable for harsh industrial environments.

3. Where is 3 Core RTD Cable used?

3 Core RTD Cable is commonly used in motors, control panels, industrial heaters, process equipment, temperature sensors, machinery and industrial temperature monitoring systems.

4. Can this cable be used for PT100 RTD sensors?

Yes, Teflon/Teflon 3 Core RTD Cable is commonly used for PT100 RTD sensor wiring where a 3-wire RTD connection is required.

5. What is the advantage of 3 core RTD cable?

A 3 core RTD cable helps reduce the effect of lead wire resistance in temperature measurement. This helps improve accuracy compared to a 2-wire RTD connection.

6. Is Teflon RTD Cable suitable for high temperature applications?

Yes, Teflon RTD Cable is suitable for high temperature applications because PTFE insulation can handle higher temperatures better than many standard cable insulation materials.

7. Is this cable chemical resistant?

Yes, PTFE insulation offers good resistance against many chemicals, oils and industrial fluids, making it suitable for chemical plants and process industries.

8. Can this cable be used in control panels?

Yes, it can be used in control panels for connecting RTD sensors to temperature controllers, indicators, PLC systems and transmitters.

9. Why is Teflon cable more expensive than normal cable?

Teflon cable is more expensive because PTFE insulation provides better heat resistance, chemical resistance, durability and electrical insulation compared to common PVC or rubber insulated cables.

10. Who should buy Teflon/Teflon 3 Core RTD Cable?

This cable is suitable for industrial buyers, OEMs, panel builders, maintenance teams, sensor manufacturers and instrumentation engineers who need reliable RTD sensor wiring for demanding applications.
