Teflon Shielded RTD Cable with PTFE Insulation

A. Product Overview

Teflon Teflon Shielded Teflon RTD Cable is designed for accurate and stable temperature signal transmission in demanding industrial environments. Teflon, also known as PTFE, is known for its high temperature resistance, chemical resistance, and excellent electrical insulation properties.

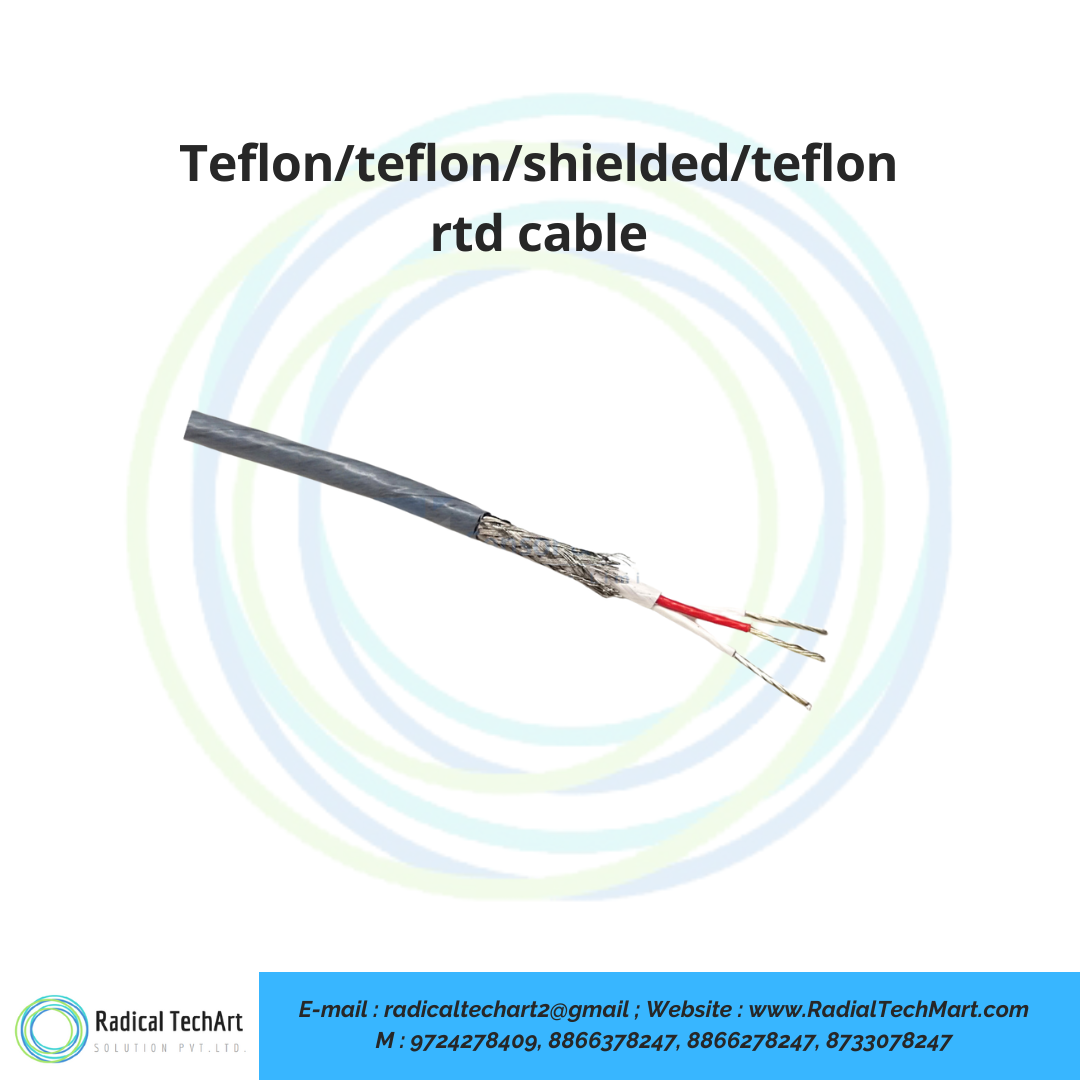

This cable has Teflon insulation on the conductors, a shielding layer for noise protection, and an outer Teflon jacket for additional safety and durability. The shielding layer helps reduce electromagnetic interference and radio frequency interference, which is important in industrial areas where motors, drives, panels, and heavy electrical equipment are used.

Teflon Shielded RTD Cable is commonly used with RTD temperature sensors in process industries, automation systems, control panels, machinery, aerospace equipment, medical equipment, and chemical plants.

B. Working Principle

An RTD sensor measures temperature by changing its electrical resistance according to temperature variation. The RTD cable carries this resistance signal from the RTD sensor to a temperature controller, transmitter, indicator, PLC, or data acquisition system.

In Teflon Teflon Shielded Teflon RTD Cable, the Teflon insulation protects the conductor from heat, chemicals, moisture, and electrical leakage. The shielding layer protects the RTD signal from outside electrical noise, electromagnetic interference, and radio frequency interference.

The outer Teflon jacket gives an extra protective layer against high temperature, chemicals, oil, moisture, and mechanical wear. This construction helps maintain accurate and stable signal transmission in harsh industrial conditions.

C. Why It Is Used

Teflon Shielded RTD Cable is used where normal cables may not provide reliable performance due to high temperature, chemicals, or electrical interference.

It is mainly used for:

• Accurate RTD signal transmission
• Protection from electromagnetic interference and radio frequency interference
• High temperature resistance
• Chemical resistance
• Better electrical insulation
• Low noise temperature measurement
• Protection in harsh industrial environments
• Reliable connection between RTD sensors and control instruments
• Long cable life in demanding applications
• Stable performance near motors, drives, and control panels

This cable is preferred where temperature measurement accuracy, signal stability, and cable durability are important.

D. Suitable Buyers

Teflon Teflon Shielded Teflon RTD Cable is suitable for:

• Temperature sensor manufacturers
• RTD sensor suppliers
• Industrial automation companies
• Control panel manufacturers
• Instrumentation engineers
• Process industries
• Chemical plants
• Pharmaceutical plants
• Food and beverage industries
• Aerospace equipment manufacturers
• Medical equipment manufacturers
• Furnace and oven manufacturers
• Heating equipment manufacturers
• Machine manufacturers
• OEM machine builders
• Maintenance departments
• Electrical contractors
• System integrators
• PLC and automation panel builders

FAQ

1. What is Teflon Teflon Shielded Teflon RTD Cable?

Teflon Teflon Shielded Teflon RTD Cable is a special RTD sensor cable with Teflon insulation, a shielding layer, and a Teflon outer jacket. It is used for accurate temperature signal transmission in high temperature and electrically noisy environments.

2. Why is shielding used in RTD cable?

Shielding is used to reduce electromagnetic interference and radio frequency interference. This helps protect the RTD signal from electrical noise generated by motors, VFDs, control panels, and heavy machinery.

3. Where is Teflon Shielded RTD Cable used?

It is used in RTD temperature sensor wiring for control panels, PLC systems, temperature transmitters, indicators, industrial machinery, chemical plants, pharmaceutical plants, furnaces, ovens, and automation systems.

4. Why is Teflon insulation used in this cable?

Teflon insulation is used because it provides high temperature resistance, chemical resistance, moisture resistance, and excellent electrical insulation. It helps the cable perform reliably in harsh environments.

5. Is Teflon Shielded RTD Cable suitable for high temperature applications?

Yes, Teflon Shielded RTD Cable is suitable for high temperature applications where standard PVC or rubber cables may fail.

6. Can this cable be used with PT100 RTD sensors?

Yes, this cable can be used with PT100 RTD sensors and other RTD temperature sensors, depending on the wiring configuration and application requirement.

7. What is the benefit of the outer Teflon jacket?

The outer Teflon jacket provides additional protection against chemicals, heat, moisture, abrasion, and industrial working conditions. It increases the overall life of the cable.

8. Is this cable useful near motors and VFD panels?

Yes, the shielding layer makes this cable useful near motors, VFD panels, control panels, and other areas where electrical noise can affect RTD signal accuracy.

9. Which industries commonly use Teflon Shielded RTD Cable?

It is commonly used in chemical, pharmaceutical, food processing, aerospace, medical equipment, industrial automation, furnace, oven, packaging, and process industries.

10. Why should buyers choose Teflon Shielded RTD Cable?

Buyers should choose Teflon Shielded RTD Cable when they need a heat resistant, chemical resistant, low noise, and durable cable for accurate RTD temperature measurement in industrial applications.
