A. Product Overview

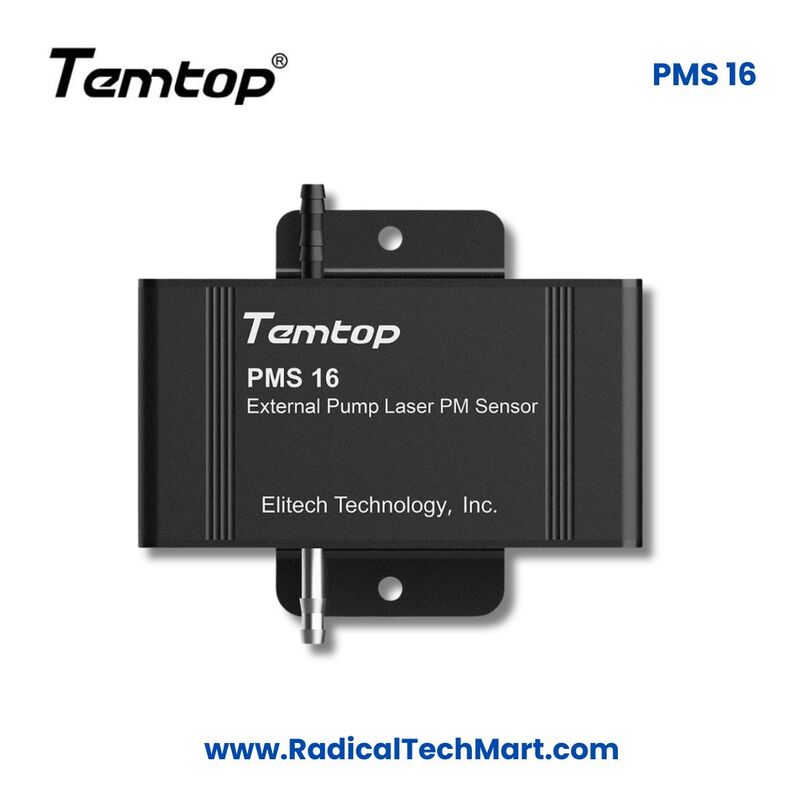

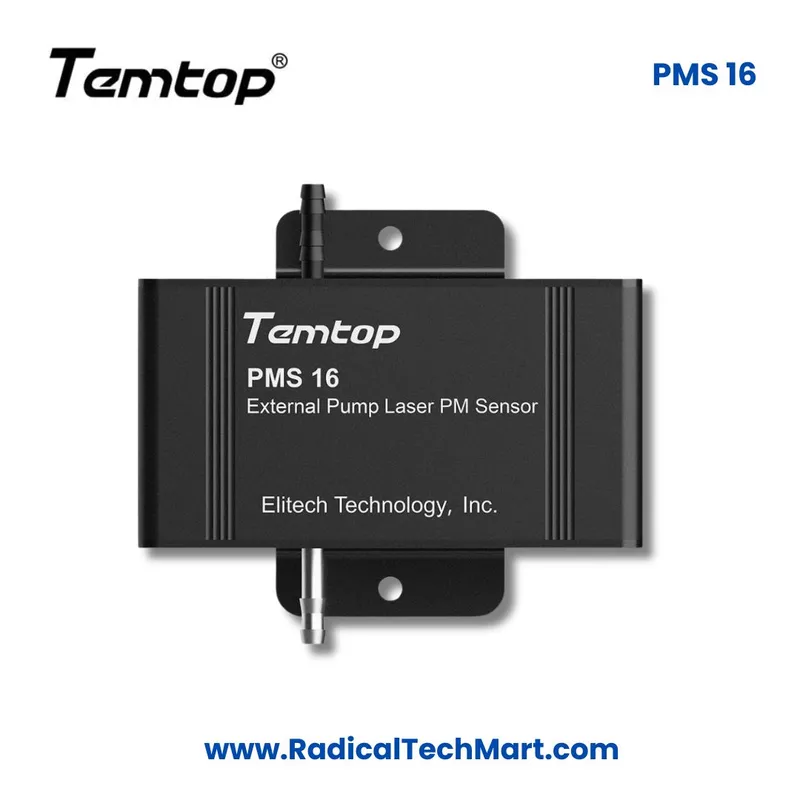

Temtop PMS16 is an external pump laser particle sensor designed to provide solutions for online monitoring of atmospheric environments. It is widely used in micro air monitoring stations, dust monitoring systems, oil-smoke monitoring, and other air monitoring systems.

The sensor uses an all-metal optical-mechanical structure and allows users to install an external pump with a flow of 1.1 L/min, which can also be customized. It is compact in size and suitable for integration into multiple devices, with a laser life exceeding 20,000 hours.

B. Working Principle

The PMS16 operates based on the MIE scattering principle to monitor particle concentration.

When air passes through the light collection chamber, particles scatter light from the beam. The photoelectric collection unit converts the scattered light into voltage pulse signals, which are then converted into digital signals after pre-amplification and analog-to-digital conversion.

• The number of voltage pulses represents the number of particles
• The amplitude of pulses represents the particle size

After calibration using standard substances, the sensor determines the particle concentration in the environment.

C. Why It Is Used

The PMS16 is used for monitoring particulate matter concentration in atmospheric environments where online and continuous measurement is required.

It is applied in:

• Micro air monitoring stations
• Dust monitoring systems
• Oil-smoke monitoring systems
• General air monitoring systems

The use of an external pump allows flexible airflow control depending on application requirements.

D. Suitable Buyers

Based on the applications and design mentioned in the document, PMS16 is suitable for:

• System integrators developing air monitoring systems
• Manufacturers of environmental monitoring equipment
• Users requiring dust and oil-smoke monitoring solutions
• Developers of micro air monitoring stations

E. FAQ (SEO-Optimized, PDF-Based)

1. What parameters does PMS16 measure?

The PMS16 measures PM1.0, PM2.5, PM10, and TSP particle concentrations.

2. What is the measurement range of PMS16?

The measurement range is 0–50000 μg/m³ (0–50 mg/m³).

3. What is the working principle of PMS16?

It operates using the MIE scattering principle, where scattered light from particles is converted into electrical signals and processed to determine particle concentration.

4. Does PMS16 include a pump?

No, the PMS16 requires an external pump, which can be installed by the user with a typical flow of 1.1 L/min.

5. What is the accuracy of the sensor?

• PM1.0 and PM2.5: ±10 μg/m³ (0–100 μg/m³), ±10% above 100 μg/m³
• PM10: ±15 μg/m³ (0–100 μg/m³), ±15% above 100 μg/m³
• TSP: ±20 μg/m³ (0–100 μg/m³), ±20% above 100 μg/m³

6. What is the flow rate requirement?

The sensor requires an external airflow of approximately 1.1 L/min.

7. What is the power requirement?

The device operates at 5V DC power supply.

8. What communication interface does PMS16 support?

It supports TTL communication using Modbus RTU protocol.

9. What is the resolution of the sensor?

The resolving power is 1 μg/m³.

10. How should PMS16 be installed for accurate results?

The air inlet should be connected to an external probe with a hose length controlled within 30 cm to ensure accurate sampling.
