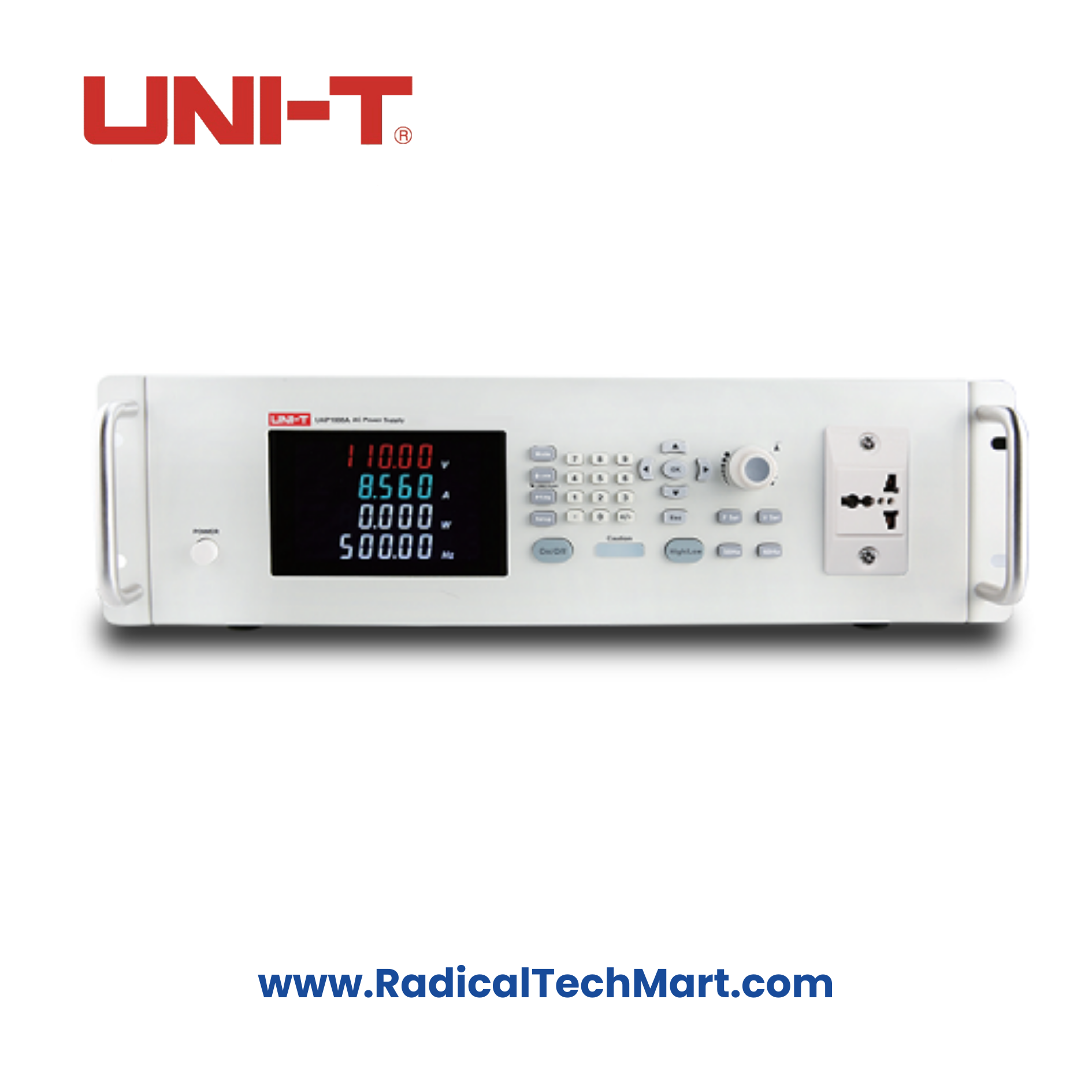

UNI-T UAP500A Series AC Power Source
UNI-T UAP500A is a high-precision 1000VA AC power source with advanced DDS technology, adjustable voltage, frequency, and intelligent PC monitoring.
Customize
Share :
Product Summary:
The UNI-T UAP500A Series AC Power Source UAP500A Series AC Power Source delivers 1000VA of stabilized AC output, ideal for precision testing and power simulations. It offers digitally adjustable voltage (0–300V), frequency (45–250Hz), and includes advanced SPWM waveform generation with RS232C communication for seamless automation and control.
Key Features:
Output voltage range: 0–150V / 0–300V (Auto switch)
Output frequency: 45–250Hz, adjustable in 0.01Hz steps
High-accuracy DDS waveform synthesis
Load stability within 1%, THD ≤ 3%
RS232C communication interface
Digital key input for voltage, frequency, and current
Real-time display: Voltage, Current, Frequency, Power, PF
9 programmable memory groups (M1~M9)
One-touch switching between high/low voltage modes
Intelligent PC monitoring system
Output voltage range: 0–150V / 0–300V (Auto switch)
Output frequency: 45–250Hz, adjustable in 0.01Hz steps
High-accuracy DDS waveform synthesis
Load stability within 1%, THD ≤ 3%
RS232C communication interface
Digital key input for voltage, frequency, and current
Real-time display: Voltage, Current, Frequency, Power, PF
9 programmable memory groups (M1~M9)
One-touch switching between high/low voltage modes
Intelligent PC monitoring system
Application:
Electrical/electronic equipment testing
R&D laboratories
Industrial production lines
Calibration and quality assurance
Inverter & UPS testing
Electrical/electronic equipment testing
R&D laboratories
Industrial production lines
Calibration and quality assurance
Inverter & UPS testing
Product Benefits:
Accurate output with high frequency and voltage resolution
Protection features ensure equipment safety
Simplifies testing with programmable memory and digital controls
Real-time monitoring improves process control
Ideal for automation and lab-grade applications
Accurate output with high frequency and voltage resolution
Protection features ensure equipment safety
Simplifies testing with programmable memory and digital controls
Real-time monitoring improves process control
Ideal for automation and lab-grade applications
FAQs:
Q1: What type of waveform does the UAP500A output?
A1: It uses SPWM technology to generate a high-quality sinusoidal waveform with less than 3% THD under pure resistive load.
Q2: Can the voltage and frequency be precisely controlled?
A2: Yes, voltage can be adjusted in 0.01V steps and frequency in 0.01Hz steps for high-precision applications.
Q3: Is there data communication support for automation?
A3: Yes, it features an RS232C communication interface for integration with intelligent PC monitoring systems.
Q1: What type of waveform does the UAP500A output?
A1: It uses SPWM technology to generate a high-quality sinusoidal waveform with less than 3% THD under pure resistive load.
Q2: Can the voltage and frequency be precisely controlled?
A2: Yes, voltage can be adjusted in 0.01V steps and frequency in 0.01Hz steps for high-precision applications.
Q3: Is there data communication support for automation?
A3: Yes, it features an RS232C communication interface for integration with intelligent PC monitoring systems.
