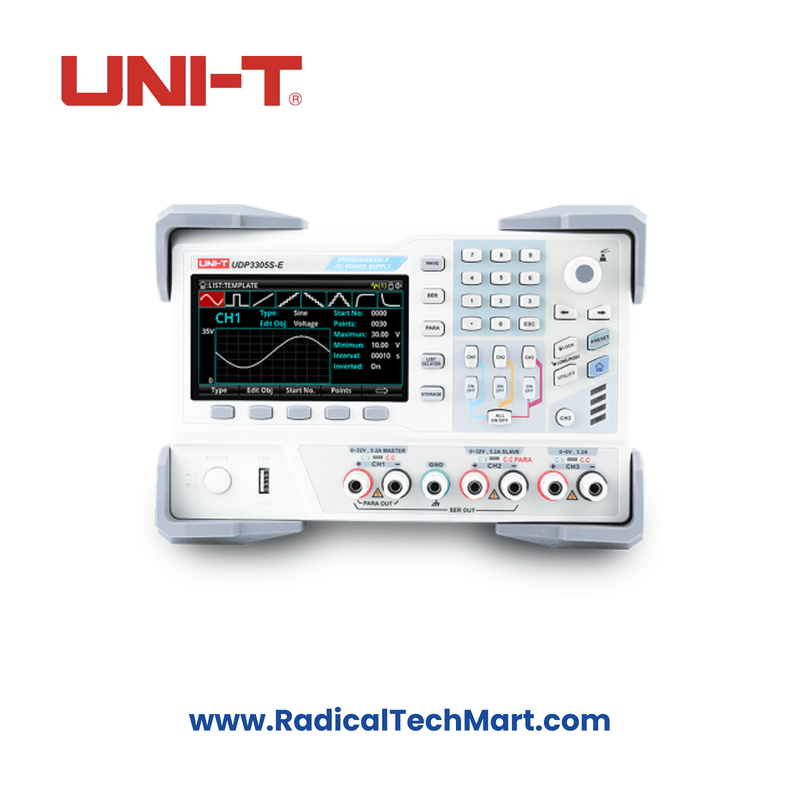

UNI-T UDP3305S-E 3-CH Output Programmable DC Power Supply

Product Summary:
The UNI-T UDP3305S-E is a 3-channel programmable DC power supply (with an additional fixed 5V USB output) offering up to 348W total power output. Designed for precision, it features a 4.3-inch LCD display, list/delay waveform programming, and remote control capabilities via LAN, USB, and RS232. Ideal for R&D, labs, production testing, and electronics development.

Key Features:

• 4-channel output: CH1/CH2 (032V/5A), CH3 (06V/3A), CH4 (5V/2A USB)

• Total output power: 348W

• 4.3" high-definition LCD screen

• Built-in waveform display

• Series/Parallel mode with one-key operation

• List and Delayer function with up to 2048 data sets

• Rich interface: USB Device, USB Host, RS-232, LAN, Digital I/O

• Calibration and conformity report included

• Resolution: 10mV/1mA with high setting accuracy



Applications:

• R&D laboratories and prototyping

• Industrial electronic testing

• Educational electronics labs

• Automated production testing

• PCB circuit aging and durability tests



Product Benefits:

• Simplified multi-channel control with series/parallel modes

• Remote control via software enhances automation

• Real-time waveform monitoring for better diagnostics

• Reliable for continuous, long-duration testing

• LCD interface makes operations intuitive and fast



FAQs:

Q1. What makes UDP3305S-E suitable for electronics testing?
A1. It offers multiple programmable outputs, waveform display, high accuracy, and rich connectivity options ideal for circuit and product testing.

Q2. Can I operate this power supply remotely?
A2. Yes, it supports USB, RS-232, LAN, and Digital I/O for remote operation using compatible software.

Q3. Does the power supply include calibration certification?
A3. Yes, the product comes with a conformity and calibration report from the authorized distributor.
