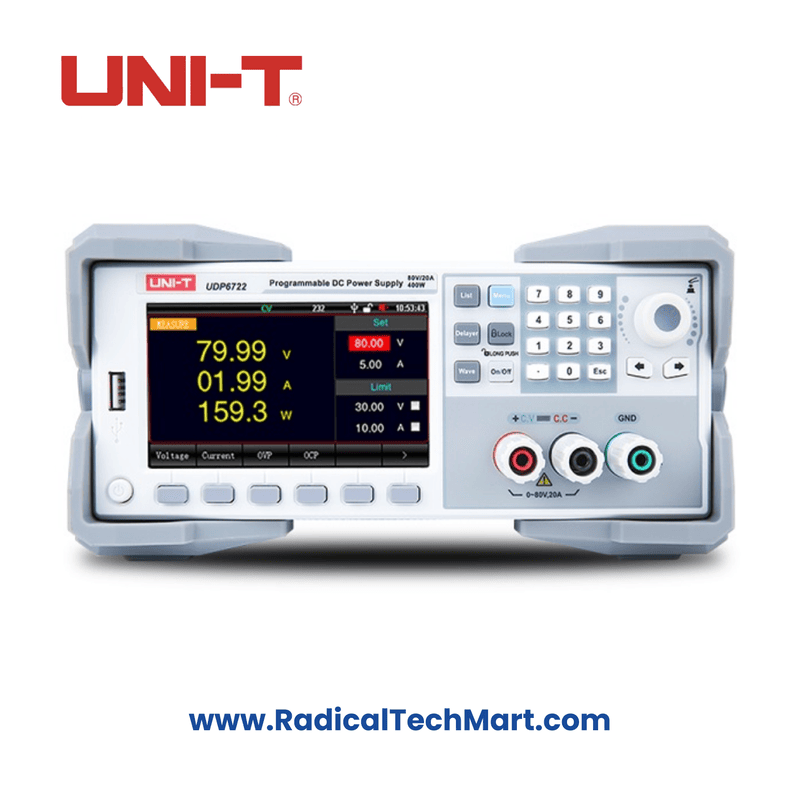

UNI-T UDP6722 Programmable DC Power Supply- 80V, 20A

UDP6722 Programmable DC Power Supply Overview

The UDP6722 is a versatile and compact programmable DC power supply, ideal for a range of applications such as automatic test systems, product development, laboratory experiments, teaching, and electronics repair. It combines powerful functions with user-friendly features, ensuring high performance and precision.

Key Features

• Wide Range Output: Offers an output of up to 80V, 20A, and 400W.
• Display: Equipped with a 4.3-inch TFT-LCD screen for intuitive parameter display and quick operation.
• Precision and Stability: High precision with low ripple ensures stable performance.
• Protection Features: Includes Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP).
• Advanced Functions:
  • Remote compensation up to 1V.
  • List and delay functions to simulate various load conditions.
  • Real-time display of voltage, current, and power waveforms.
• Fan Control: Intelligent fan adjustment for optimal cooling and noise reduction.
• Remote Operation: Multiple communication interfaces including RS232, RS485, LAN, USB Host, and USB Device.
• Protocol Support: Compatible with SCPI and MODBUS protocols.
• Software Integration: Host computer software enables remote operation and monitoring.

Specifications

• Output Rating: Voltage 0-80V, Current 0-20A, Power 400W.
• Load Regulation:
  • Voltage: <0.01% + 10mV.
  • Current: <0.1% + 5mA.
• Line Regulation:
  • Voltage: <0.01% + 2.5mV.
  • Current: <0.1% + 2.5mA.
• Programming Accuracy:
  • Voltage: <0.01% + 20mV.
  • Current: <0.1% + 10mA.
• Readback Accuracy:
  • Voltage: <0.01% + 20mV.
  • Current: <0.1% + 20mA.
• Ripple:
  • Voltage: <50mVrms.
  • Current: <15mArms.
• Input Power: AC 220V ±10%.
• Dimensions and Weight: 214mm × 88mm × 393mm; Net weight 4.65 kg.

Applications

The UDP6722 is suitable for:

• Automatic test systems.
• Product development and debugging.
• Laboratory experiments.
• Teaching demonstrations.
• Mobile phone and home appliance repair.

Warranty

The product warranty is provided as per the brand’s policy.
