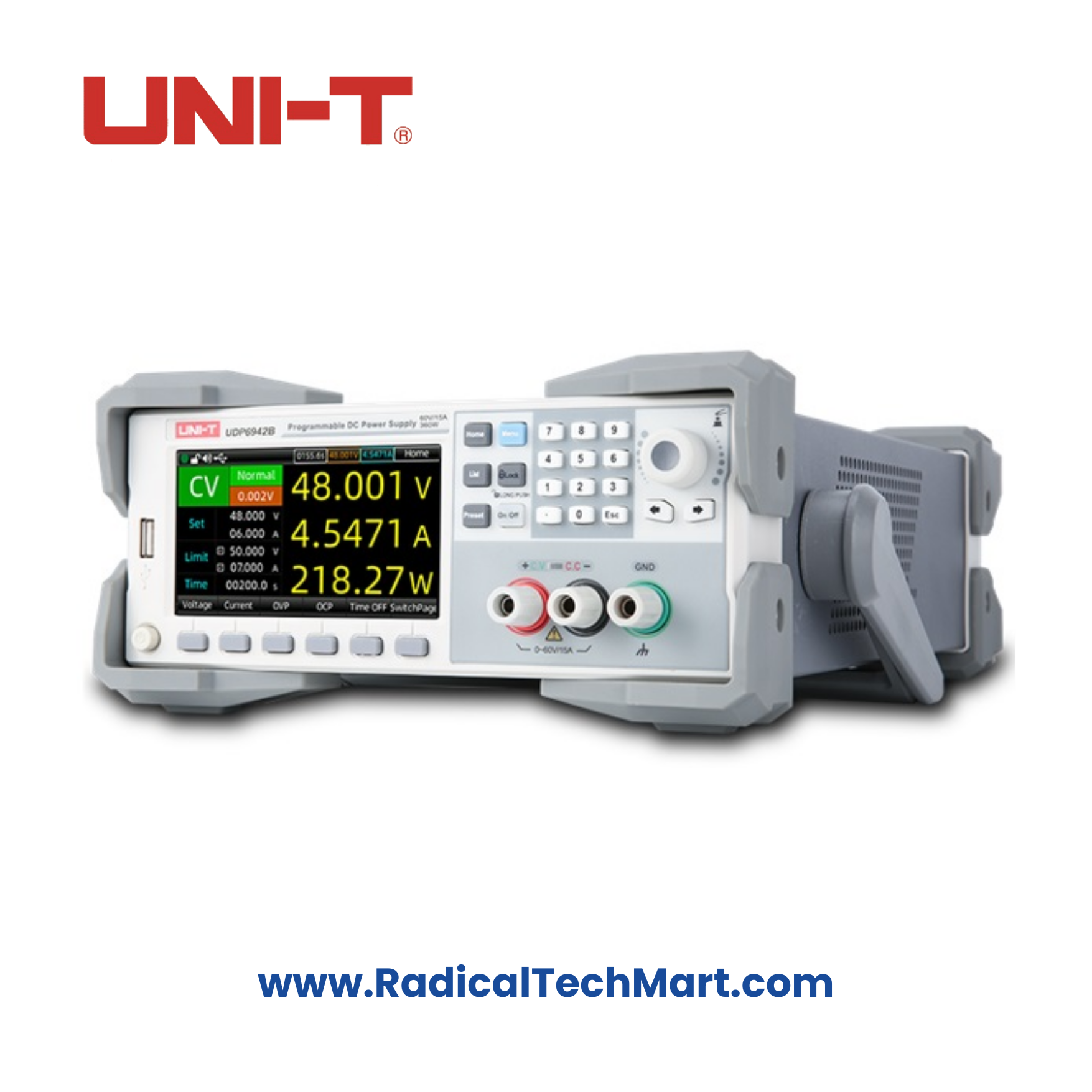

UNI-T UDP6953B Programmable DC Power Supply- 150V/10A
The UDP6900 series are programmable DC power supplies with a single output, designed to provide a wide range of voltage and current combinations under fixed power. These power supplies are ideal for testing two types of devices under different conditions, such as high voltage and low current or high current and low voltage, offering significant cost and space savings. The UDP6900B series features multiple communication interfaces, including RS232, RS485, LAN, USB, and analog, and supports the SCPI protocol, making it easy to integrate into remote control systems, industrial PLC controls, and intelligent test platforms. These power supplies are commonly used in various testing applications, including DC/DC power modules, battery charging, and sensors.
Key features include:
- DC Voltage: 0–150V
- DC Current: 0–10A
- DC Power: 600W
- Type: Switching
- Resolution: 1mV/0.1mA
- Channels: Single output channel
- Accuracy: High accuracy with low ripple and noise
- Protection: Includes Over Voltage Protection (OVP) and Over Current Protection (OCP)
- User Interface: Allows voltage and current adjustments via numeric keyboard and encoder knob
- Programmability: Supports SCPI, Multi-SCPI, or Modbus RTU protocols for control
- Interfaces: RS232 & RS485 communication, LAN port with web remote control, USB host and device
- Rack Mountable: Both front and rear panel connections
- Memory: 18x8 group memory for saving and loading settings
- Output Control: Adjustable output time (0.1–99999.9 seconds) and slope control for voltage and current
- Digital Voltmeter: Built-in 4 ½ digit voltmeter for external measurements
- Remote Sensing: Minimizes voltage drop due to long cables
- External Controls: Analog and digital control options
- Energy Efficiency: Intelligent fan control for energy savings and low heat generation
- Display: 4.3” TFT true-color LCD, showing set and output voltage and current with adjustable backlight
- Input Voltage: Supports 100–240V AC input range
