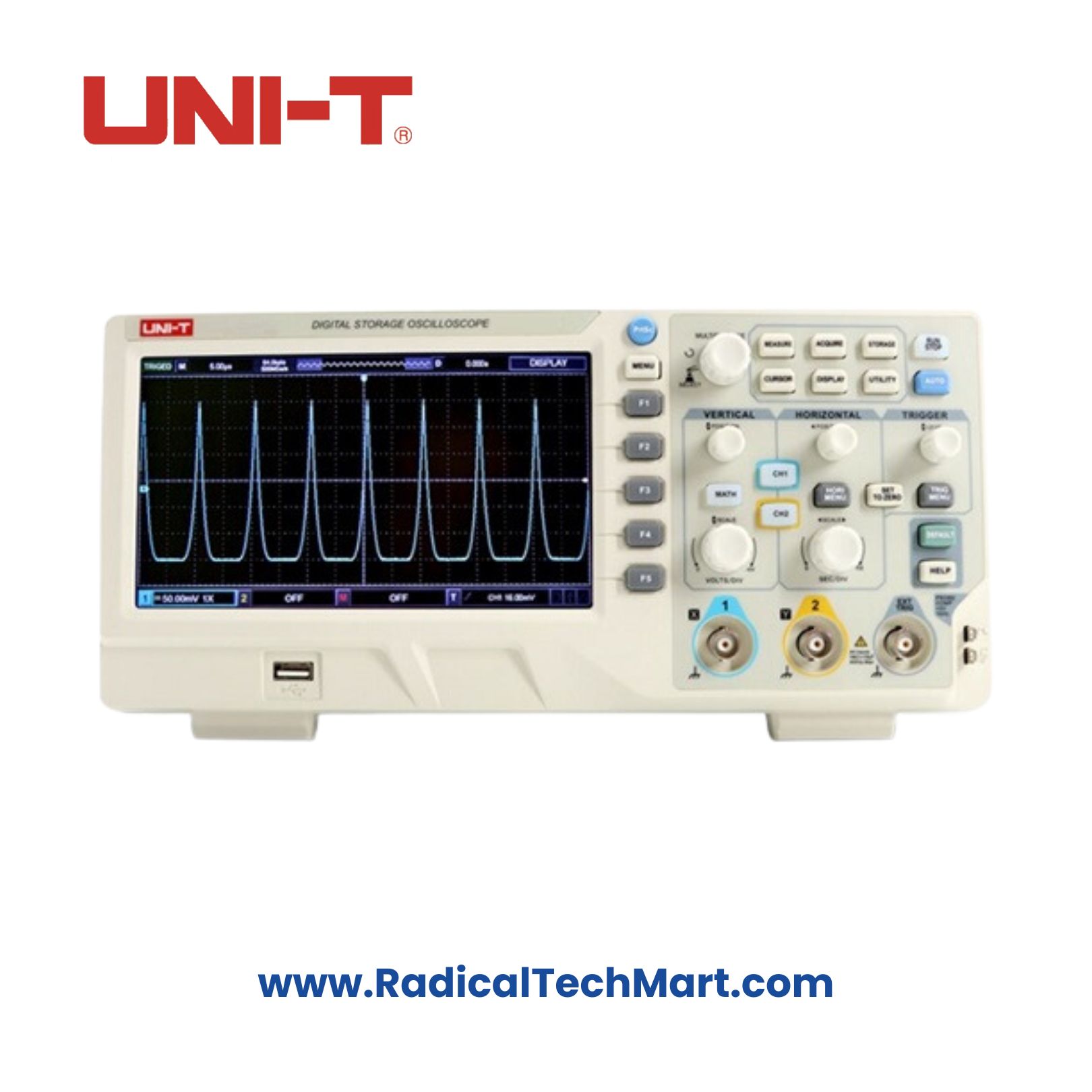

UNI-T UPO1102CS Oscilloscope 2 Channel,100MHz

The UPO1102CS is a multi-function, cost-effective digital phosphor oscilloscope designed to provide advanced features and superior performance. It utilizes parallel digital signal processing technology, significantly enhancing data processing speed and waveform capture rate. The oscilloscope's Ultra Phosphor Technology allows it to display the cumulative effect of the tested signal as a multi-layered afterglow, offering a unique representation of the signal's amplitude, time, and intensity.

Key Features:

• Bandwidth: 100 MHz
• Channels: 2
• Real-Time Sample Rate: 1 GSa/s
• Maximum Memory Depth: 56 Mpts
• Waveform Capture Rate: 500,000 wfms/s

Additional Capabilities:

• Triggering Support: RS232, I2C, SPI, CAN, and LIN
• Hardware Decoding (Optional): RS232, I2C, SPI, CAN, and LIN
• Vertical Scale: 1 mV/div to 20 V/div
• Low Background Noise: <100 μVrms
• FFT Function: 1M points enhanced FFT with frequency setting, waterfall diagram, detection setting, and marker measurement.
• Automatic Measurements: 36 types of waveform parameters can be automatically measured.
• Rich Trigger Functions: Includes edge, pulse width, video, slope, runt, overshoot, delay, timeout, duration, setup and hold, Nth edge, and pattern trigger.
• Dual-Channel Independent Trigger Fluorescence Display: Multi-scopes support.
• 7-Bit Hardware Frequency Counter: Independent for each channel.
• True RMS Measurement: Dual-channel independent AC and DC true RMS via DVM.
• Waveform Arithmetic Functions: Supports FFT, addition, subtraction, multiplication, division, digital filtering, logic operations, and advanced operations.
• Interfaces: Includes USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail).
• Programmable Instrument Control: SCPI standard commands supported.
• Web Access and Control: Built-in support for remote control and monitoring via web interface.
• Display: 7" WVGA (800 × 480) TFT LCD.

Warranty:

• 3 Years
