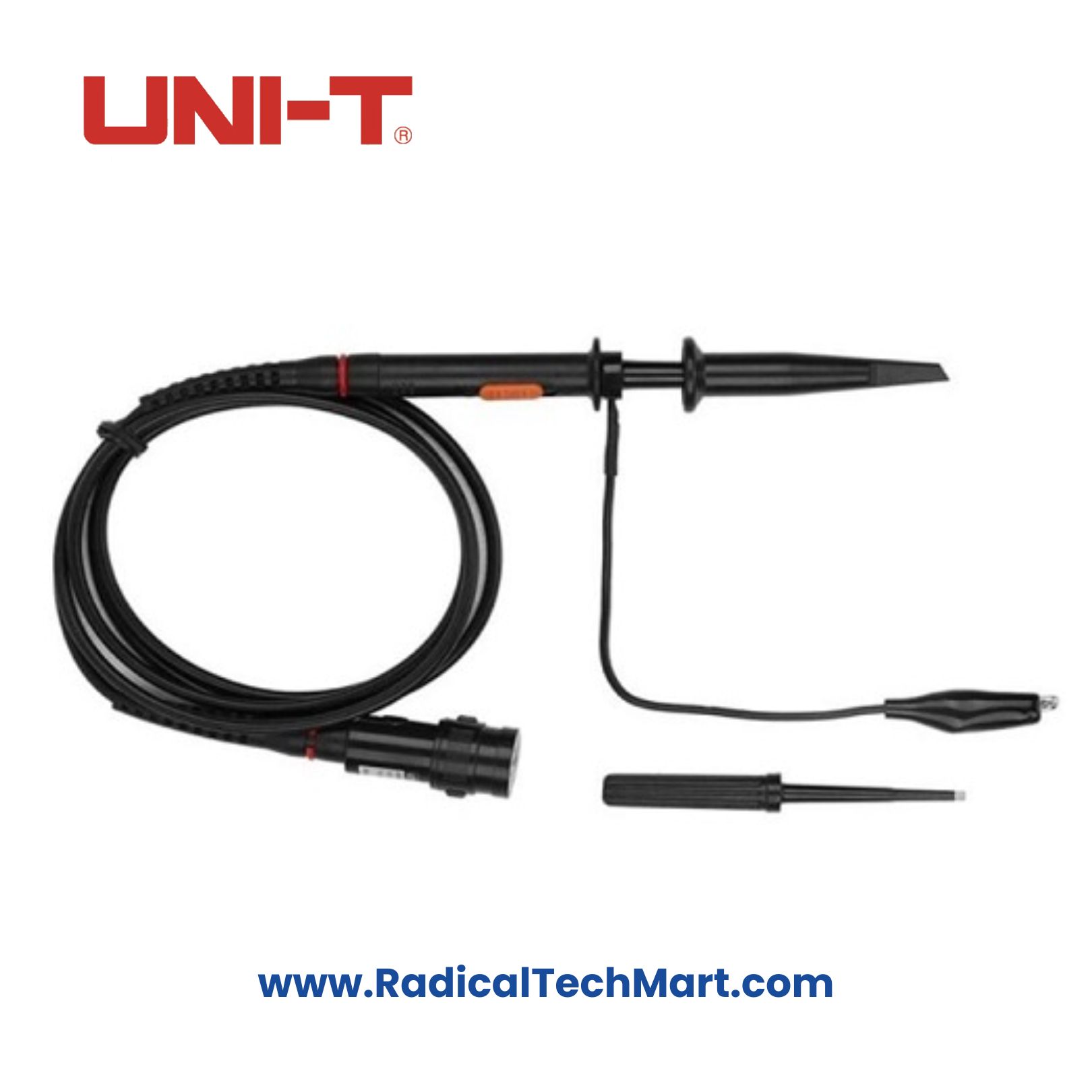

UNI-T UT-P05 Passive Oscilloscope Probe- 200 Mhz
High-precision 200 MHz passive oscilloscope probe with switchable attenuation for accurate signal analysis.
Product Summary:
The UNI-T UT-P05 Passive Oscilloscope Probe is designed for precision signal analysis, offering 200 MHz bandwidth with selectable 1:1/10:1 attenuation for versatile use in labs, fieldwork, and educational environments.
Key Features:
200 MHz Bandwidth: Accurate measurement of analog and pulse waveforms.
Switchable Attenuation (1:1/10:1): Direct or amplified signal observation for enhanced flexibility.
Durable Construction: Built to withstand rigorous daily use in lab or field settings.
User-Friendly Design: BNC connector with spring-loaded, gold-plated probe tip for secure connections and optimal signal integrity.
Compensation Adjustment: Fine-tuning for precise measurements.
Applications:
Circuit Debugging: Quickly troubleshoot signal issues for optimized circuit performance.
Frequency Analysis: Characterize and analyze waveform frequencies and timing.
Rise and Fall Time Measurement: Measure signal transition speeds accurately.
Electronics Education: Ideal for students, hobbyists, and educators in electronic experimentation.
Product Benefits:
Ensures precise and reliable signal analysis.
Flexible attenuation settings for varied testing needs.
Durable and long-lasting build for daily professional or educational use.
Easy setup with secure connections, minimizing signal interference.
Suitable for a wide range of electronic applications.
FAQs:
Q1: What bandwidth does the UNI-T UT-P05 support?
A1: It supports a bandwidth of 200 MHz for accurate signal testing.
Q2: Can I switch between attenuation settings?
A2: Yes, the probe has selectable 1:1 and 10:1 attenuation for direct or amplified measurements.
Q3: Is this probe compatible with all oscilloscopes?
A3: It uses a standard BNC connector, making it compatible with most oscilloscopes for signal analysis.
