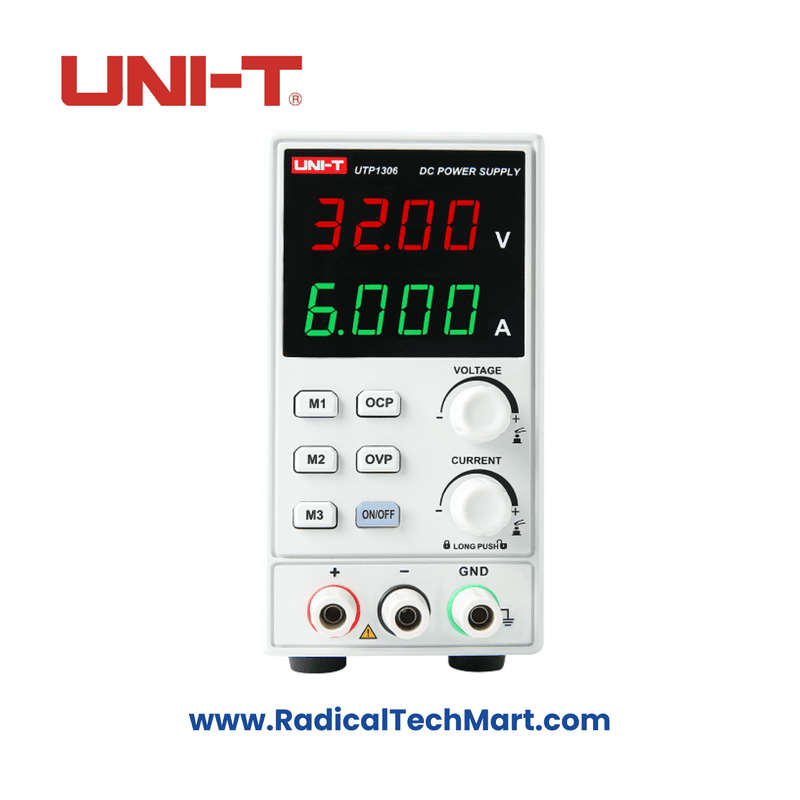

UNI-T UTP1306S DC Power Supply- 32V, 6A

The UTP1306 S(SMPS) is an economical switching DC power supply with a single output, offering the following features and specifications:

• Rated Output Voltage: 0~32V
• Rated Output Current: 0~6A
• Output Power: 192W
• Voltage/Current Display Resolution: 10mV/1mA
• Four-Digit Voltage and Current Display: Provides clear and precise readings.
• Protection Features: Includes overvoltage, overcurrent, and overtemperature protection for safe operation.
• Memory Function: Three groups of one-button memory values for quick settings recall.
• Adjustable Protection Settings: Can set flow and overvoltage protection values.
• Independent Output Switch: Offers control over the output power.
• Lockable Operation Buttons: Ensures settings are secure during use.

Additional specifications:

• Load Regulation Rate:
  • Voltage: <0.3% + 5mV
  • Current: <0.2% + 3mA
• Power Regulation Rate:
  • Voltage: <0.3% + 5mV
  • Current: <0.2% + 3mA
• Setting Resolution:
  • Voltage: 10mV
  • Current: 1mA
• Readback Resolution:
  • Voltage: 10mV
  • Current: 1mA
• Setting Accuracy (at 25°C ±5°C):
  • Voltage: <0.5% + 5mV
  • Current: <0.2% + 3mA
• Ripple and Noise (20Hz~20MHz):
  • Voltage: ≤10mVrms
  • Current: ≤2mArms
• Display Type: LED digital tube display for easy visibility.

Input Voltage: AC 220V ±10%
Frequency: 50Hz/60Hz
Dimensions: 80mm x 150mm x 230mm
Weight: 2 kg

The UTP1306 S comes with a 1-year warranty for reliable performance and peace of mind.
