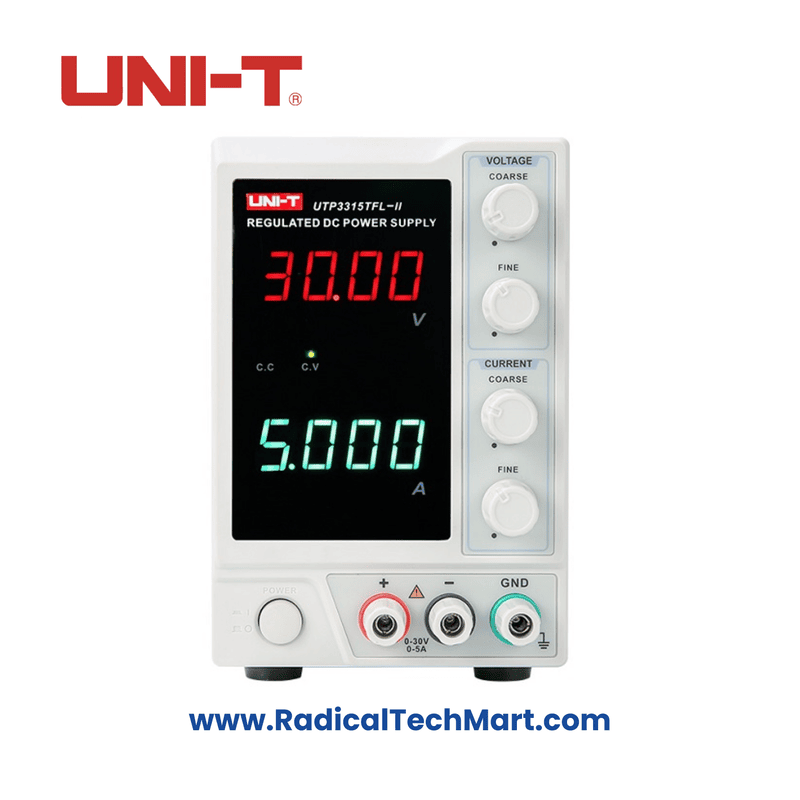

UNI-T UTP3315TFL-II DC Power Supply - 30V, 5A

Product Summary:

•  The UNI-T UTP3315TFL-II is a 150W single-channel linear DC power supply featuring 0–30V voltage and 0–5A current output. With LED dual display and current limit protection, it's designed for lab testing, electronics manufacturing, and hobbyist use.

Key Features:

• Output Voltage Range: 0–30V

• Output Current Range: 0–5A

• Power Output: 150W

• Load Regulation: CV≤0.01%+5mV, CC≤0.1%+10mA

• Ripple & Noise: ≤2mVrms

• Accuracy: Voltage <0.5%+20mV, Current <0.5%+10mA

• Display: LED dual display for voltage & current

• Auto CV/CC mode switching with limit protection

• Resolution: CV - 10mV, CC - 1mA

• Compact and rugged benchtop design

• Includes power cord and output cables

Applications:

• Electronics manufacturing & QA testing

• R&D labs and educational institutions

• Embedded systems and circuit prototyping

• Hobby electronics and DIY projects

Product Benefits:

• Precise and stable power output for sensitive electronics

• Easy-to-read LED display ensures real-time monitoring

• Built-in protection for overcurrent and voltage overload

• Affordable and reliable solution for test benches

• Lightweight and compact design saves workspace

FAQs:

Q1. What is the power capacity of the UTP3315TFL-II model?
A1. It delivers up to 150W of output power (30V, 5A).

Q2. Is this power supply suitable for continuous lab testing?
A2. Yes, with an MTBF of ≥2000hrs, it’s ideal for continuous and stable use.

Q3. Can this unit operate on both 110V and 220V input?
A3. Yes, it supports dual AC input: 110V/220V ±5%, 50/60Hz.
