UTR-1244 / UTR-2244 / UTR-4244 Multispan

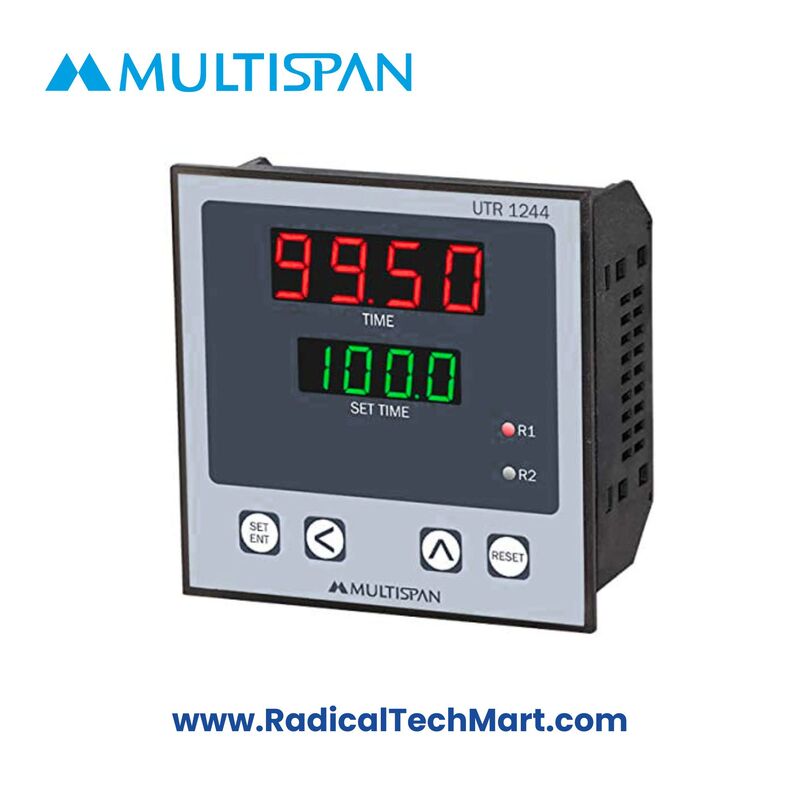

Multispan UTR-Series Universal Programmable Timers (UTR-1244 / 2244 / 4244)
The Multispan UTR Series are 96×96 mm universal programmable timers supporting forward-reverse, cyclic, sequential, and combination timer modes.
Designed for industrial automation panels requiring dual relay outputs and flexible timing logic.
Customize
Share :
The Multispan UTR Series (UTR-1244 / 2244 / 4244) are universal programmable timers designed for advanced industrial timing applications.
These timers support multiple operating modes such as Forward-Reverse, Cyclic, Sequential, and Combination timing, making them ideal for complex automation logic using a single device.
With dual C/O relay outputs, wide time ranges (seconds to hours), and support for PNP/NPN proximity inputs, the UTR series is widely used in OEM panels, machinery control, and process automation.
Key Features
96 × 96 mm panel-mount universal timer
Multiple operating modes:
Forward-Reverse Timer
Cyclic Timer
Sequential Timer
Combination Timer
Dual relay outputs (2 × 1C/O)
Wide time range selection (Sec / Min / Hour)
Supports PNP/NPN proximity, micro switch, limit switch inputs
UP/DOWN counting direction
Bright dual 7-segment LED display (PV / SV)
Front panel & terminal reset options
Rugged industrial design, Made in India
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Universal Programmable Timer |
| Series | UTR |
| Models | UTR-1244 / UTR-2244 / UTR-4244 |
| Panel Size | 96 × 96 mm |
| Panel Cut-out | 92 × 92 mm |
| Display | Upper: 4-digit 0.70” Red, Lower: 4-digit 0.50” Green |
| Supply Voltage | 100–270 VAC, 50/60 Hz |
| Power Consumption | ~4 VA @ 230 VAC |
| Input Type | PNP/NPN Proximity, Micro Switch, Limit Switch |
| Time Range | Seconds / Minutes / Hours (selectable) |
| Counting Direction | UP/DOWN |
| Output | 2 × Relay, 1C/O each |
| Relay Rating | 5 A @ 230 VAC |
| Operating Temp. | 0 to 55 °C |
| Protection | IP65 (Front panel) |
Applications
Conveyor and indexing systems
Packaging & batching machines
Forward-reverse motor control logic
Sequential process control
Cyclic ON/OFF control applications
OEM automation panels
What’s in the Box?
Multispan UTR Series Timer (model as ordered)
Panel mounting clamp
Instruction/operation manual
FAQ
Q1. What is the difference between UTR-1244, 2244, and 4244?
They belong to the same UTR series; differences are variant-level logic/configuration. Functionality and form factor remain the same.
Q2. Does this timer support cyclic and sequential modes?
Yes. It supports cyclic, sequential, forward-reverse, and combination timer modes.
Q3. How many relay outputs are available?
Two independent 1C/O relay outputs are provided.
Q4. Can proximity sensors be connected directly?
Yes. Supports PNP/NPN proximity inputs with built-in 12 V output.
Q5. Is it suitable for industrial panels?
Yes. It is a panel-mount industrial timer with IP65 front protection.
