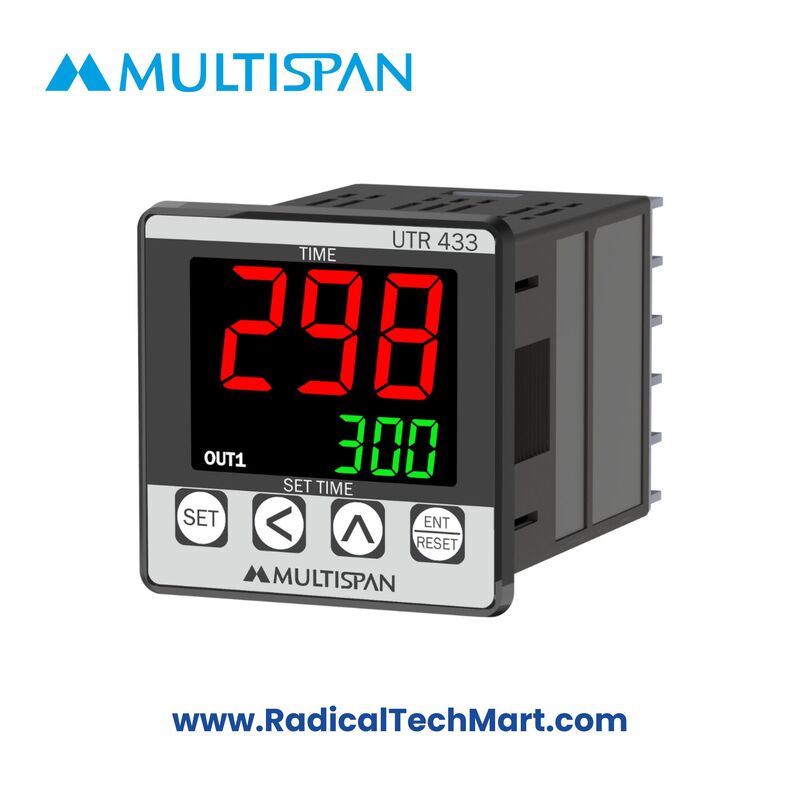

UTR-413 / UTR-433 / UTR-1033 / UTR-2033 Multispan

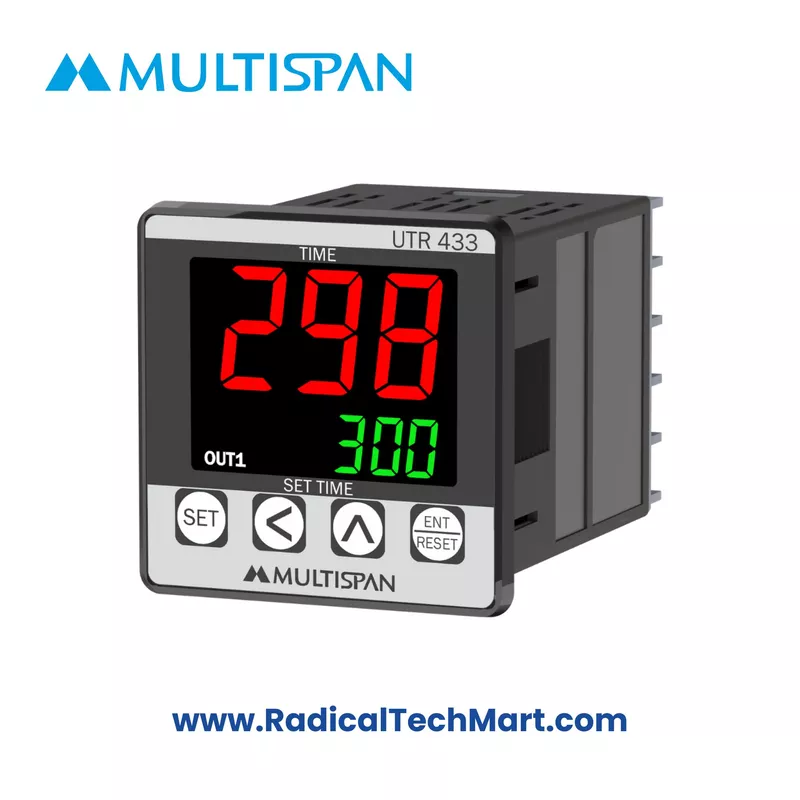

Multispan UTR Series Universal Digital Timers – UTR-413 / UTR-433 / UTR-2033 / UTR-1033
Compact, programmable digital timers with NPN/PNP sensor inputs, multiple time ranges and modes, and 2 C/O relay output for precise time control in industrial automation panels.
Download Now!!!
Customize
Share :
The Multispan UTR Series (UTR-413, UTR-433, UTR-2033, UTR-1033) are compact universal digital timers designed for accurate and flexible time control in industrial automation. With multiple timer modes, wide time ranges, sensor-friendly inputs and robust relay outputs, they integrate easily into OEM machines and control panels.
Key Features
Universal inputs: Supports NPN/PNP proximity sensors and micro switch inputs (model dependent).
Multiple time ranges: Sec/Min/Hour with ranges up to 999 units.
Multi-mode operation: Delay ON, Delay OFF, Cyclic ON/OFF, UP/DOWN count (as per model).
Clear indication: 3-digit 7-segment LED display, with dual display on selected models.
High protection: IP65 front for protection against dust and splashes when panel mounted.
Flexible reset options: Front panel key reset and terminal reset.
Robust relay output: 1 relay, 2 C/O contacts, 5A @ 230V AC.
Compact panel sizes:
48 × 48 mm (UTR-413)
72 × 72 mm (UTR-433 / UTR-2033)
96 × 96 mm (UTR-1033)
Wide operating voltage: 100–270V AC.
Low power consumption and rugged design for continuous industrial duty.
Technical Specifications
| Parameter | Specification (Series Overview) |
|---|---|
| Models | UTR-413, UTR-433, UTR-2033, UTR-1033 |
| Input Types | NPN/PNP Proximity, Micro Switch (model dependent) |
| Time Ranges | Seconds / Minutes / Hours, up to 999 |
| Timer Modes | Delay ON, Delay OFF, Cyclic ON/OFF, UP/DOWN count (per model) |
| Display | 3-digit 7-seg LED; dual display on selected models |
| Front Protection | IP65 (front when panel mounted) |
| Outputs | 1 Relay, 2 C/O contacts, 5A at 230V AC |
| Supply Voltage | 100–270V AC |
| Panel Sizes | 48×48 mm, 72×72 mm, 96×96 mm |
| Mounting | Panel mount |
| Reset Options | Front key reset + terminal reset |
| Environment | Industrial, up to 95% RH (non-condensing) |
Applications
Conveyor belt start/stop sequencing and delays
Packaging machine timing cycles
Process start/stop delays in automation systems
Textile, plastic molding and extrusion line timing
Food and pharma processing timing control
General industrial time-based interlocks and logic
What’s in the Box?
1 × Multispan UTR Series Timer (UTR-413 / 433 / 2033 / 1033 as ordered)
Panel mounting clamps
Rear terminal diagram/label
Basic instruction leaflet/configuration guide
FAQ
Q1. What is the difference between UTR-413 and UTR-433?
UTR-413 is a 48×48 mm compact timer with a basic 3-digit display, while UTR-433 is 72×72 mm and typically offers a dual display and more timer functionalities like Cyclic ON/OFF and Delay ON/OFF.
Q2. Can these timers work with both NPN and PNP sensors?
Yes. UTR-2033 and UTR-1033 support NPN/PNP proximity inputs, while UTR-413 and UTR-433 typically support NPN and micro switch inputs (as per wiring).
Q3. Are they suitable for outdoor use?
The front is IP65, but for outdoor installations, the timer should be mounted inside a sealed control panel to ensure long life.
Q4. What is the maximum time range?
Depending on the selected range, timers can count up to 999 seconds, minutes, or hours.
Q5. How many relay outputs are available?
Each unit provides 1 relay with 2 changeover (C/O) contacts rated 5A at 230V AC.
Q6. Can I reset the timer from my PLC or external pushbutton?
Yes, there is a terminal reset option, so you can reset using an external contact or PLC output, in addition to the front-panel reset key.
