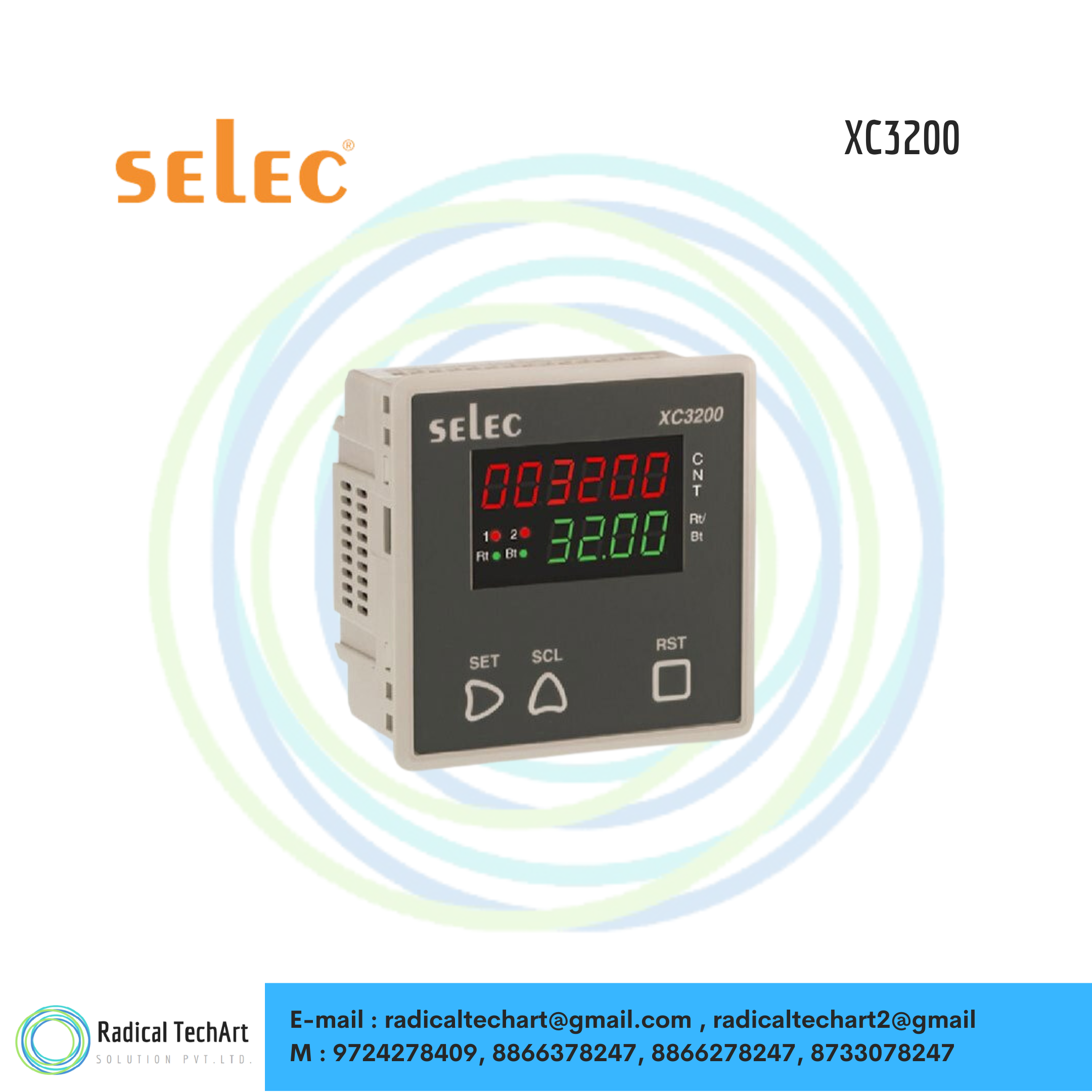

XC3200 Programmable / Preset Counters
₹2,250.00 ₹2,700.00
Download Now !!!
Product Details
Features:
- 6 digits Counter, 4 digitsRPM Indicator
- Programmable Input Scaling
- Unidirectional, Bi - directional & Quadrature mode with up / down selection
- LED Indications : Relay 1, Relay 2, Rate, Batch
- Dual Set Point
- User configurable Relay 2 operation mode
- User configurable Rate / Batch
- RS485 Communication with MODBUS RTU Protocol (Optional)
| Brand | Selec |
| Model | XC3200 |
| Display Type | LED |
| Display Configuration | 6 Digits Counter, 4 Digits RPM Indicator |
| Relay Contact | 2 C/O DPDT |
| Output Rating | 5A @230V AC |
| Operating Modes | On Delay, Interval , Auto reset, Time pulse repeat |
| Reset | Front (user selectable), Remote |
| Counting Direction | Up, Down |
| Features | Memory Retention, 2 Set Points, Programmable Input Scaling |
| Sensor type | NPN, PNP, Potential Free Contacts |
| Input Speed | a) 0 to 30Hz b) 0 to 5kHz |
| Supply Voltage | 90 to 270V AC / DC |

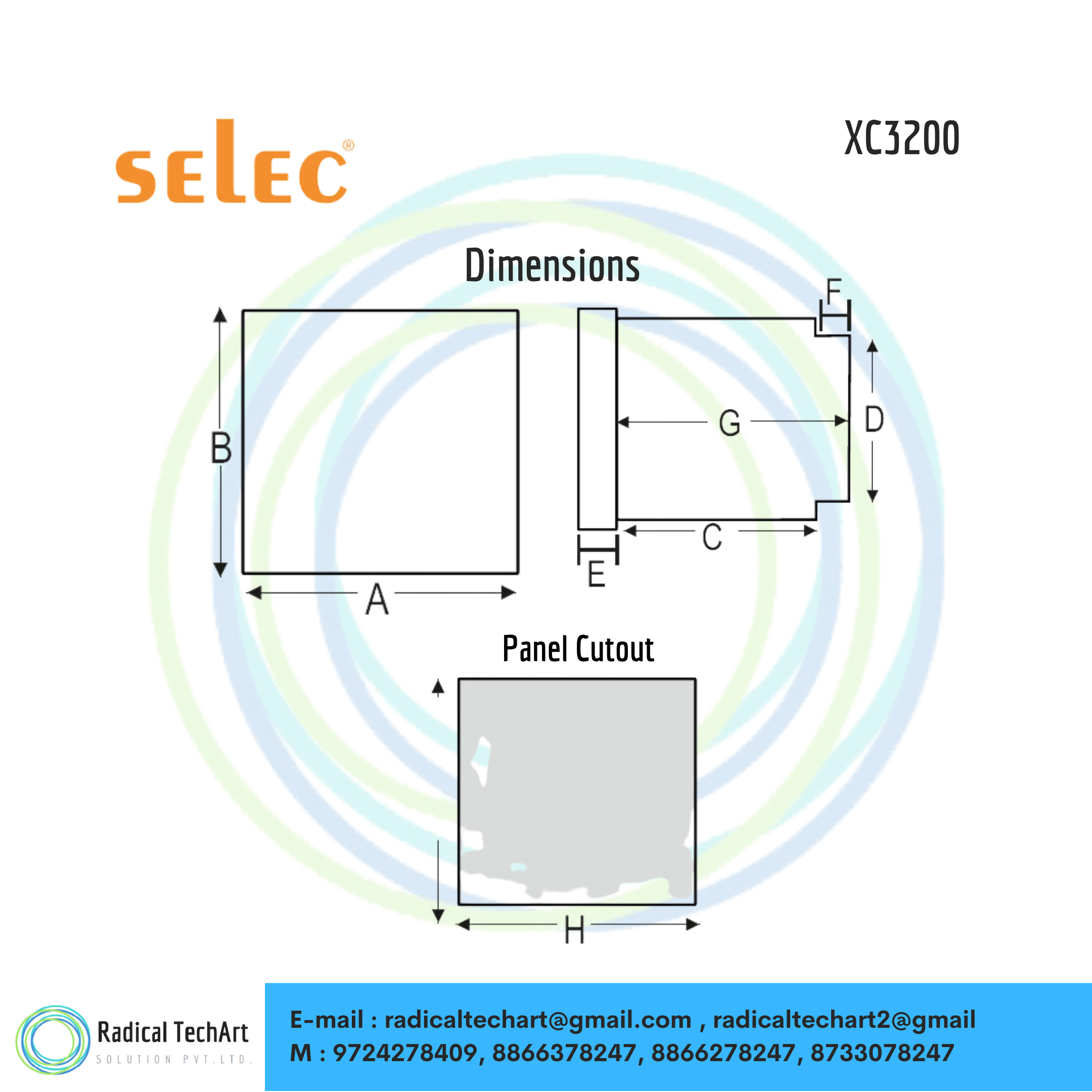

| Size | 96 x 96mm |
| Mounting Type | Panel mount |
